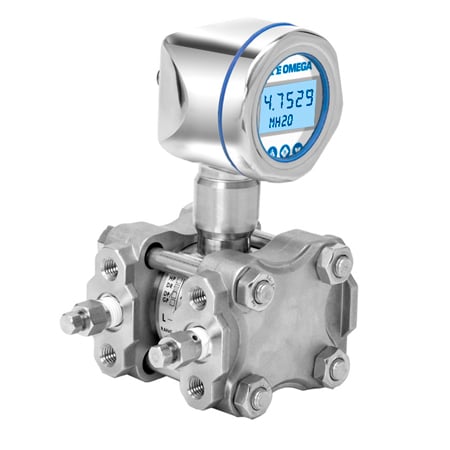

디스플레이가 장착된 범위 조정 가능 차압 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Damping Time | Electrical Connection | Electrical Output | Electrical Output Note | Enclosure Material | Enclosure Ratings | Fill Fluid | Loop Resistance, Max | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Position Effect | Power Supply | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Response Time | Stability | Stability Note | Storage Temperature, Max | Storage Temperature, Min | Supply Voltage | Thermal Effect on Span error, Max | Thermal Effect on Zero error, Max | Transmission Distance | Vibration Effect | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX3005-160WDWBI1,947,590 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.075 % | < 0.1% | Accuracy (NLHR, 20°C ± 5°C): ± 0.075TD% SPAN (Square root output accuracy is 1.5 times linear output accuracy) | Rangable with 5 digit display | 0 to 100 sec | M12 4 pin | 4 to 20 mA | 4 to 20mA Two wire, linear or square root output selectable | 316L Stainless Steel | IP67 | Silicon oil | <(U-10.5)/0.021Ω, where U is supply voltage | 316 Stainless Steel, FKM | Differential | 160 inH₂O | -160 inH₂O | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 70 °C | -20 °C | Current | Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset | 500 mW | 1/4 in | NPT Female | 120 °C | -40 °C | 200 ms | ± 0.2% | ± 0.2% 60 months | 85 °C | -40 °C | 10.5 to 55 Vdc | ± 1% absolute | ± (0.1 +0.1TD)% SPAN | up to 1000 meters | GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <± 3 mm), <0.1% URL | 3 kg | |
PX3005-1.5KDWBI2,057,550 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.075 % | < 0.1% | Accuracy (NLHR, 20°C ± 5°C): ± 0.075TD% SPAN (Square root output accuracy is 1.5 times linear output accuracy) | Rangable with 5 digit display | 0 to 100 sec | M12 4 pin | 4 to 20 mA | 4 to 20mA Two wire, linear or square root output selectable | 316L Stainless Steel | IP67 | Silicon oil | <(U-10.5)/0.021Ω, where U is supply voltage | 316 Stainless Steel, FKM | Differential | 1500 psi | -70 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 70 °C | -20 °C | Current | Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset | 500 mW | 1/4 in | NPT Female | 120 °C | -40 °C | 200 ms | ± 0.2% | ± 0.2% 60 months | 85 °C | -40 °C | 10.5 to 55 Vdc | ± 3% gage | ± (0.1 +0.1TD)% SPAN | up to 1000 meters | GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <± 3 mm), <0.1% URL | 3 kg | |
PX3005-400DWBI2,057,550 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.075 % | < 0.1% | Accuracy (NLHR, 20°C ± 5°C): ± 0.075TD% SPAN (Square root output accuracy is 1.5 times linear output accuracy) | Rangable with 5 digit display | 0 to 100 sec | M12 4 pin | 4 to 20 mA | 4 to 20mA Two wire, linear or square root output selectable | 316L Stainless Steel | IP67 | Silicon oil | <(U-10.5)/0.021Ω, where U is supply voltage | 316 Stainless Steel, FKM | Differential | 400 psi | -70 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 70 °C | -20 °C | Current | Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset | 500 mW | 1/4 in | NPT Female | 120 °C | -40 °C | 200 ms | ± 0.2% | ± 0.2% 60 months | 85 °C | -40 °C | 10.5 to 55 Vdc | ± 1% gage | ± (0.1 +0.1TD)% SPAN | up to 1000 meters | GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <± 3 mm), <0.1% URL | 3 kg | |
PX3005-1KWDWBI1,947,590 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.075 % | < 0.1% | Accuracy (NLHR, 20°C ± 5°C): ± 0.075TD% SPAN (Square root output accuracy is 1.5 times linear output accuracy) | Rangable with 5 digit display | 0 to 100 sec | M12 4 pin | 4 to 20 mA | 4 to 20mA Two wire, linear or square root output selectable | 316L Stainless Steel | IP67 | Silicon oil | <(U-10.5)/0.021Ω, where U is supply voltage | 316 Stainless Steel, FKM | Differential | 1000 inH₂O | -1000 inH₂O | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 70 °C | -20 °C | Current | Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset | 500 mW | 1/4 in | NPT Female | 120 °C | -40 °C | 200 ms | ± 0.2% | ± 0.2% 60 months | 85 °C | -40 °C | 10.5 to 55 Vdc | ± 1% gage | ± (0.1 +0.1TD)% SPAN | up to 1000 meters | GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <± 3 mm), <0.1% URL | 3 kg | |
PX3005-25WDWBI2,004,080 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.075 % | < 0.1% | Accuracy (NLHR, 20°C ± 5°C): ± 0.075TD% SPAN (Square root output accuracy is 1.5 times linear output accuracy) | Rangable with 5 digit display | 0 to 100 sec | M12 4 pin | 4 to 20 mA | 4 to 20mA Two wire, linear or square root output selectable | 316L Stainless Steel | IP67 | Silicon oil | <(U-10.5)/0.021Ω, where U is supply voltage | 316 Stainless Steel, FKM | Differential | 25 inH₂O | -25 inH₂O | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 70 °C | -20 °C | Current | Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset | 500 mW | 1/4 in | NPT Female | 120 °C | -40 °C | 200 ms | ± 0.2% | ± 0.2% 60 months | 85 °C | -40 °C | 10.5 to 55 Vdc | ± 1% absolute | ± (0.1 +0.1TD)% SPAN | up to 1000 meters | GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <± 3 mm), <0.1% URL | 3 kg | |
PX3005-150DWBI1,789,080 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.075 % | < 0.1% | Accuracy (NLHR, 20°C ± 5°C): ± 0.075TD% SPAN (Square root output accuracy is 1.5 times linear output accuracy) | Rangable with 5 digit display | 0 to 100 sec | M12 4 pin | 4 to 20 mA | 4 to 20mA Two wire, linear or square root output selectable | 316L Stainless Steel | IP67 | Silicon oil | <(U-10.5)/0.021Ω, where U is supply voltage | 316 Stainless Steel, FKM | Differential | 150 psi | -70 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | 70 °C | -20 °C | Current | Install error less than 400Pa (1.60” H2O) can be corrected by PV = 0 reset | 500 mW | 1/4 in | NPT Female | 120 °C | -40 °C | 200 ms | ± 0.2% | ± 0.2% 60 months | 85 °C | -40 °C | 10.5 to 55 Vdc | ± 1% absolute | ± (0.1 +0.1TD)% SPAN | up to 1000 meters | GB/T 1827.3/IEC61298-3 tests, 20g (5 to 2000 HZ, max <± 3 mm), <0.1% URL | 3 kg |
