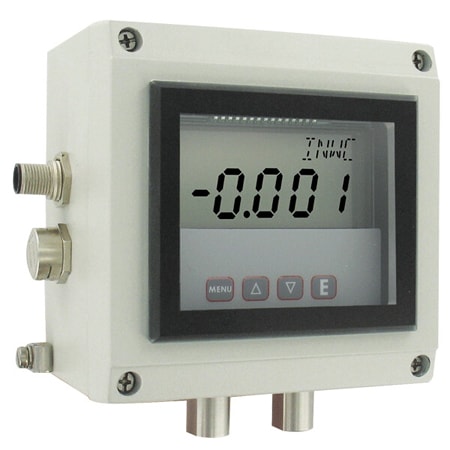

프로그래머블 차압 트랜스미터, 4-20 mA, NEMA 4X, 0.5% 정확도
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 12개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Compensated Temperature, Max | Compensated Temperature, Min | Compliance | Compliance Note | Damping Time | Display Note | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Long Term Stability | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Note | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Process Connection Size | Process Connection Type | Proof Pressure | Response Time | Span Adjustment | Supply Power Type | Supply Voltage | Thermal Effects | Thermal Effects Note | Weight | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISDP-017가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 10 inH₂O | -10 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 5 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-016가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 5 inH₂O | -5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 5 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-015가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Ceramic, Gold, Silicone, Stainless Steel | Differential | 2.5 inH₂O | -2.5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 2 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-012가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Ceramic, Gold, Silicone, Stainless Steel | Differential | 0.25 inH₂O | -0.25 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 2 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-014가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Ceramic, Gold, Silicone, Stainless Steel | Differential | 1 inH₂O | -1 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 2 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-010가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 100 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 9 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-009가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 50 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 5 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-008가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 25 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 5 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-004가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Ceramic, Gold, Silicone, Stainless Steel | Differential | 1 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 2 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-007가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 10 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 5 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-002가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Ceramic, Gold, Silicone, Stainless Steel | Differential | 0.25 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 2 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus | |
ISDP-006가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability (after 1 hour warm-up) | 60 °C | 0 °C | CE | CE: CENELEC EN 61326/55024: 2003; IEC 61000-4-2/3/4/6: 2001/2006/2004/2005; CENELEC EN 55011: 2006; 2004/108/EC EMC Directive. FM Intrinsically Safe CLI Div I GR: A, B, C, D; CLII Div I GR: E, F, G; CLIII Div I. | 1 s | 4 digit LCD 0.6" H | LCD | M12 4 pin Female | 4 to 20 mA | IP66, NEMA Type 4X | < ± 1%/year | Aluminum, Glass | Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel | Differential | 5 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical | 4 | 60 °C | 0 °C | Current | 1/8 in | NPT Female | Up to 5 psi | 250 ms | Menu Option | DC | 10 to 35 Vdc | 0.036%/°C | 0.020%/°F (0.036/°C) from 77°F (25°C) | 1.19 kg | Accessible via menus |
