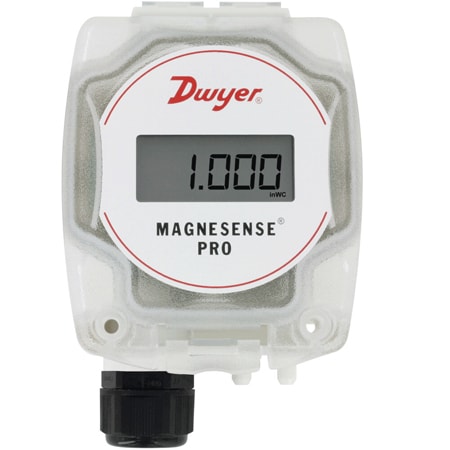

프로 차압 트랜스미터 - 32가지 범위 - NIST 옵션
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 15개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Burst Pressure | Compliance | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Long Term Stability | Loop Resistance | Material Construction Option | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Note | Mounting Orientation | Number of Wires | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Power Consumption | Process Connection Size | Process Connection Type | Proof Pressure | Response Time | Response Time Note | Span Adjustment | Supply Power Type | Supply Voltage | Weight | Wire Gauge | Zero Setting Adjustable Range | Number of Digits | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MSXP-W23-PA-LCD432,080 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 7000 Pa | -7000 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-W22-PA-LCD432,080 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 1250 Pa | -1250 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-W13-PA-LCD432,080 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 7000 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-W20-PA-LCD419,900 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 125 Pa | -125 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 3.6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-W12-PA-LCD419,900 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 1250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-W10-PA-LCD432,080 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 125 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 3.6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-U12-PA-LCD475,900 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | LCD | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 1250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount, Duct Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | 4 | |
MSXP-W22-PA329,780 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 1250 Pa | -1250 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-W23-PA329,780 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 7000 Pa | -7000 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-W20-PA336,970 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 125 Pa | -125 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 3.6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-W13-PA336,970 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 7000 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-W12-PA327,470 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 1250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-W10-PA327,470 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 125 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 3.6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-W11-PA327,470 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 3.6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - | |
MSXP-U12-PA386,230 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO | Building and Maintenance, HVAC | 6 psi Maximum | CE | N/A | 1/2 in NPS female Conduit with Screw Terminal block | 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc | IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum) | ± 1% FSO/year | Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min. | N/A | Consult Factory | Differential | 1250 Pa | 0 Pa | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases | Not Position Sensitive | Wall Mount, Duct Mount | 2, 3 | 70 °C | -20 °C | Field Selectable | Current, Voltage | max 21 mA | 1/8 in, 3/16 in, 1/4 in | Stepped Barb Fitting | Up to 6 psi | 3 s | Instantaneous (default) or 3 s (selectable) | Push Button | AC/DC | 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac | 230 g | 26 to 16 AWG | Digital push-button | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
