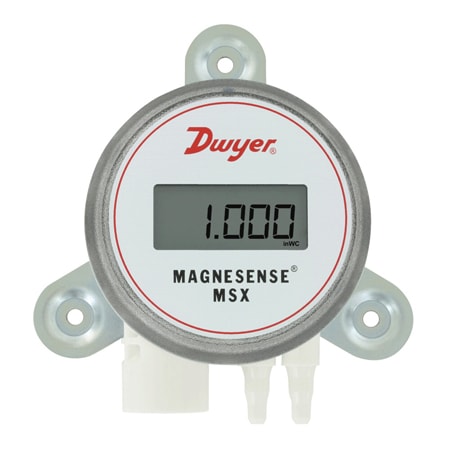

Series-MSX-Magnesense

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 24개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Applications	Burst Pressure	Compliance	Display Type	Electrical Connection	Electrical Output	Enclosure Ratings	Long Term Stability	Loop Resistance	Material Construction Option	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting Note	Mounting Orientation	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Power Consumption	Process Connection Size	Process Connection Type	Proof Pressure	Response Time	Response Time Note	Span Adjustment	Supply Power Type	Supply Voltage	Weight	Wire Gauge	Zero Setting Adjustable Range	Number of Digits
MSX-W23-IN-LCD291,430 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	28 inH₂O	-28 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W20-IN-LCD291,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	0.5 inH₂O	-0.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W22-IN-LCD291,430 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W13-IN-LCD291,430 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	28 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W12-PA-LCD291,430 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	1250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W12-IN-LCD291,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W10-IN-LCD291,430 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	0.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W11-IN-LCD291,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-U12-IN-LCD338,340 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	LCD	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount, Duct Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	4
MSX-W23-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	28 inH₂O	-28 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W22-PA200,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	1250 Pa	-1250 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W22-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W20-PA200,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	125 Pa	-125 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W21-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W20-IN200,830 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	0.5 inH₂O	-0.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W13-PA200,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	7000 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W13-IN210,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	28 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W12-PA200,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	1250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W12-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-
MSX-W11-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FSO	Building and Maintenance, HVAC	6 psi Maximum	CE	N/A	1/2 in NPS female Conduit with Screw Terminal block	4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc	IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)	± 1% FSO/year	Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.	N/A	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Not Position Sensitive	Wall Mount	2, 3	70 °C	-20 °C	Field Selectable	Current, Voltage	max 21 mA	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	3 s	Instantaneous (default) or 3 s (selectable)	Push Button	AC/DC	2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac	230 g	26 to 16 AWG	Digital push-button	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Applications

Burst Pressure

Compliance

Display Type

Electrical Connection

Electrical Output

Enclosure Ratings

Long Term Stability

Loop Resistance

Material Construction Option

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting Note

Mounting Orientation

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Power Consumption

Process Connection Size

Process Connection Type

Proof Pressure

Response Time

Response Time Note

Span Adjustment

Supply Power Type

Supply Voltage

Weight

Wire Gauge

Zero Setting Adjustable Range

Number of Digits

수량 / 장바구니

MSX-W23-IN-LCD291,430 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

28 inH₂O

-28 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W20-IN-LCD291,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

0.5 inH₂O

-0.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W22-IN-LCD291,430 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W13-IN-LCD291,430 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

28 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W12-PA-LCD291,430 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

1250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W12-IN-LCD291,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W10-IN-LCD291,430 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

0.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W11-IN-LCD291,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-U12-IN-LCD338,340 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

LCD

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount, Duct Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W23-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

28 inH₂O

-28 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W22-PA200,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

1250 Pa

-1250 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W22-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W20-PA200,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

125 Pa

-125 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W21-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W20-IN200,830 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

0.5 inH₂O

-0.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W13-PA200,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

7000 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W13-IN210,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

28 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W12-PA200,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

1250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W12-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button

MSX-W11-IN200,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FSO

Building and Maintenance, HVAC

6 psi Maximum

N/A

1/2 in NPS female Conduit with Screw Terminal block

4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc

IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)

± 1% FSO/year

Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.

N/A

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Not Position Sensitive

Wall Mount

2, 3

70 °C

-20 °C

Field Selectable

Current, Voltage

max 21 mA

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

3 s

Instantaneous (default) or 3 s (selectable)

Push Button

AC/DC

2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac

230 g

26 to 16 AWG

Digital push-button
