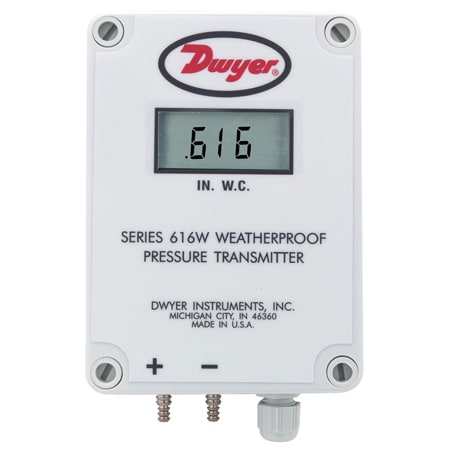

Series-616WL | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 16개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Compliance	Display Type	Electrical Connection	Electrical Output	Enclosure Ratings	Long Term Stability	Loop Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Power Consumption	Process Connection Note	Process Connection Size	Process Connection Type	Proof Pressure	Span Adjustment	Supply Power Type	Supply Voltage	Thermal Effects	Weight	Zero Setting Adjustable Range
616WL-35-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	250 Pa	-250 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-22-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	60 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-32-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	60 Pa	-60 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-14-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-12-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-2-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	0.25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-4-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj
616WL-35가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	250 Pa	-250 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-32가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	60 Pa	-60 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-22가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	60 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-25가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-14가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-12가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	0.25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-4가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	N/A	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	482 g	Digital, push-button adj
616WL-25-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.5 %	± 0.50% FS, display accuracy ± 0.5%	CE	LCD	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4X	± 1% FS/year	0 to 900 Ω max	Consult Factory	Differential	250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	2	60 °C	-17.8 °C	Current	max 38 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 4 psi	Push Button	DC	12 to 30 Vdc	0.036% FS/°C	510 g	Digital, push-button adj

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Compliance

Display Type

Electrical Connection

Electrical Output

Enclosure Ratings

Long Term Stability

Loop Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Power Consumption

Process Connection Note

Process Connection Size

Process Connection Type

Proof Pressure

Span Adjustment

Supply Power Type

Supply Voltage

Thermal Effects

Weight

Zero Setting Adjustable Range

수량 / 장바구니

616WL-35-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

250 Pa

-250 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-22-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

60 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-32-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

60 Pa

-60 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-14-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-12-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-2-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

0.25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-4-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj

616WL-35가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

250 Pa

-250 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-32가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

60 Pa

-60 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-22가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

60 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-25가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-14가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-12가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-2가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

0.25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-4가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

N/A

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

482 g

Digital, push-button adj

616WL-25-LCD가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.5 %

± 0.50% FS, display accuracy ± 0.5%

LCD

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4X

± 1% FS/year

0 to 900 Ω max

Consult Factory

Differential

250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

60 °C

-17.8 °C

Current

max 38 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3.12 and 4.76 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 4 psi

Push Button

12 to 30 Vdc

0.036% FS/°C

510 g

Digital, push-button adj
