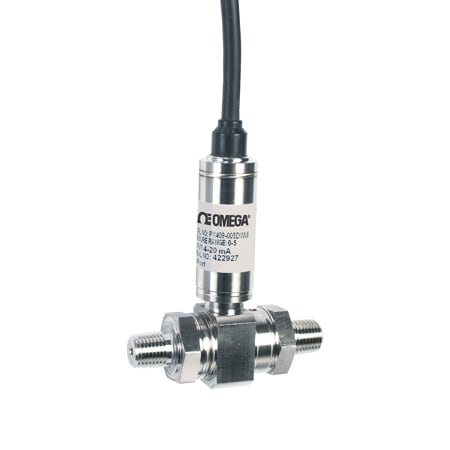

고정밀 오일 충전 습식/건식 및 습식/습식 차압 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 586개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Bandwidth | Cable Length | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Insulation Resistance | Line/Static Pressure | Loop Resistance, Max | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Negative Side differentional compatable fluids or gasses | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Positive Side differential wetted materials | Pressure Cycles | Process Connection Size | Process Connection Type | Proof Pressure | Proof Pressure Note | Response Time | Shock | Span Setting Adjustable Range | Stability | Stability Note | Supply Voltage | Vibration | Weight | Zero/Balance Error | Zero/Balance Error Note | Current Draw | Input Resistance | Output Resistance | Mating Connector | Supply Power Note | Series ID | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PXM409-010BDWUI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | - | - | < 0.1% | - | - | DC to 1 kHz | 2 m | - | - | - | - | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | - | - | Any, Clean dry air / inert gas, Clean process / cooling water, Corrosive chemicals / acids / bases, Fuel gases, HVAC / room air, Hydraulic fluids, Inert / non-reactive gases, Liquids, Oils / lubricants, Organic solvents, Steam, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Water, Water-based fluids | - | - | - | - | 316L stainless steel | 1 million, minimum | 1/4 in | - | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | PX409-DIF | |
PX419-1.0KDWU10V-XL가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.03 % | < 0.1% | ± 0.03% linearity, ± 0.05% for combined linearity, hysteresis and repeatability Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff ± 0.05% with ± 0.03% non-linearity error | DC to 1 kHz | 2 m | 85 °C | -29 °C | DIN 43650 C (solenoid valve) | 0 to 10 V | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 1000 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | 121 °C | -45 °C | Voltage | 316L stainless steel | 1 million, minimum | 1/4 in | NPT Male | 3x Full Scale up to 3000 psi | 3 times range | <1 ms | 50 g, 11 ms half-sine | ± 0.5% typical (1% maximum) | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 15 to 30 Vdc | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | ± 0.5% | ± 0.5% typical (1% maximum) | 10 mA | - | 2500 Ω | - | Max Current Output: 2 mA | - | |
PX419-1.0KDWU10V-EH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | < 0.1% | (CombinedLinearity,Hysteresis and Repeatability) | Wet/Wet Diff ± 0.05% Static Accuracy | DC to 1 kHz | 2 m | 85 °C | -29 °C | DIN 43650 C (solenoid valve) | 0 to 10 V | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 1000 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | 121 °C | -45 °C | Voltage | 316L stainless steel | 1 million, minimum | 1/4 in | NPT Male | 3x Full Scale up to 3000 psi | 3 times range | <1 ms | 50 g, 11 ms half-sine | ± 0.5% typical (1% maximum) | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 15 to 30 Vdc | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | ± 0.5% | ± 0.5% typical (1% maximum) | 10 mA | - | 2500 Ω | - | Max Current Output: 2 mA | - | |
PX409C-150DDU10V-EH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | < 0.1% | (CombinedLinearity,Hysteresis and Repeatability) | ± 0.05% Static Accuracy 1/2" Conduit | DC to 1 kHz | 2 m | 85 °C | -29 °C | 1/2 in NPT male Conduit with Cable | 0 to 10 V | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 150 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Clean, Dry, Non-ionic gases | 121 °C | -45 °C | Voltage | 316L stainless steel | 1 million, minimum | 1/4 in | NPT Male | 4x Full Scale up to 3000 psi | 4 times range | <1 ms | 50 g, 11 ms half-sine | ± 0.5% typical (1% maximum) | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 15 to 30 Vdc | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | ± 0.5% | ± 0.5% typical (1% maximum) | 10 mA | - | 2500 Ω | - | Max Current Output: 2 mA | - | |
PXM409-350HDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 350 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-350HDDUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | None | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 350 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Clean, Dry, Non-ionic gases | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-3.5BDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 3.5 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-3.5BDDUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | None | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 3.5 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Clean, Dry, Non-ionic gases | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-170HDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 170 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-170HDDUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | None | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 170 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Clean, Dry, Non-ionic gases | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-070HDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 70 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-070HDDUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | None | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 70 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Clean, Dry, Non-ionic gases | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-070BDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 70 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-035BDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 35 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-025HDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 25 mBar | 0 mBar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-010BDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 10 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-002BDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 2 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-001BDWUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | Wet/Wet Diff | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 1 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PXM409-001BDDUUSBH가격 문의6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.08 % | < 0.1% | 0.08% BSL linearity, hysteresis and repeatability combined Thermal Accuracy: ± 0.50%(Span &Zero) | None | DC to 1 kHz | 2 m | - | - | Cable | USB | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 1 bar | 0 bar | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Clean, Dry, Non-ionic gases | - | - | Digital | 316L stainless steel | 1 million, minimum | 1/4 in | BSPP Male | - | - | <1 ms | 50 g, 11 ms half-sine | - | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | - | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | - | - | - | - | - | - | - | - | |
PX459-100DWU10V-EH가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | < 0.1% | (CombinedLinearity,Hysteresis and Repeatability) | Wet/Wet Diff ± 0.05% Static Accuracy | DC to 1 kHz | 2 m | 85 °C | -29 °C | M12 4 pin Female | 0 to 10 V | 100 MΩ | 500 psi max | - | 316L Stainless Steel | Differential | 100 psi | 0 psi | Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids | Same as positive side | 121 °C | -45 °C | Voltage | 316L stainless steel | 1 million, minimum | 1/4 in | NPT Male | 4x Full Scale up to 3000 psi | 4 times range | <1 ms | 50 g, 11 ms half-sine | ± 0.5% typical (1% maximum) | ± 0.1% | Long Term Stability (1-Year): ± 0.1% FS typical | 15 to 30 Vdc | 5-2000-5 Hz, 30 minute cycle,Curve L, Mil-Spec 810 figure 514-2-2, vertical and horizontal axis | 200 g | ± 0.5% | ± 0.5% typical (1% maximum) | 10 mA | - | 2500 Ω | - | Max Current Output: 2 mA | - |
