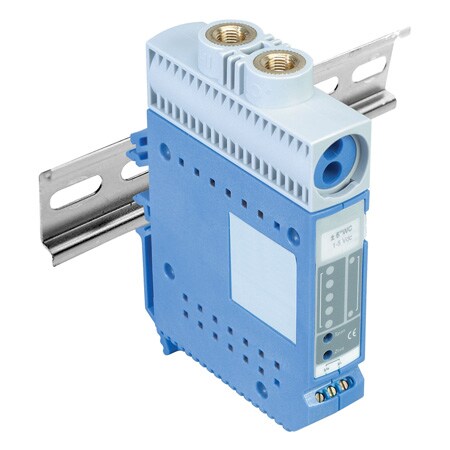

PX663 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 33개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Burst Pressure	Compensated Temperature, Max	Compensated Temperature, Min	Electrical Connection	Electrical Output	Enclosure Material	Hysteresis	Line/Static Pressure	Linearity Error	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Position Effect	Process Connection Size	Process Connection Type	Proof Pressure	Repeatability Error	Response Time	Stability	Stability Note	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Thermal Effect on Zero error, Max	Warm Up Time	Weight	Current Draw
PX663-0.05BD5V2,524,600 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.05 inH₂O	-0.05 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX665-0.05BDI2,537,930 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.05 inH₂O	-0.05 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-0.25BDI2,258,650 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-2.5BDI2,036,610 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	2.5 inH₂O	-2.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-0.25DI2,365,050 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-0.5BDI2,139,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.5 inH₂O	-0.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-0.1BDI2,378,150 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.1 inH₂O	-0.1 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX663-1.5D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	1.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-0.1D5V2,524,600 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-0.5D5V2,258,650 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	0.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX665-25BDI2,151,570 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	25 inH₂O	-25 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-10BDI2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	10 inH₂O	-10 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX663-50D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	50 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-5BD5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-2BD5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	2 inH₂O	-2 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-1BD5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-10D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX663-15D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	1 to 5 V	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	15 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Voltage	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	<10 mA
PX665-5BDI2,139,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-
PX665-50DI2,207,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	> 0.25%	± 0.5% FS	25 psi Maximum	57 °C	2 °C	Screw Terminal	4 to 20 mA	Glass-filled polycarbonate	± 0.02%	25 psi	± 0.4% FS	Differential	50 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	DIN rail types EN50022, 35 and 45	82 °C	-28 °C	Current	0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g	1/8 in	NPT Female	Up to 15 psi	± 0.05%	250 ms	± 0.5%	Maximum change (full scale/ year) ± 0.5%	82 °C	-40 °C	12 to 36 Vdc	± 0.036% full scale/°C , ± 3% FS	5 sec	127 g	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Burst Pressure

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Enclosure Material

Hysteresis

Line/Static Pressure

Linearity Error

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Position Effect

Process Connection Size

Process Connection Type

Proof Pressure

Repeatability Error

Response Time

Stability

Stability Note

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Thermal Effect on Zero error, Max

Warm Up Time

Weight

Current Draw

수량 / 장바구니

PX663-0.05BD5V2,524,600 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.05 inH₂O

-0.05 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX665-0.05BDI2,537,930 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.05 inH₂O

-0.05 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-0.25BDI2,258,650 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-2.5BDI2,036,610 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

2.5 inH₂O

-2.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-0.25DI2,365,050 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-0.5BDI2,139,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.5 inH₂O

-0.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-0.1BDI2,378,150 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.1 inH₂O

-0.1 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX663-1.5D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

1.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-0.1D5V2,524,600 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-0.5D5V2,258,650 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

0.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX665-25BDI2,151,570 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

25 inH₂O

-25 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-10BDI2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

10 inH₂O

-10 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX663-50D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

50 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-5BD5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-2BD5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

2 inH₂O

-2 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-1BD5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-10D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX663-15D5V2,139,730 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

1 to 5 V

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

15 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Voltage

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

<10 mA

PX665-5BDI2,139,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g

PX665-50DI2,207,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

> 0.25%

± 0.5% FS

25 psi Maximum

57 °C

2 °C

Screw Terminal

4 to 20 mA

Glass-filled polycarbonate

± 0.02%

25 psi

± 0.4% FS

Differential

50 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

DIN rail types EN50022, 35 and 45

82 °C

-28 °C

Current

0.5" WC and higher 0.1% FS/g Below 0.5" WC 0.25% FS/g

1/8 in

NPT Female

Up to 15 psi

± 0.05%

250 ms

± 0.5%

Maximum change (full scale/ year) ± 0.5%

82 °C

-40 °C

12 to 36 Vdc

± 0.036% full scale/°C , ± 3% FS

5 sec

127 g
