6가지 현장 선택 범위를 갖춘 차압 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Class | Accuracy Detail | Additional Features 1 | Compatible Meters | Compensated Temperature, Max | Compensated Temperature, Min | Electrical Connection | Electrical Output | Electrical Output Note | Enclosure Material | Enclosure Ratings | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Pressure Note | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Supply Voltage | Thermal Effect | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PX277-0.1D5V가격 문의 | OMEGA Engineering | ± 1 % | > 0.25% | ± 1.0% FS | None | DP24-E, DP25B-E, DP41-E | 65 °C | -4 °C | Screw Terminal | 0 to 5 or 0 to 10 V | None | Enamel coated 18GA steel | IP65, NEMA Type 4 | Differential | 0.1 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 80 °C | -18 °C | Voltage | SELECTABLE RANGES (inH2O) 0 to 0.1, -0.05 to +0.05 | 0.2" hose barbs [use 0.188" (3 ⁄16") flexible tubing] | 3/16 in | Barbed Fitting | Up to 10 psi | 12 to 35 Vdc | 0.02% FS/°C | 454 g | |
PX277-01D5V가격 문의 | OMEGA Engineering | ± 1 % | > 0.25% | ± 1.0% FS | None | DP24-E, DP25B-E, DP41-E | 65 °C | -4 °C | Screw Terminal | 0 to 5 or 0 to 10 V | None | Enamel coated 18GA steel | IP65, NEMA Type 4 | Differential | 1 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 80 °C | -18 °C | Voltage | SELECTABLE RANGES (inH2O) 0 to 1.0, 0 to 0.5, 0 to 0.25 -0.5 to 0.5, -0.25 to 0.25, -0.125 to 0.125 | 0.2" hose barbs [use 0.188" (3 ⁄16") flexible tubing] | 3/16 in | Barbed Fitting | Up to 10 psi | 12 to 35 Vdc | 0.02% FS/°C | 454 g | |

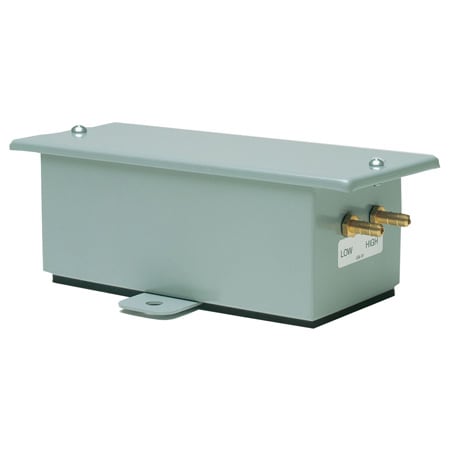

PX274-30DI가격 문의 | OMEGA Engineering | ± 1 % | > 0.25% | ± 1.0% FS | Rangable | DP24-E, DP25B-E, DP41-E | 65 °C | -4 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA(2 wire) | Enamel coated 18GA steel | IP65, NEMA Type 4 | Differential | 30 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 80 °C | -18 °C | Current | SELECTABLE RANGES (inH2O) 0 to 30, 0 to 15, 0 to 7.5, -15 to 15, -7.5 to 7.5, -3.75 to 3.75 | 0.2" hose barbs [use 0.188" (3 ⁄16") flexible tubing] | 3/16 in | Barbed Fitting | Up to 10 psi | 12 to 40 Vdc | 0.02% FS/°C | 454 g | |
PX274-05DI가격 문의 | OMEGA Engineering | ± 1 % | > 0.25% | ± 1.0% FS | Rangable | DP24-E, DP25B-E, DP41-E | 65 °C | -4 °C | Screw Terminal | 4 to 20 mA | 4 to 20 mA(2 wire) | Enamel coated 18GA steel | IP65, NEMA Type 4 | Differential | 5 inH₂O | 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen | 80 °C | -18 °C | Current | SELECTABLE RANGES (inH2O) 0 to 5.0, 0 to 2.5, 0 to 1.25 -2.5 to 2.5, -1.25 to 1.25, -0.625 to 0.625 | 0.2" hose barbs [use 0.188" (3 ⁄16") flexible tubing] | 3/16 in | Barbed Fitting | Up to 10 psi | 12 to 40 Vdc | 0.02% FS/°C | 454 g |
