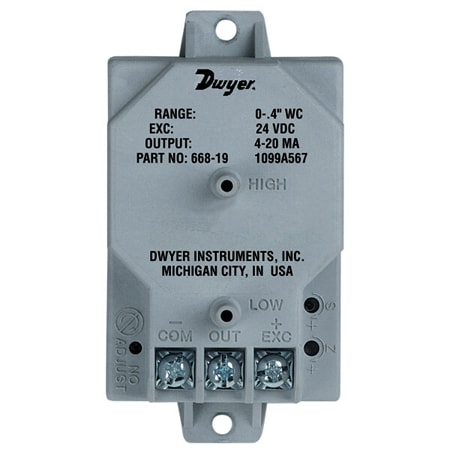

Series-668 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 37개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Applications	Compensated Temperature, Max	Compensated Temperature, Min	Compliance	Display Type	Electrical Connection	Electrical Output	Loop Resistance	Materials	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Process Connection Size	Process Connection Type	Proof Pressure	Response Time	Span Adjustment	Storage Temperature, Max	Storage Temperature, Min	Supply Power Type	Supply Voltage	Thermal Effects	Weight	Zero Setting Adjustable Range
668C-17가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	25 inH₂O	-25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-18가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	50 inH₂O	-50 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-16가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	10 inH₂O	-10 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-15가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-12가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.5 inH₂O	-0.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-14가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	2.5 inH₂O	-2.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-11가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-10가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.1 inH₂O	-0.1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-8가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	50 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-9가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	100 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-7가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-6가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	2.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-5가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-2가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668-20가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	Screw Terminal	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.2 inH₂O	-0.05 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668C-1가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	1/2 in NPT female Conduit with Screw Terminal block	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668-19가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	Screw Terminal	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	0.4 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.
668-18가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)	HVAC	65 °C	-18 °C	CE	N/A	Screw Terminal	4 to 20 mA	0 to 800 Ω	Glass Filled Polyester	Differential	50 inH₂O	-50 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	65 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 10 psi	< 60 ms	Adjustable	85 °C	-40 °C	DC	12 to 30 Vdc	0.018% FS/°C	85 g	± 1 mA, non interactive.

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Applications

Compensated Temperature, Max

Compensated Temperature, Min

Compliance

Display Type

Electrical Connection

Electrical Output

Loop Resistance

Materials

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Proof Pressure

Response Time

Span Adjustment

Storage Temperature, Max

Storage Temperature, Min

Supply Power Type

Supply Voltage

Thermal Effects

Weight

Zero Setting Adjustable Range

수량 / 장바구니

668C-17가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

25 inH₂O

-25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-18가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

50 inH₂O

-50 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-16가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

10 inH₂O

-10 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-15가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-12가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.5 inH₂O

-0.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-14가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

2.5 inH₂O

-2.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-11가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-10가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.1 inH₂O

-0.1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-8가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

50 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-9가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

100 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-7가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-6가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-4가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

2.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-5가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-2가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668-20가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

Screw Terminal

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.2 inH₂O

-0.05 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668C-1가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

1/2 in NPT female Conduit with Screw Terminal block

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668-19가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

Screw Terminal

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

0.4 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.

668-18가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% of full-scale (RSS) (includes non-linearity, hysteresis, and non-repeatability)

HVAC

65 °C

-18 °C

N/A

Screw Terminal

4 to 20 mA

0 to 800 Ω

Glass Filled Polyester

Differential

50 inH₂O

-50 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

65 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 10 psi

< 60 ms

Adjustable

85 °C

-40 °C

12 to 30 Vdc

0.018% FS/°C

85 g

± 1 mA, non interactive.
