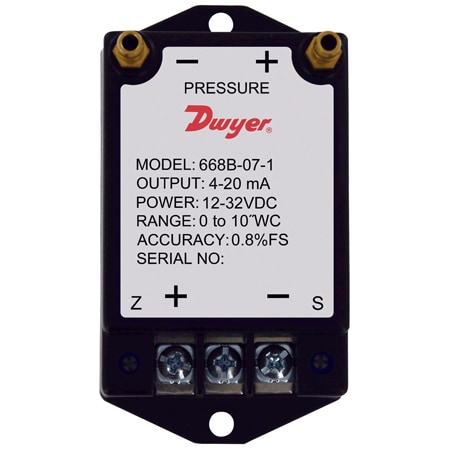

Series-668B-D | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 68개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Compensated Temperature, Max	Compensated Temperature, Min	Connection Location	Display Type	Electrical Connection	Electrical Output	Materials	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Process Connection Size	Process Connection Type	Proof Pressure	Storage Temperature, Max	Storage Temperature, Min	Supply Power Type	Supply Voltage	Thermal Effects	Weight	Zero Setting Adjustable Range
668D-22-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	0 to 5 V	Stainless Steel, PC-ABS	Differential	0.4 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	3	77 °C	-18 °C	Voltage	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-22-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	0.4 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-22-2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	0 to 10 V	Stainless Steel, PC-ABS	Differential	0.4 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	3	77 °C	-18 °C	Voltage	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-21-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	0.2 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-19-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	25 inH₂O	-25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-18-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	10 inH₂O	-10 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-17-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-16-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	2.5 inH₂O	-2.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-14-1가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	0.5 inH₂O	-0.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-15-1가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-13-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	0 to 5 V	Stainless Steel, PC-ABS	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	3	77 °C	-18 °C	Voltage	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-13-1가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-12-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	0 to 5 V	Stainless Steel, PC-ABS	Differential	0.1 inH₂O	-0.1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	3	77 °C	-18 °C	Voltage	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-12-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	0.1 inH₂O	-0.1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-12-2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	0 to 10 V	Stainless Steel, PC-ABS	Differential	0.1 inH₂O	-0.1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	3	77 °C	-18 °C	Voltage	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-10-1가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	100 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-09-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	50 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-08-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-06-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	0 to 5 V	Stainless Steel, PC-ABS	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	3	77 °C	-18 °C	Voltage	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover
668D-07-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.8 %	77 °C	4.4 °C	Bottom	N/A	Screw Terminal	4 to 20 mA	Stainless Steel, PC-ABS	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases	2	77 °C	-18 °C	Current	3/16 in	Barbed Fitting	Up to 15 psi	85 °C	-40 °C	DC	12 to 32 Vdc	± 0.054% FS/°C	113 g	Accessible under the small terminal cover

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Compensated Temperature, Max

Compensated Temperature, Min

Connection Location

Display Type

Electrical Connection

Electrical Output

Materials

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Proof Pressure

Storage Temperature, Max

Storage Temperature, Min

Supply Power Type

Supply Voltage

Thermal Effects

Weight

Zero Setting Adjustable Range

수량 / 장바구니

668D-22-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

0 to 5 V

Stainless Steel, PC-ABS

Differential

0.4 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Voltage

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-22-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

0.4 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-22-2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

0 to 10 V

Stainless Steel, PC-ABS

Differential

0.4 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Voltage

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-21-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

0.2 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-19-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

25 inH₂O

-25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-18-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

10 inH₂O

-10 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-17-1가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-16-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

2.5 inH₂O

-2.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-14-1가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

0.5 inH₂O

-0.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-15-1가격 문의16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-13-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

0 to 5 V

Stainless Steel, PC-ABS

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Voltage

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-13-1가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-12-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

0 to 5 V

Stainless Steel, PC-ABS

Differential

0.1 inH₂O

-0.1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Voltage

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-12-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

0.1 inH₂O

-0.1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-12-2가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

0 to 10 V

Stainless Steel, PC-ABS

Differential

0.1 inH₂O

-0.1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Voltage

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-10-1가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

100 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-09-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

50 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-08-1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-06-3가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

0 to 5 V

Stainless Steel, PC-ABS

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Voltage

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover

668D-07-1가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.8 %

77 °C

4.4 °C

Bottom

N/A

Screw Terminal

4 to 20 mA

Stainless Steel, PC-ABS

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases

77 °C

-18 °C

Current

3/16 in

Barbed Fitting

Up to 15 psi

85 °C

-40 °C

12 to 32 Vdc

± 0.054% FS/°C

113 g

Accessible under the small terminal cover
