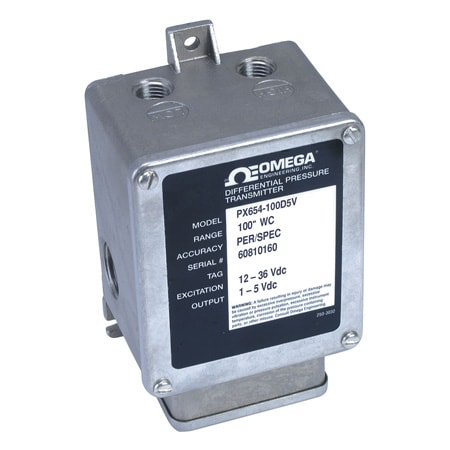

PX654 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 63개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy Class	Applications	Burst Pressure	Compensated Temperature, Max	Compensated Temperature, Min	Current Draw	Electrical Connection	Electrical Output	Enclosure Ratings	Gauge Type	Height	Hysteresis	Length	Line/Static Pressure	Linearity Error	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Process Connection Size	Process Connection Type	Proof Pressure	Repeatability Error	Response Time	Shunt Calibration Value	Supply Voltage	Thermal Effect on Zero error, Max	Weight	Width
PX654-0.25BD5V2,139,730 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.25 inH₂O	-0.25 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX657-0.25BDI가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.25 inH₂O	-0.25 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-0.05BD5V2,418,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.05 inH₂O	-0.05 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX657-0.05BDI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.05 inH₂O	-0.05 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX656-0.25BDI2,139,730 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.25 inH₂O	-0.25 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-2.5BD5V2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	2.5 inH₂O	-2.5 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX656-0.05BDI2,418,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.05 inH₂O	-0.05 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-100BD5V2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	100 inH₂O	-100 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-0.5BD5V2,047,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.5 inH₂O	-0.5 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-0.25D5V2,245,340 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.25 inH₂O	0 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX657-2.5BDI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	2.5 inH₂O	-2.5 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-0.1BD5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.1 inH₂O	-0.1 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX657-100BDI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	100 inH₂O	-100 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX656-2.5BDI2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	2.5 inH₂O	-2.5 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX657-0.25DI가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0.1% to 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.25 inH₂O	0 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX656-100BDI2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	100 inH₂O	-100 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX656-0.5BDI2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.5 inH₂O	-0.5 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX656-0.25DI2,245,340 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	4 to 20 mA	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	0.25 inH₂O	0 inH₂O	85 °C	-29 °C	Current	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-25BD5V2,112,280 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	25 inH₂O	-25 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm
PX654-50BD5V2,047,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	> 0.25%	Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific	50 psi Maximum	72 °C	-18 °C	<5 mA	Screw Terminal	1 to 5 V	IP65, NEMA Type 4X	Capacitance	64 mm	0.02% FS	137 mm	100 psi	0,003	Clean, Dry, Non-corrosive Gases	Differential	50 inH₂O	-50 inH₂O	85 °C	-29 °C	Voltage	1/4 in	NPT Female	Up to 10 psi	0.05% FS	250 ms	NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided	12 to 36 Vdc	0.015% FS/°F, 0.015% FS/°F	955 g	76 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy Class

Applications

Burst Pressure

Compensated Temperature, Max

Compensated Temperature, Min

Current Draw

Electrical Connection

Electrical Output

Enclosure Ratings

Gauge Type

Height

Hysteresis

Length

Line/Static Pressure

Linearity Error

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Process Connection Size

Process Connection Type

Proof Pressure

Repeatability Error

Response Time

Shunt Calibration Value

Supply Voltage

Thermal Effect on Zero error, Max

Weight

Width

수량 / 장바구니

PX654-0.25BD5V2,139,730 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.25 inH₂O

-0.25 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX657-0.25BDI가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.25 inH₂O

-0.25 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-0.05BD5V2,418,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.05 inH₂O

-0.05 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX657-0.05BDI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.05 inH₂O

-0.05 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX656-0.25BDI2,139,730 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.25 inH₂O

-0.25 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-2.5BD5V2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

2.5 inH₂O

-2.5 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX656-0.05BDI2,418,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.05 inH₂O

-0.05 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-100BD5V2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

100 inH₂O

-100 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-0.5BD5V2,047,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.5 inH₂O

-0.5 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-0.25D5V2,245,340 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.25 inH₂O

0 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX657-2.5BDI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

2.5 inH₂O

-2.5 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-0.1BD5V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.1 inH₂O

-0.1 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX657-100BDI가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

100 inH₂O

-100 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX656-2.5BDI2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

2.5 inH₂O

-2.5 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX657-0.25DI가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0.1% to 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.25 inH₂O

0 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX656-100BDI2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

100 inH₂O

-100 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX656-0.5BDI2,047,290 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.5 inH₂O

-0.5 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX656-0.25DI2,245,340 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

4 to 20 mA

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

0.25 inH₂O

0 inH₂O

85 °C

-29 °C

Current

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-25BD5V2,112,280 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

25 inH₂O

-25 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm

PX654-50BD5V2,047,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

> 0.25%

Air and HVAC, Fluid Measurement and Control, Industrial and Manufacturing, Laboratories and Scientific

50 psi Maximum

72 °C

-18 °C

<5 mA

Screw Terminal

1 to 5 V

IP65, NEMA Type 4X

Capacitance

64 mm

0.02% FS

137 mm

100 psi

0,003

Clean, Dry, Non-corrosive Gases

Differential

50 inH₂O

-50 inH₂O

85 °C

-29 °C

Voltage

1/4 in

NPT Female

Up to 10 psi

0.05% FS

250 ms

NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided

12 to 36 Vdc

0.015% FS/°F, 0.015% FS/°F

955 g

76 mm
