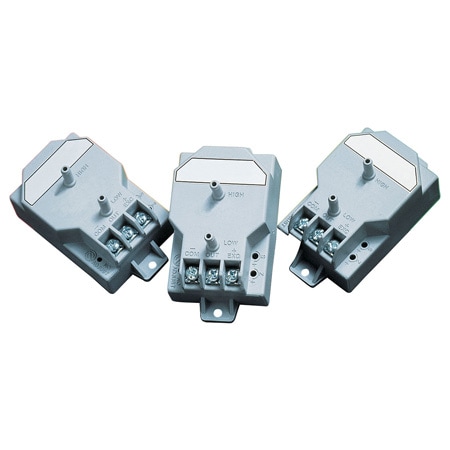

PX2650 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 13개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Class	Accuracy Detail	Compatible Meters	Compensated Temperature, Max	Compensated Temperature, Min	Electrical Connection	Electrical Output	Enclosure Material	Hysteresis	Linearity Error	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Output Resistance	Output Signal	Process Connection Note	Process Connection Size	Process Connection Type	Proof Pressure	Repeatability Error	Sensing Element	Span Setting Adjustable Range	Supply Power Note	Supply Voltage	Thermal Effect	Weight	Zero/Balance Error	Position Effect
PX2650-0.25BD5V616,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	0.25 inH₂O	-0.25 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-50BD5V606,630 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	50 inH₂O	-50 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-25BD5V616,050 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	25 inH₂O	-25 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-100D5V616,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	100 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-10BD5V616,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	10 inH₂O	-10 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-0.5D5V610,000 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	0.5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	0.6 %FS/G
PX2650-5BD5V616,090 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-2BD5V612,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	2 inH₂O	-2 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-50D5V583,180 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	50 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-25D5V610,000 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-1BD5V616,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-10D5V583,130 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	-
PX2650-2D5V583,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	> 0.25%	± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)	DP41-E, DP25B-E, DP-7700	65 °C	-18 °C	Screw Terminal	0.2 to 5.2 V	Fire-retardant glass-filled polyester	0.10% FS	± 0.98%	Differential	2 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen	<100 Ω	Voltage	3 ⁄16" OD pressure fitting for 1 ⁄4" tube	3/16 in	OD pressure fitting	Up to 10 psi	± 0.05% FSO	Capacitive	Set to 5 Vdc ± 50 mV	9 to 30 Vdc unregulated	9 to 30 Vdc	± 0.06%/°C	85 g	Set to ± 50 mV	1.4 %FS/G

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Class

Accuracy Detail

Compatible Meters

Compensated Temperature, Max

Compensated Temperature, Min

Electrical Connection

Electrical Output

Enclosure Material

Hysteresis

Linearity Error

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Output Resistance

Output Signal

Process Connection Note

Process Connection Size

Process Connection Type

Proof Pressure

Repeatability Error

Sensing Element

Span Setting Adjustable Range

Supply Power Note

Supply Voltage

Thermal Effect

Weight

Zero/Balance Error

Position Effect

수량 / 장바구니

PX2650-0.25BD5V616,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

0.25 inH₂O

-0.25 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-50BD5V606,630 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

50 inH₂O

-50 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-25BD5V616,050 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

25 inH₂O

-25 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-100D5V616,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

100 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-10BD5V616,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

10 inH₂O

-10 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-0.5D5V610,000 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

0.5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

0.6 %FS/G

PX2650-5BD5V616,090 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-2BD5V612,710 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

2 inH₂O

-2 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-50D5V583,180 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

50 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-25D5V610,000 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-1BD5V616,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-10D5V583,130 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

PX2650-2D5V583,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

> 0.25%

± 1% BFSL at constant temperature (includes linearity, repeatability and hysteresis)

DP41-E, DP25B-E, DP-7700

65 °C

-18 °C

Screw Terminal

0.2 to 5.2 V

Fire-retardant glass-filled polyester

0.10% FS

± 0.98%

Differential

2 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen

<100 Ω

Voltage

3 ⁄16" OD pressure fitting for 1 ⁄4" tube

3/16 in

OD pressure fitting

Up to 10 psi

± 0.05% FSO

Capacitive

Set to 5 Vdc ± 50 mV

9 to 30 Vdc unregulated

9 to 30 Vdc

± 0.06%/°C

85 g

Set to ± 50 mV

1.4 %FS/G
