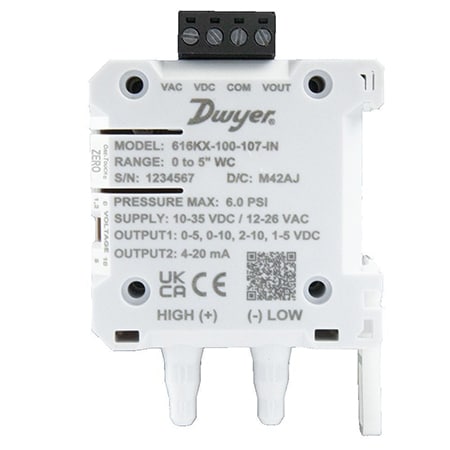

Series-616KX | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 19개의 상품

제품 번호 / 가격	Brand	Accuracy	Compensated Temperature, Max	Compensated Temperature, Min	Compliance	Display Type	Electrical Connection	Electrical Output	Enclosure Ratings	Long Term Stability	Loop Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting Note	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Power Consumption	Process Connection Note	Process Connection Size	Process Connection Type	Proof Pressure	Span Adjustment	Supply Power Type	Supply Voltage	Thermal Effects	Thermal Effects Note	Weight	Zero Setting Adjustable Range
616KX-200-211-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	25 inH₂O	-25 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-209-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	15 inH₂O	-15 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-207-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	5 inH₂O	-5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-203-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	0.5 inH₂O	-0.5 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-204-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	1 inH₂O	-1 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-200-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	0.1 inH₂O	-0.01 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-112-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	40 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-109-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	15 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-110-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	20 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-108-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-107-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-105-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	2 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-106-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	3 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-200-104-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 2 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-100-108-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-025-110-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	20 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-025-108-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-025-109-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	15 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KX-025-107-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	70 °C	-20 °C	CE	N/A	Screw Terminal	4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	0 to 1250 Ω	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field selectable	Current, Voltage	max 21 mA	Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in, 1/4 in	Stepped Barb Fitting	Up to 3.6 psi	Push Button	AC/DC	10 to 35 Vdc	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Compensated Temperature, Max

Compensated Temperature, Min

Compliance

Display Type

Electrical Connection

Electrical Output

Enclosure Ratings

Long Term Stability

Loop Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting Note

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Power Consumption

Process Connection Note

Process Connection Size

Process Connection Type

Proof Pressure

Span Adjustment

Supply Power Type

Supply Voltage

Thermal Effects

Thermal Effects Note

Weight

Zero Setting Adjustable Range

수량 / 장바구니

616KX-200-211-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

25 inH₂O

-25 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-209-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

15 inH₂O

-15 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-207-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

5 inH₂O

-5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-203-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

0.5 inH₂O

-0.5 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-204-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

1 inH₂O

-1 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-200-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

0.1 inH₂O

-0.01 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-112-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

40 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-109-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

15 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-110-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

20 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-108-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-107-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-105-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

2 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-106-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

3 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-200-104-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 2 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-100-108-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-025-110-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

20 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-025-108-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-025-109-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

15 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KX-025-107-IN가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

70 °C

-20 °C

N/A

Screw Terminal

4 to 20 mA, 0 to 5 Vdc, 1 to 5 Vdc, 0 to 10 Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

0 to 1250 Ω

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field selectable

Current, Voltage

max 21 mA

Barbed, dual size to fit 1/8˝, 3/16˝ and 1/4" (3 mm and 6 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in, 1/4 in

Stepped Barb Fitting

Up to 3.6 psi

Push Button

AC/DC

10 to 35 Vdc

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button
