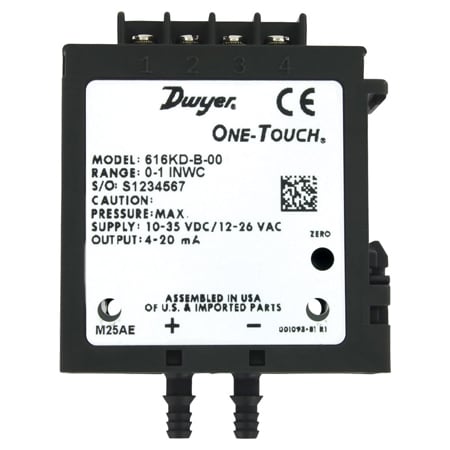

Series-616KD | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 37개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Applications	Compensated Temperature, Max	Compensated Temperature, Min	Compliance	Display Type	Electrical Connection	Electrical Output	Enclosure Ratings	Long Term Stability	Loop Resistance	Materials, Wetted	Measurement Pressure Type	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting Note	Number of Wires	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Power Consumption	Process Connection Note	Process Connection Size	Process Connection Type	Proof Pressure	Span Adjustment	Supply Power Type	Supply Voltage	Thermal Effects	Thermal Effects Note	Weight	Zero Setting Adjustable Range
616KD-B-14-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	2500 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-12-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	750 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-13-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	1250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-11-V가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	500 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-10-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-07-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-04-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-05-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	15 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-03-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-02-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	3 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-00-V232,000 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	1 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-B-01-V232,000 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	2 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.04% FS/°F	± 0.04% FS/°F, includes zero and span.	51 g	Push button
616KD-A-14-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	2500 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-13-V366,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	1250 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-12-V366,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	750 Pa	0 Pa	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	-	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-07-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	25 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-06-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	20 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-04-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	10 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-05-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	15 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 5 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button
616KD-A-03-V366,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 0.25 %	Filter Monitoring	50 °C	-6.67 °C	CE	N/A	Screw Terminal	0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc	IP20, NEMA Type 1	± 1% FS/year	5 kΩ min	Consult Factory	Differential	5 inH₂O	0 inH₂O	Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases	Vertical with Downward Pressure Ports	2, 3, 4	60 °C	-17.8 °C	Field Selectable	Voltage	max 24 mA	Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing	1/8 in, 3/16 in	Stepped Barb Fitting	Up to 2 psi	Push Button	AC/DC	3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac	± 0.02% FS/°F	± 0.02% FS/°F, includes zero and span.	51 g	Push button

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Applications

Compensated Temperature, Max

Compensated Temperature, Min

Compliance

Display Type

Electrical Connection

Electrical Output

Enclosure Ratings

Long Term Stability

Loop Resistance

Materials, Wetted

Measurement Pressure Type

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting Note

Number of Wires

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Power Consumption

Process Connection Note

Process Connection Size

Process Connection Type

Proof Pressure

Span Adjustment

Supply Power Type

Supply Voltage

Thermal Effects

Thermal Effects Note

Weight

Zero Setting Adjustable Range

수량 / 장바구니

616KD-B-14-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

2500 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-12-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

750 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-13-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

1250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-11-V가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

500 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-10-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-07-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-04-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-05-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

15 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-03-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-02-V232,000 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

3 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-00-V232,000 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

1 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-B-01-V232,000 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

2 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.04% FS/°F

± 0.04% FS/°F, includes zero and span.

51 g

Push button

616KD-A-14-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

2500 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-13-V366,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

1250 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-12-V366,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

750 Pa

0 Pa

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-07-V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

25 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-06-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

20 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-04-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

10 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-05-V311,400 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

15 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 5 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button

616KD-A-03-V366,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 0.25 %

Filter Monitoring

50 °C

-6.67 °C

N/A

Screw Terminal

0 to 5Vdc, 1 to 5Vdc, 0 to 10Vdc, 2 to 10 Vdc

IP20, NEMA Type 1

± 1% FS/year

5 kΩ min

Consult Factory

Differential

5 inH₂O

0 inH₂O

Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases

Vertical with Downward Pressure Ports

2, 3, 4

60 °C

-17.8 °C

Field Selectable

Voltage

max 24 mA

Barbed, dual size to fit 1/8˝ and 3/16˝ (3 mm and 5 mm) ID rubber or vinyl tubing

1/8 in, 3/16 in

Stepped Barb Fitting

Up to 2 psi

Push Button

AC/DC

3-Wire (5V): 10 to 35 Vdc, 4-Wire (5V): 12 TO 26 Vac, 2-Wire or 3-Wire (10V): 16 to 36 Vdc, 4-Wire (10V): 20 to 28 Vac

± 0.02% FS/°F

± 0.02% FS/°F, includes zero and span.

51 g

Push button
