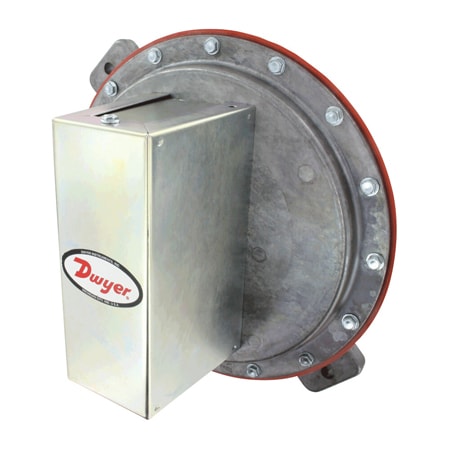

공기 제어용 압력 스위치 – 고정밀, 누수 방지, 쉬운 장착
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Compliance | Deadband | Electrical Connection | Materials, Wetted | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Process Connection Size | Process Connection Type | Proof Pressure | Repeatability | Set Point Adjustment | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1627-20가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.5 to 1.2 inH2O | Screw Terminal | Consult Factory | 24 inH₂O | 8 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | (2) SPDT | 1.69 kg | |
1626-20가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.5 to 1.2 inH2O | Screw Terminal | Consult Factory | 24 inH₂O | 8 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.64 kg | |
1627-10가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.25 to 0.65 inH2O | Screw Terminal | Consult Factory | 11 inH₂O | 2 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | (2) SPDT | 1.69 kg | |
1626-10가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.25 to 0.65 inH2O | Screw Terminal | Consult Factory | 11 inH₂O | 2 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.64 kg | |
1627-5가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.15 to 0.35 inH2O | Screw Terminal | Consult Factory | 6 inH₂O | 0.5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | (2) SPDT | 1.69 kg | |
1626-5가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.15 to 0.35 inH2O | Screw Terminal | Consult Factory | 6 inH₂O | 0.5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.64 kg | |
1627-1가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.1 to 0.2 inH2O | Screw Terminal | Consult Factory | 1.5 inH₂O | 0.5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | (2) SPDT | 1.69 kg | |
1626-1가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.1 to 0.2 inH2O | Screw Terminal | Consult Factory | 1.5 inH₂O | 0.15 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical Diaphragm | 130 °F | -30 °F | 1/8 in | NPT Female | Up to 50 inH2O | ± 1% | Screw Adjustment | 15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz | 15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac | SPDT NO/NC, Selectable | 1.64 kg |
