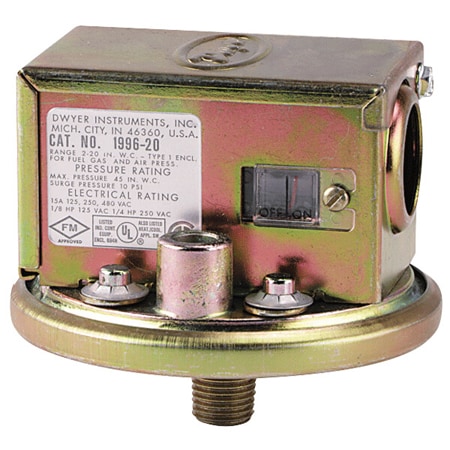

Series-1996 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Compliance	Electrical Connection	Materials, Wetted	Measurement Pressure, Max	Measurement Pressure, Min	Media Compatibility	Mounting Orientation	Operating Temperature Note	Operating Temperature, Max	Operating Temperature, Min	Port/Valve Configuration	Process Connection Note	Process Connection Size	Process Connection Type	Proof Pressure	Set Point Adjustment	Switch Note	Switch Rating	Switch Type	Vent Connection	Weight	수량 / 장바구니
1996-20가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CE, CSA, FM, UL	7/8 in knockout with Screw Terminal block	Consult Factory	20 inH₂O	4 inH₂O	Air, Argon, Butane, Carbon dioxide, Combustible Gases, Helium, Hydrogen, Methane, Nitrogen, Non-Corrosive Dry Gases, Oxygen, Propane	Horizontal Diaphragm	32 to 110°F (0 to 43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.	110 °F	32 °F	Additional HP port on back	1/8˝ female NPT or 1/4˝ male NPT	1/4 in x 1/8 in	NPT Male and Female	Up to 45 inH2O	Internal Screw	15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz	15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac	SPDT NO/NC, Selectable	1/8 in NPT Female	349 g
1996-5가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	CE, CSA, FM, UL	7/8 in knockout with Screw Terminal block	Consult Factory	5.5 inH₂O	1.4 inH₂O	Air, Argon, Butane, Carbon dioxide, Combustible Gases, Helium, Hydrogen, Methane, Nitrogen, Non-Corrosive Dry Gases, Oxygen, Propane	Horizontal Diaphragm	32 to 110°F (0 to 43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.	110 °F	32 °F	Additional HP port on back	1/8˝ female NPT or 1/4˝ male NPT	1/4 in x 1/8 in	NPT Male and Female	Up to 45 inH2O	Internal Screw	15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz	15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac	SPDT NO/NC, Selectable	1/8 in NPT Female	349 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Compliance

Electrical Connection

Materials, Wetted

Measurement Pressure, Max

Measurement Pressure, Min

Media Compatibility

Mounting Orientation

Operating Temperature Note

Operating Temperature, Max

Operating Temperature, Min

Port/Valve Configuration

Process Connection Note

Process Connection Size

Process Connection Type

Proof Pressure

Set Point Adjustment

Switch Note

Switch Rating

Switch Type

Vent Connection

Weight

수량 / 장바구니

1996-20가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

CE, CSA, FM, UL

7/8 in knockout with Screw Terminal block

Consult Factory

20 inH₂O

4 inH₂O

Air, Argon, Butane, Carbon dioxide, Combustible Gases, Helium, Hydrogen, Methane, Nitrogen, Non-Corrosive Dry Gases, Oxygen, Propane

Horizontal Diaphragm

32 to 110°F (0 to 43.3°C). -30 to 110°F (-34.4 to 43.3°C) for dry gas or dry air.

110 °F

32 °F

Additional HP port on back

1/8˝ female NPT or 1/4˝ male NPT

1/4 in x 1/8 in

NPT Male and Female

Up to 45 inH2O

Internal Screw

15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC,1/4 HP @ 250 VAC, 60 Hz

15 A @ 120-480 Vac, 1/8 HP @ 125 Vac, 1/4 HP @ 250 Vac

SPDT NO/NC, Selectable

1/8 in NPT Female

349 g

1996-5가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
