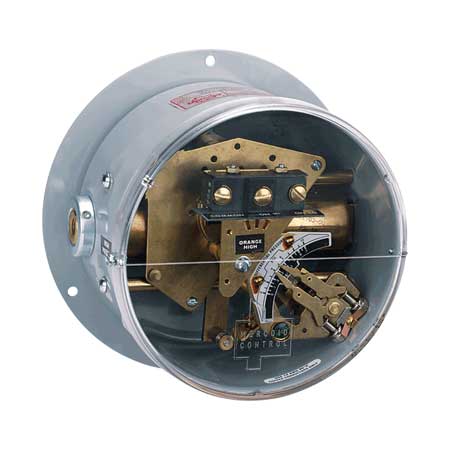

조정 가능한 차압 스위치, SPDT, NEMA-1, 600 psig, 316 SS
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Compliance | Deadband | Electrical Connection | Enclosure Ratings | Material Construction Option | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Process Connection Size | Process Connection Type | Proof Pressure | Set Point Adjustment | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DPA-7043-153-64E가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 1.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | None | 316 Stainless Steel | Brass | Differential | 30 psi | 0 psi | Vertical | 180 °F | -10 °F | 1/8 in | NPT Female | Up to 50 psi | Internal Thumbwheel or Nut | Snap Action Switch SPDT, 15A @ 120/240 VAC, SPDT Snap switch. (Contact factory for mercury switch) | 15A @ 120/240 Vac | SPDT NO/NC, Selectable | 2.3 kg | |
DPA-7043-153-62E가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 1.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | None | 316 Stainless Steel | Brass | Differential | 20 psi | 0 psi | Vertical | 180 °F | -10 °F | 1/8 in | NPT Female | Up to 50 psi | Internal Thumbwheel or Nut | Snap Action Switch SPDT, 15A @ 120/240 VAC, SPDT Snap switch. (Contact factory for mercury switch) | 15A @ 120/240 Vac | SPDT NO/NC, Selectable | 2.3 kg | |
DPA-7033-153-64가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 1.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | None | Brass | Brass | Differential | 30 psi | 0 psi | Vertical | 180 °F | -10 °F | 1/8 in | NPT Female | Up to 50 psi | Internal Thumbwheel or Nut | Snap Action Switch SPDT, 15A @ 120/240 VAC, SPDT Snap switch. (Contact factory for mercury switch) | 15A @ 120/240 Vac | SPDT NO/NC, Selectable | 2.3 kg | |
DPA-7033-153-61가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 1.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | None | Brass | Brass | Differential | 10 psi | 0 psi | Vertical | 180 °F | -10 °F | 1/8 in | NPT Female | Up to 50 psi | Internal Thumbwheel or Nut | Snap Action Switch SPDT, 15A @ 120/240 VAC, SPDT Snap switch. (Contact factory for mercury switch) | 15A @ 120/240 Vac | SPDT NO/NC, Selectable | 2.3 kg | |
DPA-7033-153-62가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE, cULus | 1.5 psi | 1/2 in NPT female Conduit with Screw Terminal block | None | Brass | Brass | Differential | 20 psi | 0 psi | Vertical | 180 °F | -10 °F | 1/8 in | NPT Female | Up to 50 psi | Internal Thumbwheel or Nut | Snap Action Switch SPDT, 15A @ 120/240 VAC, SPDT Snap switch. (Contact factory for mercury switch) | 15A @ 120/240 Vac | SPDT NO/NC, Selectable | 2.3 kg |
