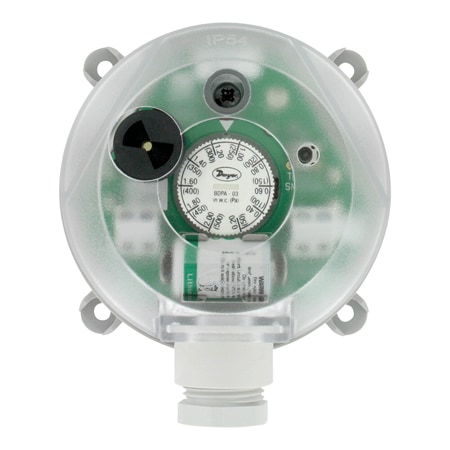

조정 가능한 차압 경보, 0.08-20 inH2O, 가청/시각
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Applications | Deadband | Electrical Connection | Enclosure Ratings | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Mechanical Life | Media Compatibility | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Process Connection Note | Process Connection Size | Process Connection Type | Proof Pressure | Storage Temperature, Max | Storage Temperature, Min | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BDPA-08-2-N가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Industrial and Manufacturing | 0.04 to 0.05 inH2O | M20 Female Conduit with Strain Releif and Screw Terminal block | IP54, NEMA Type 13 | Differential | 1.2 inH₂O | 0.08 inH₂O | >10^6 cycles | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical with Downward Pressure Ports | 185 °F | -4 °F | 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing | 5/16 in | Barbed Fitting | Up to 40 inH2O | 185 °F | -40 °F | Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min | 1.5 A/0.4 A @ 250 Vac | SPDT NO/NC, Selectable | 125 g | |
BDPA-07-2-N가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Industrial and Manufacturing | 1 to 1.4 inH2O | M20 Female Conduit with Strain Releif and Screw Terminal block | IP54, NEMA Type 13 | Differential | 20 inH₂O | 4 inH₂O | >10^6 cycles | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical with Downward Pressure Ports | 185 °F | -4 °F | 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing | 5/16 in | Barbed Fitting | Up to 40 inH2O | 185 °F | -40 °F | Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min | 1.5 A/0.4 A @ 250 Vac | SPDT NO/NC, Selectable | 125 g | |
BDPA-06-2-N가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Industrial and Manufacturing | 0.6 to 0.8 inH2O | M20 Female Conduit with Strain Releif and Screw Terminal block | IP54, NEMA Type 13 | Differential | 10 inH₂O | 2 inH₂O | >10^6 cycles | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical with Downward Pressure Ports | 185 °F | -4 °F | 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing | 5/16 in | Barbed Fitting | Up to 40 inH2O | 185 °F | -40 °F | Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min | 1.5 A/0.4 A @ 250 Vac | SPDT NO/NC, Selectable | 125 g | |
BDPA-04-2-N가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Industrial and Manufacturing | 0.06 to 0.09 inH2O | M20 Female Conduit with Strain Releif and Screw Terminal block | IP54, NEMA Type 13 | Differential | 1.6 inH₂O | 0.12 inH₂O | >10^6 cycles | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical with Downward Pressure Ports | 185 °F | -4 °F | 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing | 5/16 in | Barbed Fitting | Up to 40 inH2O | 185 °F | -40 °F | Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min | 1.5 A/0.4 A @ 250 Vac | SPDT NO/NC, Selectable | 125 g | |
BDPA-05-2-N가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Industrial and Manufacturing | 0.4 to 0.5 inH2O | M20 Female Conduit with Strain Releif and Screw Terminal block | IP54, NEMA Type 13 | Differential | 4 inH₂O | 0.8 inH₂O | >10^6 cycles | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical with Downward Pressure Ports | 185 °F | -4 °F | 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing | 5/16 in | Barbed Fitting | Up to 40 inH2O | 185 °F | -40 °F | Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min | 1.5 A/0.4 A @ 250 Vac | SPDT NO/NC, Selectable | 125 g | |
BDPA-03-2-N가격 문의17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Industrial and Manufacturing | 0.08 to 0.09 inH2O | M20 Female Conduit with Strain Releif and Screw Terminal block | IP54, NEMA Type 13 | Differential | 2 inH₂O | 0.2 inH₂O | >10^6 cycles | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | Vertical with Downward Pressure Ports | 185 °F | -4 °F | 5/16" (7.94 mm) outside diameter tubing, 1/4" (6.0 mm) inside diameter tubing | 5/16 in | Barbed Fitting | Up to 40 inH2O | 185 °F | -40 °F | Max. 1.5 A res./0.4 A ind./250 VAC, 50/60 Hz; Max. switching rate: 6 cycles/min | 1.5 A/0.4 A @ 250 Vac | SPDT NO/NC, Selectable | 125 g |
