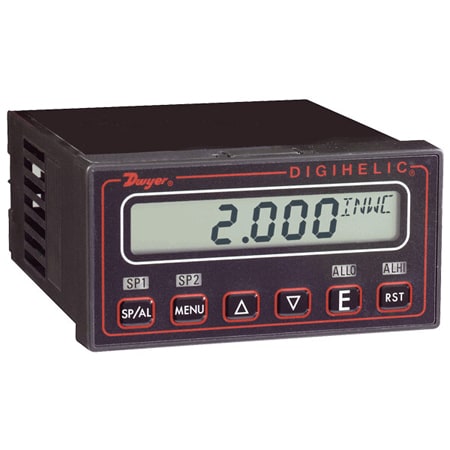

다기능 차압 컨트롤러, 0.5% 정확도, 디지털 디스플레이
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 12개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Baud Rate | Compensated Temperature, Max | Compensated Temperature, Min | Compliance | Data Interface | Display Note | Display Type | Electrical Connection | Enclosure Ratings | Height | Length | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting | Mounting Orientation | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Power Consumption | Process Connection Note | Process Connection Size | Process Connection Type | Response Time | Set Point Adjustment | Stability | Supply Power Note | Supply Power Type | Supply Voltage | Switch Note | Switch Rating | Switch Type | Thermal Effects | Weight | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DH-0161,373,000 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 5, 5 inH₂O | -5, -5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0171,373,000 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 10, 10 inH₂O | -10, -10 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0151,373,000 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 2.5, 2.5 inH₂O | -2.5, -2.5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-014가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 1, 1 inH₂O | -1, -1 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-012가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 0.25, 0.25 inH₂O | -0.25, -0.25 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0101,373,000 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 100, 100 inH₂O | 100, 100 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0091,373,000 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 50, 50 inH₂O | 50, 50 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0081,412,830 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 25, 25 inH₂O | 25, 25 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-004가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 1, 1 inH₂O | 1, 1 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0061,412,830 원재고 5개 | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 5, 5 inH₂O | 5, 5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-002가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 0.25, 0.25 inH₂O | 0.25, 0.25 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus | |
DH-0071,373,000 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% at 77°F (25°C) including hysteresis and repeatability. | 9600 | 140 °F | 32 °F | CE, UL | Modbus RTU, RS485 | 4 digit LCD 0.4˝ height. LED indicators for set point and alarm status | LCD | Screw Terminal | IP66, NEMA Type 4X | 3.62 in | 1.772 in | ABS | Consult Factory | Differential | 10, 10 inH₂O | 10, 10 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | 1/8 DIN | Horizontal | 4 | 140 °F | 32 °F | 4-20 mA DC into 900 Ω max | Current | 7 VA, Low Power: 130 mA | Compression fitting for use with 1/8˝ ID X 1/4˝ OD tubing (3.175 mm ID x 6.35 mm OD). Optional barbed fitting for 3/16˝ ID tubing | 1/8 in | Compression Fitting | 250 ms | Menu Configurable | <± 1%/year | High voltage power = 100-240 VAC, 50-400 Hz or 132-240 VDC, Low voltage power = 24 VDC ± 20%. | AC/DC | 100 to 240 Vac/132 to 240 Vdc | 8 A at 240 VAC resistive | 8 A @ 240 Vac | (2) SPDT | 0.020%/°F @ 77°F | 14.4 oz | Accessible via Menus |
