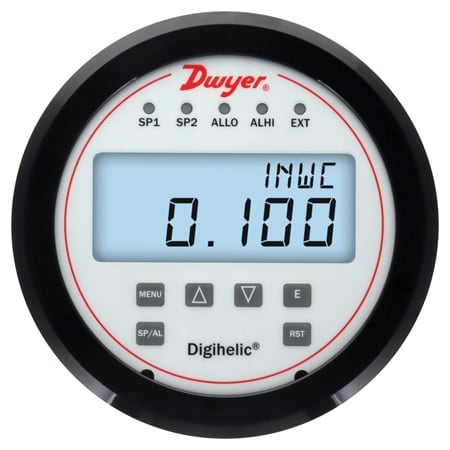

Digihelic® 차압 컨트롤러, 4-20 mA 출력, 1.5% 정확도
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 13개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Baud Rate | Burst Pressure | Compliance | Data Interface | Device Load | Display Note | Display Type | Electrical Connection | Enclosure Ratings | Height | Materials | Materials, Wetted | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Media Compatibility | Mounting Orientation | Number of Wires | Operating Temperature, Max | Operating Temperature, Min | Outer Diameter | Output Detail | Output Signal | Power Consumption | Process Connection Note | Process Connection Size | Process Connection Type | Response Time | Response Time Note | Set Point Adjustment | Stability | Supply Power Note | Supply Power Type | Supply Voltage | Switch Note | Switch Rating | Switch Type | Thermal Effects | Weight | Zero Setting Adjustable Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DHC-209가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 10, 10 inH₂O | -10, -10 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-206가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 2.5, 2.5 inH₂O | -2.5, -2.5 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-202가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 0.25, 0.25 inH₂O | -0.25, -0.25 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-204가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 1, 1 inH₂O | -1, -1 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-012가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 100, 100 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-011가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 50, 50 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-009가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 10, 10 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-008가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 5, 5 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-006가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 2.5, 2.5 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-003가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 0.5, 0.5 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-004가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 1, 1 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-002가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 0.25, 0.25 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus | |
DHC-010가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO | Fluid Measurement and Control | 9600 to 115200 | 6 psi Maximum | BTL, CE | BACnet MS/TP, Modbus RTU | 1/8 Unit | Backlit LCD display, LED setpoint indicators | LCD | Sub-D Male Miniature Connector | IP66, NEMA Type 4X | 1.9 in | Polycarbonate | Consult Factory | Differential | 25, 25 inH₂O | 0, 0 inH₂O | Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases | None | 15 | 158 °F | -4 °F | 5 in | 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V | Current, Voltage | 3 VA | 1/8" female NPT ports on side and back | 1/8 in | NPT Female | 400 ms | 400 ms (damping set to 0) | Menu Configurable | <± 1% FSO/year | 12-28 VDC or 12-28 VAC 50 to 400 Hz | AC/DC | 12 to 28 Vac/Vdc | 2 SPDT relays, 1 A @ 30 VAC/VDC | 1 A @ 30 Vac/Vdc | (2) SPDT | 0.02% FS/°F | 8.8 oz | Accessible via Menus |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
