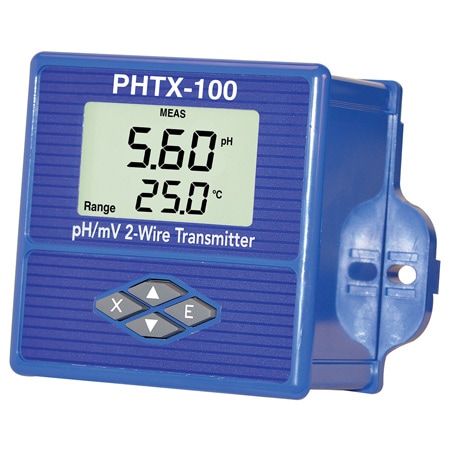

PHTX-100-Transmitter

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Conduit Connection	Electrical Output	Enclosure Material	Enclosure Ratings	Hazardous Classification	Height	Input Type	Length	Load Resistance	Measurement Type	Mounting	ORP Measurement Range	Operating Temperature, Max	Operating Temperature, Min	Output Detail	PH Measurement Range	Relative Humidity	Resolution	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Transmission Distance	Weight	Width	수량 / 장바구니
PHTX-100975,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 2 mV	2 3/8 in NPT Female	2 to 24 mA	ABS	IP65, NEMA Type 4X	Designed for non-hazardous areas	99.1 mm	RTD	74.7 mm	600 Ω	pH, ORP	Wall, panel, DIN rail and pipe	-1999 to 1999 mV	60 °C	0 °C	2.00 to 24 mA, 0.01 mA resolution, ±0.005 mA accuracy, 500V input/output isolation	0 to 14.00 pH	0 to 95% RH, non condensing	0.01 pH, 1 mV	110 °C	-20 °C	12 to 24 Vdc	9.1 m	0.45 kg	99.1 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Conduit Connection

Electrical Output

Enclosure Material

Enclosure Ratings

Hazardous Classification

Height

Input Type

Length

Load Resistance

Measurement Type

Mounting

ORP Measurement Range

Operating Temperature, Max

Operating Temperature, Min

Output Detail

PH Measurement Range

Relative Humidity

Resolution

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Transmission Distance

Weight

Width

수량 / 장바구니

PHTX-100975,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 2 mV

2 3/8 in NPT Female

2 to 24 mA

ABS

IP65, NEMA Type 4X

Designed for non-hazardous areas

99.1 mm

RTD

74.7 mm

600 Ω

pH, ORP

Wall, panel, DIN rail and pipe

-1999 to 1999 mV

60 °C

0 °C

2.00 to 24 mA, 0.01 mA resolution, ±0.005 mA accuracy, 500V input/output isolation

0 to 14.00 pH

0 to 95% RH, non condensing

0.01 pH, 1 mV

110 °C

-20 °C

12 to 24 Vdc

9.1 m

0.45 kg

99.1 mm
