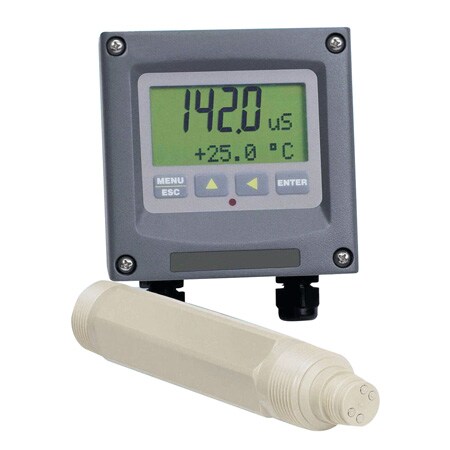

2-선식 절연 전도도 변환기 시스템
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 3개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Additional Features 1 | Cable Length | Electrical Output | Input Type | Measurement Type | Repeatability | Response Time | Sensitivity | Stability | Stability Note | Supply Power Effects | Supply Voltage | Temperature Drift | Warm Up Time | Conductivity Measurement | Conductivity Measurement Note | Conduit Connection | Display | Display Type | Display Type Note | EMC Standard | Enclosure Material | Enclosure Ratings | Filter | Height | Isolation | Keypad | Length | Mounting | Output Detail | Relative Humidity | Width | Control Characteristics | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CDTX-45-115VAC-R2가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.3 % | 0.3% of span | Sensor | - | Dual 4 to 20 mA | RTD | Conductivity | 0.3% of span | - | 0.05% of span | 0.001 | 0.1% of span per 24 hours, non-cumulative | ± 0.05% span | 115 Vac | 0.03% of span/°C ;Temperature Range: -5 to 95°C (23 to 203°F);Pressure Range: 0 to 100 psig ;Maximum Flow Rate: 3 m (10’) per second ;Sensor to Transmitter Distance: 914 m (3000’) ; | 7 sec | 0 to 2000.00 µS | Automatic or manual; 0.0 to 2.0 µS, 0.0 to 20.0 µS, 0 to 200 µS, 0 to 2000.00 µS, 0.00 to 2.00 µS | 3 PG-9 | Main input, 0.0 µS to 2000 mS, % Concentration, sensor temperature [-10.0 to 110.0°C (14 to 230°F)], loop current (4.00 to 20.00 mA) | LCD | Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters | EN61326-1 | - | NEMA Type 4X | Adjustable 0 to 9.9 minutes additional damping to 90% step input | 112 mm | 600 V galvanic isolation | 4-key membrane type with tactile feedback | 89 mm | Wall, panel, pipe/header | Dual 4 to 20 mA | 0 to 95% RH, non condensing | 112 mm | Two SPDT, 6 A @250 Vac, 5 A @24 Vdc (CDTX-45-115VAC-R2 only) | |
CDE-45P1,239,300 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.3 % | 0.3% of span | Sensor | 18.3 m | 4 to 20 mA | N/A | Conductivity | 0.3% of span | 12 sec | 0.05% of span | 0.001 | 0.1% of span per 24 hours, non-cumulative | ± 0.05% span | 16 to 35 Vdc | 0.03% of span/°C ;Temperature Range: -5 to 95°C (23 to 203°F);Pressure Range: 0 to 100 psig ;Maximum Flow Rate: 3 m (10’) per second ;Sensor to Transmitter Distance: 914 m (3000’) ; | 7 sec | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
CDTX-451,729,970 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.3 % | 0.3% of span | Sensor | - | 4 to 20 mA | RTD | Conductivity | 0.3% of span | - | 0.05% of span | 0.001 | 0.1% of span per 24 hours, non-cumulative | ± 0.05% span | 16 to 35 Vdc | 0.03% of span/°C ;Temperature Range: -5 to 95°C (23 to 203°F);Pressure Range: 0 to 100 psig ;Maximum Flow Rate: 3 m (10’) per second ;Sensor to Transmitter Distance: 914 m (3000’) ; | 7 sec | 0 to 2000.00 µS | Automatic or manual; 0.0 to 2.0 µS, 0.0 to 20.0 µS, 0 to 200 µS, 0 to 2000.00 µS, 0.00 to 2.00 µS | 3 PG-9 | Main input, 0.0 µS to 2000 mS, % Concentration, sensor temperature [-10.0 to 110.0°C (14 to 230°F)], loop current (4.00 to 20.00 mA) | LCD | Large, high-contrast, Super-Twist (STN) LCD; 4-digit main display with sign, 19.1 mm (0.75") 7-segment characters; 12-digit secondary display, 7.6 mm (0.3") 5 x 7 dot matrix characters | EN61326-1 | Polycarbonate | NEMA Type 4X | Adjustable 0 to 9.9 minutes additional damping to 90% step input | 112 mm | 600 V galvanic isolation | 4-key membrane type with tactile feedback | 89 mm | Wall, panel, pipe/header | Loop powered 4 to 20 mA output for conductivity | 0 to 95% RH, non condensing | 112 mm | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
