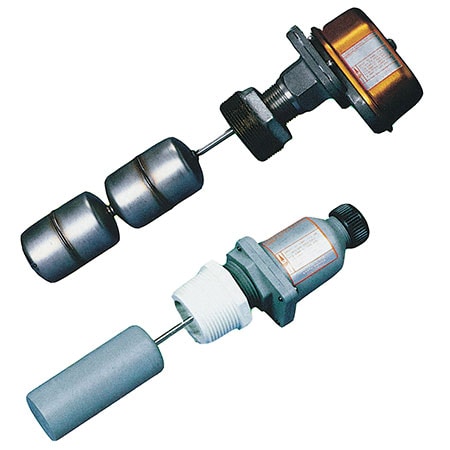

사이드 마운트 비자성 액체 레벨 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Approvals | Enclosure Ratings | Insulation | Material Construction Option | Materials, Wetted | Media Compatibility | Operating Pressure, Max | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Probe Length | Process Connection Size | Process Connection Type | Specific Gravity | Strain Relief Fitting | Switch Note | Switch Rating | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LV-1101A865,010 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, RoHS, UKCA | IP66, NEMA Type 4 | PVC | Single Float | 304 Stainless Steel, 316 Stainless Steel, Brass, Cork-Chloroprene, EPDM, Noryl, Phosphor Bronze | Oil, Solvents, Water | 300 psi | LV-1100 Series: 300 psig @ 82°C (180°F), LV-1202: 75 psig @ 93°C (200°F), 100 psig @ 23°C (75°F), LV-1201: 75 psig @ 23°C (75°F), 200 psig @ 10°C (50°F), LV-1203: 75 psig @ 93°C (200°F), 100 psig @ 230°C (75°F) | 82 °C | 0 °C | 6 in | 2 in | NPT Male | 0.6 | - | SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median | 15 A @ 125 or 250 Vac | SPDT NO/NC, Selectable | 1.36 kg | |
LV-1102A1,766,590 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, RoHS, UKCA | IP66, NEMA Type 4 | PVC | Dual Float | 302 Stainless Steel, 316 Stainless Steel, FKM, Noryl, PTFE | Oil, Solvents, Water | 300 psi | LV-1100 Series: 300 psig @ 82°C (180°F), LV-1202: 75 psig @ 93°C (200°F), 100 psig @ 23°C (75°F), LV-1201: 75 psig @ 23°C (75°F), 200 psig @ 10°C (50°F), LV-1203: 75 psig @ 93°C (200°F), 100 psig @ 230°C (75°F) | 82 °C | 0 °C | 9.375 in | 2 in | NPT Male | 0.6 | - | SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median | 15 A @ 125 or 250 Vac | SPDT NO/NC, Selectable | 1.36 kg | |
LV-1203495,300 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, RoHS, UKCA | IP66, NEMA Type 4 | PVC | Hastelloy C | FKM, Hastelloy-C, Polypropylene | Oil, Solvents, Water | 100 psi | LV-1100 Series: 300 psig @ 82°C (180°F), LV-1202: 75 psig @ 93°C (200°F), 100 psig @ 23°C (75°F), LV-1201: 75 psig @ 23°C (75°F), 200 psig @ 10°C (50°F), LV-1203: 75 psig @ 93°C (200°F), 100 psig @ 230°C (75°F) | 23 °C | 0 °C | 4.8125 in | 1 1/4 in | NPT Male | 0.7 | 0.25 in ± 0.025 in | SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median | 15 A @ 125 or 250 Vac | SPDT NO/NC, Selectable | 0.17 kg | |
LV-1202325,530 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, RoHS, UKCA | IP66, NEMA Type 4 | PVC | 316 Stainless Steel | 316 Stainless Steel, FKM, PPS, PVC | Oil, Solvents, Water | 100 psi | LV-1100 Series: 300 psig @ 82°C (180°F), LV-1202: 75 psig @ 93°C (200°F), 100 psig @ 23°C (75°F), LV-1201: 75 psig @ 23°C (75°F), 200 psig @ 10°C (50°F), LV-1203: 75 psig @ 93°C (200°F), 100 psig @ 230°C (75°F) | 23 °C | 0 °C | 4.8125 in | 1 1/4 in | NPT Male | 0.7 | 0.25 in ± 0.025 in | SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median | 15 A @ 125 or 250 Vac | SPDT NO/NC, Selectable | 0.17 kg | |
LV-1201283,360 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, RoHS, UKCA | IP66, NEMA Type 4 | PVC | Plastic | 316 Stainless Steel, EPDM, Noryl | Oil, Solvents, Water | 200 psi | LV-1100 Series: 300 psig @ 82°C (180°F), LV-1202: 75 psig @ 93°C (200°F), 100 psig @ 23°C (75°F), LV-1201: 75 psig @ 23°C (75°F), 200 psig @ 10°C (50°F), LV-1203: 75 psig @ 93°C (200°F), 100 psig @ 230°C (75°F) | 10 °C | 0 °C | 4.8125 in | 1 1/4 in | NPT Male | 0.6 | 0.25 in ± 0.025 in | SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median | 15 A @ 125 or 250 Vac | SPDT NO/NC, Selectable | 0.17 kg |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
