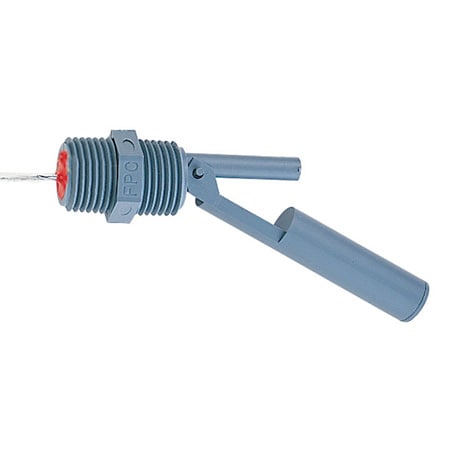

LVN90-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 4개의 상품

제품 번호 / 가격	Brand	Approvals	Cable Length	Enclosure Ratings	Insulation	Material Construction Option	Materials, Wetted	Media Compatibility	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Process Connection Size	Process Connection Type	Specific Gravity	Switch Note	Switch Operation	Switch Rating	Switch Type	Wire Gauge
LVN-93358,150 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, RoHS, UKCA, UL cULus	24 in	IP68, NEMA Type 6	PVC	316 Stainless Steel	316 Stainless Steel	Oil, Solvents, Water	500 psi	149 °C	-40 °C	1/2 in	NPT Male	0.85	Approximately 1/2 the float travel in liquid of 1.0 specific gravity	Selectable Normally Open or Normally Closed	1 A @ 60 or 120 Vac/Vdc	SPST	20 AWG
LVN-9083,910 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, RoHS, UKCA, UL cULus	24 in	IP68, NEMA Type 6	PVC	CPVC	CPVC	Oil, Solvents, Water	100 psi	82 °C	-40 °C	1/2 in	NPT Male	0.71	Approximately 1/2 the float travel in liquid of 1.0 specific gravity	Selectable Normally Open or Normally Closed	1 A @ 60 or 120 Vac/Vdc	SPST	20 AWG
LVN-9298,480 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, RoHS, UKCA, UL cULus	24 in	IP68, NEMA Type 6	PVC	Polypropylene	Polypropylene	Oil, Solvents, Water	100 psi	82 °C	-40 °C	1/2 in	NPT Male	0.49	Approximately 1/2 the float travel in liquid of 1.0 specific gravity	Selectable Normally Open or Normally Closed	1 A @ 60 or 120 Vac/Vdc	SPST	20 AWG
LVN-91126,560 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, RoHS, UKCA, UL cULus	24 in	IP68, NEMA Type 6	PVC	PVDF	PVDF	Oil, Solvents, Water	100 psi	82 °C	-40 °C	1/2 in	NPT Male	0.88	Approximately 1/2 the float travel in liquid of 1.0 specific gravity	Selectable Normally Open or Normally Closed	1 A @ 60 or 120 Vac/Vdc	SPST	20 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Approvals

Cable Length

Enclosure Ratings

Insulation

Material Construction Option

Materials, Wetted

Media Compatibility

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Process Connection Size

Process Connection Type

Specific Gravity

Switch Note

Switch Operation

Switch Rating

Switch Type

Wire Gauge

수량 / 장바구니

LVN-93358,150 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, RoHS, UKCA, UL cULus

24 in

IP68, NEMA Type 6

PVC

316 Stainless Steel

Oil, Solvents, Water

500 psi

149 °C

-40 °C

1/2 in

NPT Male

0.85

Approximately 1/2 the float travel in liquid of 1.0 specific gravity

Selectable Normally Open or Normally Closed

1 A @ 60 or 120 Vac/Vdc

SPST

20 AWG

LVN-9083,910 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, RoHS, UKCA, UL cULus

24 in

IP68, NEMA Type 6

PVC

CPVC

Oil, Solvents, Water

100 psi

82 °C

-40 °C

1/2 in

NPT Male

0.71

Approximately 1/2 the float travel in liquid of 1.0 specific gravity

Selectable Normally Open or Normally Closed

1 A @ 60 or 120 Vac/Vdc

SPST

20 AWG

LVN-9298,480 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, RoHS, UKCA, UL cULus

24 in

IP68, NEMA Type 6

PVC

Polypropylene

Oil, Solvents, Water

100 psi

82 °C

-40 °C

1/2 in

NPT Male

0.49

Approximately 1/2 the float travel in liquid of 1.0 specific gravity

Selectable Normally Open or Normally Closed

1 A @ 60 or 120 Vac/Vdc

SPST

20 AWG

LVN-91126,560 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, RoHS, UKCA, UL cULus

24 in

IP68, NEMA Type 6

PVC

PVDF

Oil, Solvents, Water

100 psi

82 °C

-40 °C

1/2 in

NPT Male

0.88

Approximately 1/2 the float travel in liquid of 1.0 specific gravity

Selectable Normally Open or Normally Closed

1 A @ 60 or 120 Vac/Vdc

SPST

20 AWG
