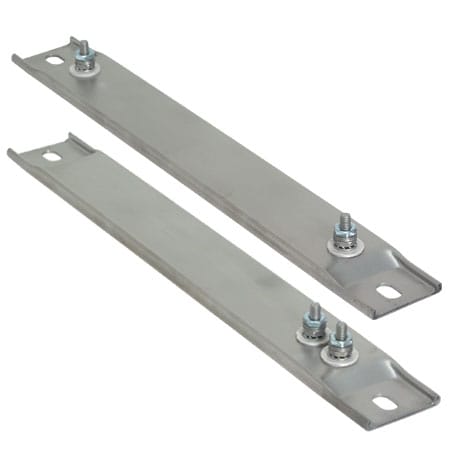

스테인리스 스틸 스트립 히터 반대쪽 끝 단자
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 33개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Applications | Current, Max | Form factor | Heater Power | Height | Mounting Slot Size | Number of Mounting Holes | Physical Size Construction Limitations | Power Density | Power Density, Max | Power Density, Min | Power Tolerance | Resistance Tolerance | Sheath Material | Sheath Temperature, Max | Special Bushings Size | Strip Length | Supply Voltage | Termination | Voltage Note | Voltage, Max | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CSH00331222,090 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1200 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 23 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 19.5 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00343148,950 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 250 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 21 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 8 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00325가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 42 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 8 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00322가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 42 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 8 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00317148,950 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 150 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 21 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 6 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00287가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 13 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 37.25 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00290가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1250 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 9 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 42.5 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00268가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1000 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 13 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 25.5 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00264가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 22 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 22 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00259가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 7 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 23.75 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00263가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1000 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 15 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 23.75 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00258가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 7 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 23.75 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00252가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1000 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 19 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 19.5 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00250가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 750 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 14 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 19.5 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00230가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 20 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 12 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00242가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 11 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 9.5 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00225가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 300 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 18 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 9.5 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00222가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 200 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 12 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 9.5 in | 120 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00221가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 250 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 23 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 8 in | 240 Vac | 1 Terminal On Each End | 480 Vac (when applicable) | 480 Vac | |
CSH00214가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1800 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 8 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 63.875 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac |
