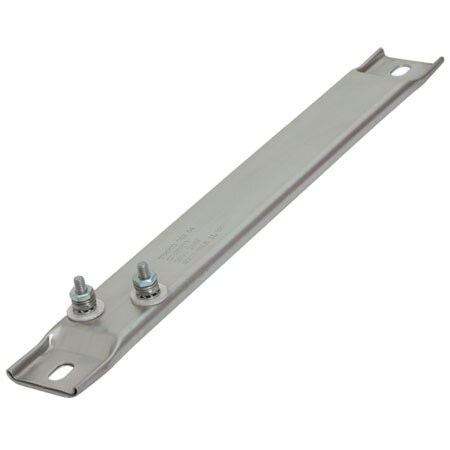

스테인리스 스틸 스트립 히터 대각선 단자
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Applications | Current, Max | Form factor | Heater Power | Height | Mounting Slot Size | Number of Mounting Holes | Physical Size Construction Limitations | Power Density | Power Density, Max | Power Density, Min | Power Tolerance | Resistance Tolerance | Sheath Material | Sheath Temperature, Max | Special Bushings Size | Strip Length | Supply Voltage | Termination | Voltage Note | Voltage, Max | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CSH00315가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 7 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 62 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00313가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1000 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 9 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 36 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00303277,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1000 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 20 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 18 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00308가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 1600 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 20 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 26 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00298220,500 원13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 18 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 12 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00297220,500 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 400 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 19 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 10.5 in | 120 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00296220,500 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 250 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 12 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 10.5 in | 120 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac | |
CSH00295가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Dies, Food and Beverage, Food Processing Equipment, Heat and Energy Systems, Heating Equipment, Molds | Lead Wire Termination: 10 amp ; Screw Terminations: 10-32UNF—25 amp | Strip | 500 W | 0 in | 8 mm x 13 mm | 2 | Width:16 mm (5/8") Wide Heaters: +0.000, -0.005";25 mm and 38 mm (1 and 1 1/2") Wide Heaters: +0.000, -0.010"; Thickness: 6 mm (1/4") Thick Heaters: +0.000, –0.005",8 and 10 mm (5/16 and 3/8") Thick Heaters: +0.000, –0.008";[10 mm (3/8") thick heaters have radius corners];Length:Up to 24": ± 1/16";Over 24": ± 1/8" | 20 W/in² | 45 W/in² | 31 W/in² | 5%, -10% | 10%, -5% | 304 Stainless Steel | 650 °C | 13 mm x 16 mm | 9 in | 240 Vac | Terminals parallel on one side | 480 Vac (when applicable) | 480 Vac |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
