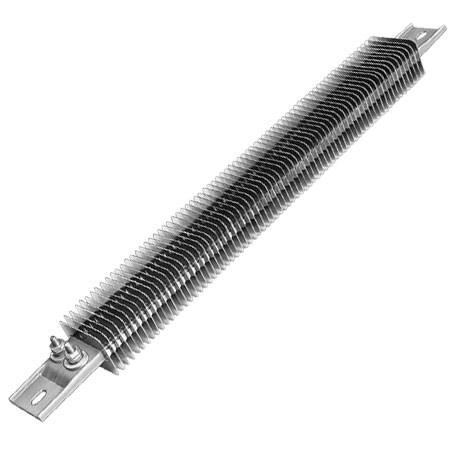

CSF3 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 15개의 상품

제품 번호 / 가격	Brand	Applications	Current, Max	Fins Material	Form factor	Heater Power	Height Including Fins	Length Tolerance	Mounting Slot Size	Number of Mounting Holes	Power Density, Min	Power Tolerance	Resistance Tolerance	Sheath Material	Sheath Temperature, Max	Slot Size For Secondary Insulating Bushing	Supply Voltage	Termination	Thread Size	Thread Type	Voltage Note	Voltage, Max	Width Including Fins
CSF00028가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	2500 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	30 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00033가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	3150 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	30 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00027가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	2400 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	32 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00024가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1900 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00017가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1550 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00015가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1250 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00016가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1550 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00014가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1250 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00013가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1100 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00009가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	900 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00012가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1100 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00004가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	725 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00003가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	725 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	31 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00002가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	500 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	21 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00001가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	500 W	35 mm	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	21 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Applications

Current, Max

Fins Material

Form factor

Heater Power

Height

Height Including Fins

Length Tolerance

Mounting Slot Size

Number of Mounting Holes

Power Density, Min

Power Tolerance

Resistance Tolerance

Sheath Material

Sheath Temperature, Max

Slot Size For Secondary Insulating Bushing

Supply Voltage

Termination

Thread Size

Thread Type

Voltage Note

Voltage, Max

Width Including Fins

수량 / 장바구니

CSF00028가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

2500 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

30 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00033가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

3150 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

30 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00027가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

2400 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

32 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00024가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1900 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00017가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1550 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00015가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1250 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00016가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1550 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00014가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1250 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00013가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1100 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00009가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

900 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00012가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1100 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00004가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

725 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00003가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

725 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

31 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00002가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

500 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

21 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00001가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

500 W

0 in

35 mm

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

21 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm
