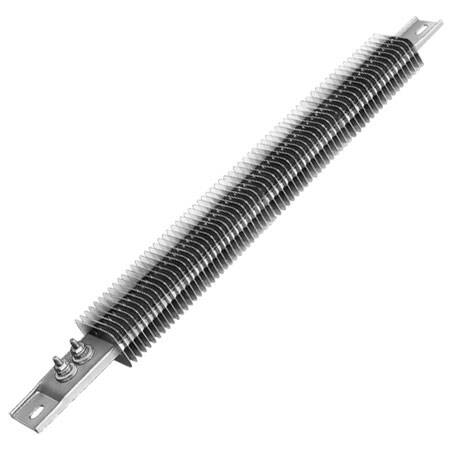

CSF2 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 8개의 상품

제품 번호 / 가격	Brand	Applications	Current, Max	Fins Material	Form factor	Heater Power	Height Including Fins	Length	Length Tolerance	Mounting Slot Size	Number of Mounting Holes	Power Density, Min	Power Tolerance	Resistance Tolerance	Sheath Material	Sheath Temperature, Max	Slot Size For Secondary Insulating Bushing	Supply Voltage	Termination	Thread Size	Thread Type	Voltage Note	Voltage, Max	Width Including Fins
CSF00166가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	2400 W	35 mm	25 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	33 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00152가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1700 W	35 mm	19.5 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	30 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00151가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1700 W	35 mm	19.5 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	30 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00142가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1250 W	35 mm	15.25 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	34 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00133285,020 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	900 W	35 mm	12 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	36 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00141354,980 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	1250 W	35 mm	15.25 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	34 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00128272,480 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	725 W	35 mm	10.5 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	36 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	240 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm
CSF00127272,480 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Food and Beverage, Food Processing Equipment, Heating Equipment	25 A	Nickel Plated Steel	Finned	725 W	35 mm	10.5 in	Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"	8 mm x 13 mm	2	36 W/in²	5%, -10%	10%, -5%	304 Stainless Steel	650 °C	13 mm x 16 mm	120 Vac	Terminals parallel on one side	10-32	UNF	480 Vac (when applicable)	480 Vac	51 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Applications

Current, Max

Fins Material

Form factor

Heater Power

Height

Height Including Fins

Length

Length Tolerance

Mounting Slot Size

Number of Mounting Holes

Power Density, Min

Power Tolerance

Resistance Tolerance

Sheath Material

Sheath Temperature, Max

Slot Size For Secondary Insulating Bushing

Supply Voltage

Termination

Thread Size

Thread Type

Voltage Note

Voltage, Max

Width Including Fins

수량 / 장바구니

CSF00166가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

2400 W

0 in

35 mm

25 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

33 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00152가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1700 W

0 in

35 mm

19.5 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

30 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00151가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1700 W

0 in

35 mm

19.5 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

30 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00142가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1250 W

0 in

35 mm

15.25 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

34 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00133285,020 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

900 W

0 in

35 mm

12 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

36 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00141354,980 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

1250 W

0 in

35 mm

15.25 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

34 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00128272,480 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

725 W

0 in

35 mm

10.5 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

36 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

240 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm

CSF00127272,480 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Food and Beverage, Food Processing Equipment, Heating Equipment

25 A

Nickel Plated Steel

Finned

725 W

0 in

35 mm

10.5 in

Up to 0.61 m (24") ± 1/16", over 0.61 m (24") ± 1/8"

8 mm x 13 mm

36 W/in²

5%, -10%

10%, -5%

304 Stainless Steel

650 °C

13 mm x 16 mm

120 Vac

Terminals parallel on one side

10-32

UNF

480 Vac (when applicable)

480 Vac

51 mm
