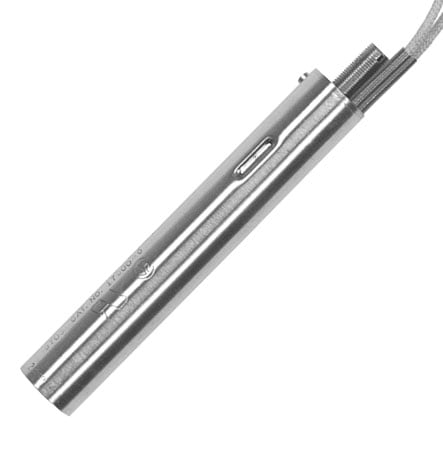

황동 또는 스테인리스 스틸 카트리지 히터 2인치 NPT
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 7개의 상품
| 제품 번호 / 가격 | Brand | Additional Features | Applications | Contact Type | Enclosure Type | Form factor | Heating Element Diameter | Heating Element Length | Number of Phases | Operating Temperature, Max | Operating Temperature, Min | Sheath Material | Supply Current | Supply Voltage | Weight | Process Connection Size | Process Connection Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18023-02,679,320 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Close | N/A | Coupling Head Immersion | 0.625 in | 4.65 in | 1 | 315 °C | -73 °C | 321 Stainless Steel | up to 10 A at 120 V (5 A at 240 V) | 120/240 Vac | 5 lb | 1/2 in | NPT Male | |
18021-0가격 문의101 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Close | N/A | Coupling Head Immersion | 0.625 in | 4.65 in | 1 | 204 °C | -73 °C | 321 Stainless Steel | up to 10 A at 120 V (5 A at 240 V) | 120/240 Vac | 5 lb | 1/2 in | NPT Male | |
18002-01,181,460 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Open | N/A | Coupling Head Immersion | 0.625 in | 4.65 in | 1 | 315 °C | -73 °C | 321 Stainless Steel | up to 10 A at 120 V (5 A at 240 V) | 120/240 Vac | 5 lb | 1/2 in | NPT Male | |
17052-01,064,960 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Open | N/A | Cartridge Immersion | 0.81 in | 3.72 in | 1 | 315 °C | -73 °C | 321 Stainless Steel | up to 25 A at 120 V (12.5 A at 240 V) | 120/240 Vac | 3 lb | - | - | |
17023-0978,870 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Close | N/A | Cartridge Immersion | 0.625 in | 3.72 in | 1 | 315 °C | -73 °C | 321 Stainless Steel | up to 10 A at 120 V (5 A at 240 V) | 120/240 Vac | 2 lb | - | - | |
17021-0940,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Close | N/A | Cartridge Immersion | 0.625 in | 3.72 in | 1 | 204 °C | -73 °C | 321 Stainless Steel | up to 10 A at 120 V (5 A at 240 V) | 120/240 Vac | 2 lb | - | - | |
17002-0가격 문의23 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | • Adjustable range from -73 to 316°C (-100 to 600°F) offers wide field of application; • Resolution sensitivity of -0.1°C (0.1°F) offers close control of process • Compact size; lengths under 127 mm (5") and diameters less than 20.6 mm (13⁄16") fit almost any application • Fast response as external metal shell expands or contracts with each temperature change • Sheathing is brass for low range units; stainless steel for higher temperature use • Couplings for hex head and coupling head types are brass with standard pipe threads for mounting. Hex head and coupling head immersion types are screwed directly through the threaded opening in tank or duct or directly into a pipeline containing gas or liquid. The coupling head unit may be directly attached to electrical conduit by means of standard male pipe threads. | Dies, Heat Sealing, Hot Melt Adhesive Machinery, Labeling, Molds, Packaging, Platens | Open | N/A | Cartridge Immersion | 0.625 in | 3.72 in | 1 | 315 °C | -73 °C | 321 Stainless Steel | up to 10 A at 120 V (5 A at 240 V) | 120/240 Vac | 2 lb | - | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
