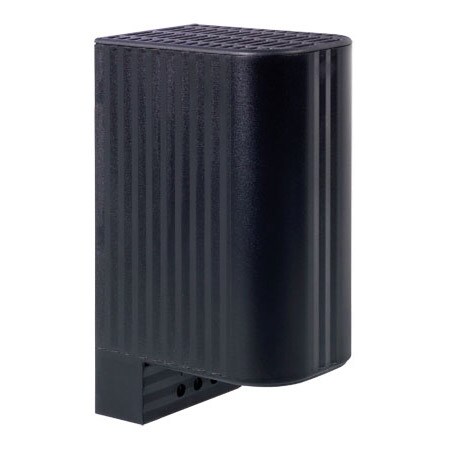

CS060-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Air Outlet Temperature	Electrical Connection	Enclosure Ratings	Fitting position	Form factor	Heater Power	Heating Element Material	Height	Housing Material	Inrush Current	Length	Operating Temperature, Max	Operating Temperature, Min	Protection	Storage Temperature, Max	Storage Temperature, Min	Supply Voltage	Surface Temperature Note	Surface Temperature, Max	Weight	Width	Wire Gauge
CS0601276,810 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	120 °C	Screw Terminal	IP20, NEMA Type 2	Vertical	DIN Clip for 35 mm	100 W	PTC resistor	110 mm	Plastic	Inrush Current, Max: 4.5 A	90 mm	70 °C	-20 °C	II (Double insulated)	70 °C	-45 °C	120 to 240 Vac/Vdc	<80°C (176°F), except upper protective grille	80 °C	0.3 kg	60 mm	16 AWG
CS0602312,050 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	145 °C	Screw Terminal	IP20, NEMA Type 2	Vertical	DIN Clip for 35 mm	150 W	PTC resistor	150 mm	Plastic	Inrush Current, Max: 8 A	90 mm	70 °C	-20 °C	II (Double insulated)	70 °C	-45 °C	120 to 240 Vac/Vdc	<80°C (176°F), except upper protective grille	80 °C	0.3 kg	60 mm	16 AWG
CS0600가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	86 °C	Screw Terminal	IP20, NEMA Type 2	Vertical	DIN Clip for 35 mm	50 W	PTC resistor	110 mm	Plastic	Inrush Current, Max: 2.5 A	90 mm	70 °C	-20 °C	II (Double insulated)	70 °C	-45 °C	120 to 240 Vac/Vdc	<80°C (176°F), except upper protective grille	80 °C	0.3 kg	60 mm	16 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Air Outlet Temperature

Electrical Connection

Enclosure Ratings

Fitting position

Form factor

Heater Power

Heating Element Material

Height

Housing Material

Inrush Current

Length

Operating Temperature, Max

Operating Temperature, Min

Protection

Storage Temperature, Max

Storage Temperature, Min

Supply Voltage

Surface Temperature Note

Surface Temperature, Max

Weight

Width

Wire Gauge

수량 / 장바구니

CS0601276,810 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

120 °C

Screw Terminal

IP20, NEMA Type 2

Vertical

DIN Clip for 35 mm

100 W

PTC resistor

110 mm

Plastic

Inrush Current, Max: 4.5 A

90 mm

70 °C

-20 °C

II (Double insulated)

70 °C

-45 °C

120 to 240 Vac/Vdc

<80°C (176°F), except upper protective grille

80 °C

0.3 kg

60 mm

16 AWG

CS0602312,050 원18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

145 °C

Screw Terminal

IP20, NEMA Type 2

Vertical

DIN Clip for 35 mm

150 W

PTC resistor

150 mm

Plastic

Inrush Current, Max: 8 A

90 mm

70 °C

-20 °C

II (Double insulated)

70 °C

-45 °C

120 to 240 Vac/Vdc

<80°C (176°F), except upper protective grille

80 °C

0.3 kg

60 mm

16 AWG

CS0600가격 문의27 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

86 °C

Screw Terminal

IP20, NEMA Type 2

Vertical

DIN Clip for 35 mm

50 W

PTC resistor

110 mm

Plastic

Inrush Current, Max: 2.5 A

90 mm

70 °C

-20 °C

II (Double insulated)

70 °C

-45 °C

120 to 240 Vac/Vdc

<80°C (176°F), except upper protective grille

80 °C

0.3 kg

60 mm

16 AWG
