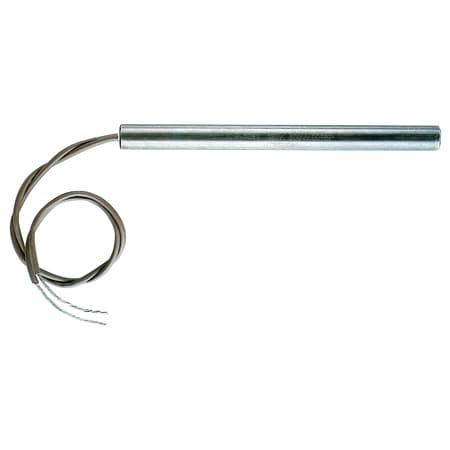

인코로이 카트리지 히터 0.375인치 외경, 길이 1.25~24인치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 172개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Additional Features 1 | Cartridge Length | Heater Diameter | Heater Power | Heater Wire Material | Heater Wire Material Note | Insulation | Internal Connection | Lead Length | Lead Length Note | Lead Material | Lead Temperature, Max | Power Density | Sheath Material | Sheath Material Note | Sheath Temperature, Max | Supply Voltage | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIR-20404/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 4.8125 in | 0.375 in | 500 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 97 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.09 kg | |
CIR-20402/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 4.5 in | 0.375 in | 500 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 106 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.08 kg | |
CIR-20402/120V가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 4.5 in | 0.375 in | 500 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 106 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.08 kg | |
CIR-20401/120V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 4.5 in | 0.375 in | 300 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 64 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.08 kg | |
CIR-20401/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 4.5 in | 0.375 in | 300 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 64 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.08 kg | |
CIR-20303/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 3.8125 in | 0.375 in | 500 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 128 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.07 kg | |
CIR-20302/240V153,310 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 3 in | 0.375 in | 400 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 137 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.05 kg | |
CIR-20302/120V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 3 in | 0.375 in | 400 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 137 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.05 kg | |
CIR-20301/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 3 in | 0.375 in | 300 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 103 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.05 kg | |
CIR-20301/120V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 3 in | 0.375 in | 300 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 103 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.05 kg | |
CIR-20254/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.8125 in | 0.375 in | 300 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 109 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.05 kg | |
CIR-20252/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.5 in | 0.375 in | 500 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 214 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.05 kg | |
CIR-20253/120V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.8125 in | 0.375 in | 250 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 91 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.05 kg | |
CIR-20252/120V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.5 in | 0.375 in | 500 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 214 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.05 kg | |
CIR-20251/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.5 in | 0.375 in | 250 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 107 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.05 kg | |
CIR-20251/120V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.5 in | 0.375 in | 250 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 107 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.05 kg | |
CIR-20227/240V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.25 in | 0.375 in | 350 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 172 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 240 Vac | 0.4 kg | |
CIR-20227/120V가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.25 in | 0.375 in | 350 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 172 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.4 kg | |
CIR-20226/120V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.25 in | 0.375 in | 175 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 86 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.4 kg | |
CIR-20225/120V가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Standard | 2.25 in | 0.375 in | 75 W | Nickel-chromium resistance wire | Premium grade nickel chromium resistance wire for longer life, and consistent performance | Refractory Metal | Connector for high reliability and longer life; vibration and shock resistant construction | 14 in | Type “F”; stranded, flexible Manganese Nickel Wireinsulated with fiberglass, max. temp 450CELSIUS (842FAHRENHEIT), 14" standard length. Longer leads available | Nickel Wire | 450 °C | 37 W/in² | Incoloy | Material, Incoloy; black oxide finish for efficient heat transfer; max temp 816CELSIUS (1500FAHRENHEIT) welded, sealed tip | 816 °C | 120 Vac | 0.4 kg |
