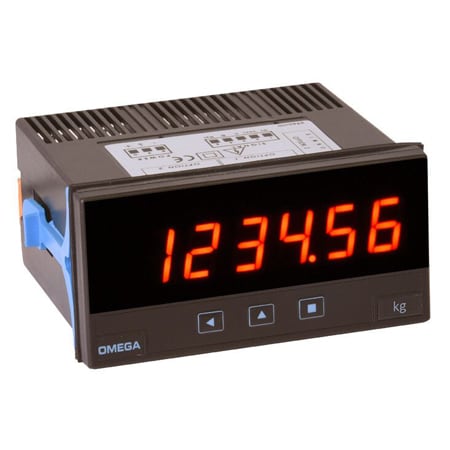

스트레인 미터 - 6자리 디스플레이 및 3개의 릴레이 출력
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 18개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Acquisitions per Second | Control Output | Cutout Dimensions | Data Interface | Display Note | Display Type | Electrical Connection | Enclosure Ratings | External Contact | Form factor | Height | Impedance Input | Input Configuration | Input Range Note | Input Type | Length | Load Cell Type | Measurement Type | Mounting | Number of Cells | Number of Digits | Number of Inputs | Number of Relays | Number of Wires | Operating Temperature, Max | Operating Temperature, Min | Output Signal | Power Consumption | Power Consumption Note | Power Wires | Sampling Rate | Sensor Excitation | Step Response | Step Response Note | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | Supply Voltage | Thermal Stability | Weight | Width | Output Detail | Data Interface Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DPS20-LV-R1-R1-RTU1,011,010 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | RS485 | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 2 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | Module-RTU Type of bus: RS-485, up to 57.6 Kbps, Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | |
DPS20-HV-R1-R1-RTU953,890 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | RS485 | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 2 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | Module-RTU Type of bus: RS-485, up to 57.6 Kbps, Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | |
DPS20-LV-R1-R1-R1912,130 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 3 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-HV-R1-R1-R1876,970 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 3 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-LV-R1-R1-AO1,065,960 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 2 | 4, 6 | 50 °C | 0 °C | Current, Voltage | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Analog output-Module: AO, Output signal: 4/20 mA, 0/10 Vdc (mA active and passive), Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3; Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-HV-R1-R1-AO986,850 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 2 | 4, 6 | 50 °C | 0 °C | Current, Voltage | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Analog output-Module: AO, Output signal: 4/20 mA, 0/10 Vdc (mA active and passive), Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3; Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-LV-R1-R1855,010 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 2 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-LV-R1-AO934,100 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 1 | 4, 6 | 50 °C | 0 °C | Current, Voltage | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Analog output-Module: AO, Output signal: 4/20 mA, 0/10 Vdc (mA active and passive), Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3; Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-HV-R1-AO934,100 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 1 | 4, 6 | 50 °C | 0 °C | Current, Voltage | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Analog output-Module: AO, Output signal: 4/20 mA, 0/10 Vdc (mA active and passive), Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3; Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-HV-R1-R1789,050 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 2 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-LV-RTU868,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | N/A | 1.74 x 3.63 in | RS485 | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | N/A | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | - | Module-RTU Type of bus: RS-485, up to 57.6 Kbps, Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | |
DPS20-HV-RTU789,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | N/A | 1.74 x 3.63 in | RS485 | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | N/A | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | - | Module-RTU Type of bus: RS-485, up to 57.6 Kbps, Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | |
DPS20-LV-R1736,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 1 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-LV-AO868,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | N/A | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | N/A | 4, 6 | 50 °C | 0 °C | Current, Voltage | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | Analog output-Module: AO, Output signal: 4/20 mA, 0/10 Vdc (mA active and passive), Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-HV-R1692,340 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | Relay | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 1 | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Module-R1 Type of relay: 3 contacts (Com, NO, NC), Max. current: 8A (resistive load), Max. voltage: 250 Vac continuous, Isolation: 3500Veff, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-LV657,200 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | N/A | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | N/A | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 11 to 60 Vdc, 24 to 48 Vac | 50ppm/°C | 150 g | 3.48 in | - | - | |
DPS20-HV-AO824,220 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | N/A | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | 1 | 4, 6 | 50 °C | 0 °C | Current, Voltage | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | Analog output-Module: AO, Output signal: 4/20 mA, 0/10 Vdc (mA active and passive), Accuracy: 0.1% FS, Isolation: 1000Vdc, Terminal: plug-in screw terminal, pitch 5.08mm, Installation allowed at: Opt.1, Opt.2 and Opt.3 | - | |
DPS20-HV572,270 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.05 % | 16, 50 or 60 acq./sec. (configurable) | N/A | 1.74 x 3.63 in | N/A | Digits: 6; Reading: 999999/-199999; Decimal Point: Configurable; LED color: Red Digit; Height: 14mm (0.55’’) | LED | Screw Terminal | IP65, NEMA Type 4 | Configurable Functions | 1/8 DIN | 1.89 in | 20 MΩ | Front Keypad | 100mV, 30mV, 20mV, 15mV, 10mV, 5mV | Strain | 3.58 in | 1 mV/V, 2 mV/V, 3 mV/V | Strain | Panel | 1 to 8 load cells (at 5 Vdc) and 1 to 4 load cells (at 10 Vdc) | 6 | 1 | N/A | 4, 6 | 50 °C | 0 °C | N/A | 1.5 W 4 W | <1.5W (meter only) and <4.0W (meter with output options) | max. 2.5mm² | 60 Hz (60 updates/second) | 5 Vdc or 10 Vdc (configurable), Maximum Exc. Current: 140 mA, Maximum Vdc at Input: ± 30 Vdc | 17, 20 or 63 mSec (0% to 99% of signal) | 17, 20 or 63 mSec (Configurable) | 70 °C | -20 °C | AC/DC | 85 to 265 Vac/Vdc | 50ppm/°C | 150 g | 3.48 in | - | - |
