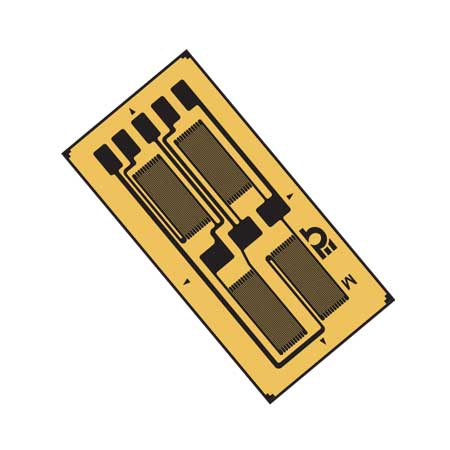

SGT-Rev-Bend-FullBridge

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 12개의 상품

제품 번호 / 가격	Brand	Carrier Length	Carrier Width	Electrical Connection	Gauge Type	Grid Length	Grid Length Range	Grid Style	Grid Width	Input Voltage	Material Construction Option	Nominal Resistance	Operating Temperature, Max	Operating Temperature, Min	Pack Size	Voltage, Max
SGT-3F/350-FB43302,930 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	15.9 mm	6.8 mm	Solder Pads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	11 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	11 Vrms
SGT-3F/350-FB41301,280 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	15.9 mm	6.8 mm	Solder Pads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	7.5 Vac	Steel	350 Ω	95 °C	-75 °C	5	7.5 Vrms
SGT-3F/350-FB13331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	15.9 mm	6.8 mm	Wire Leads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	11 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	11 Vrms
SGT-3E/350-FB43338,570 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	13.8 mm	6.8 mm	Solder Pads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	11 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	11 Vrms
SGT-3F/350-FB11331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	15.9 mm	6.8 mm	Wire Leads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	7.5 Vac	Steel	350 Ω	95 °C	-75 °C	5	7.5 Vrms
SGT-3E/350-FB41301,280 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	13.8 mm	6.8 mm	Solder Pads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	7.5 Vac	Steel	350 Ω	95 °C	-75 °C	5	7.5 Vrms
SGT-3E/350-FB11329,990 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	13.8 mm	6.8 mm	Wire Leads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	7.5 Vac	Steel	350 Ω	95 °C	-75 °C	5	7.5 Vrms
SGT-3E/350-FB13329,990 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	13.8 mm	6.8 mm	Wire Leads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3.2 mm	6 mm	Full bridge	1.5 mm	11 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	11 Vrms
SGT-3/1000-FB43331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	28 mm	4.9 mm	Solder Pads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3 mm	3 mm	Full bridge	1.6 mm	17 Vac	Aluminum	1000 Ω	95 °C	-75 °C	5	17 Vrms
SGT-3/1000-FB41331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	28 mm	4.9 mm	Solder Pads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3 mm	3 mm	Full bridge	1.6 mm	13 Vac	Steel	1000 Ω	95 °C	-75 °C	5	13 Vrms
SGT-3/1000-FB13346,250 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	28 mm	4.9 mm	Wire Leads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3 mm	3 mm	Full bridge	1.6 mm	17 Vac	Aluminum	1000 Ω	95 °C	-75 °C	5	17 Vrms
SGT-3/1000-FB11344,320 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	28 mm	4.9 mm	Wire Leads	Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)	3 mm	3 mm	Full bridge	1.6 mm	13 Vac	Steel	1000 Ω	95 °C	-75 °C	5	13 Vrms

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Carrier Length

Carrier Width

Electrical Connection

Gauge Type

Grid Length

Grid Length Range

Grid Style

Grid Width

Input Voltage

Material Construction Option

Nominal Resistance

Operating Temperature, Max

Operating Temperature, Min

Pack Size

Voltage, Max

수량 / 장바구니

SGT-3F/350-FB43302,930 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

15.9 mm

6.8 mm

Solder Pads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

11 Vac

Aluminum

350 Ω

95 °C

-75 °C

11 Vrms

SGT-3F/350-FB41301,280 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

15.9 mm

6.8 mm

Solder Pads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

7.5 Vac

Steel

350 Ω

95 °C

-75 °C

7.5 Vrms

SGT-3F/350-FB13331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

15.9 mm

6.8 mm

Wire Leads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

11 Vac

Aluminum

350 Ω

95 °C

-75 °C

11 Vrms

SGT-3E/350-FB43338,570 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

13.8 mm

6.8 mm

Solder Pads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

11 Vac

Aluminum

350 Ω

95 °C

-75 °C

11 Vrms

SGT-3F/350-FB11331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

15.9 mm

6.8 mm

Wire Leads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

7.5 Vac

Steel

350 Ω

95 °C

-75 °C

7.5 Vrms

SGT-3E/350-FB41301,280 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

13.8 mm

6.8 mm

Solder Pads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

7.5 Vac

Steel

350 Ω

95 °C

-75 °C

7.5 Vrms

SGT-3E/350-FB11329,990 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

13.8 mm

6.8 mm

Wire Leads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

7.5 Vac

Steel

350 Ω

95 °C

-75 °C

7.5 Vrms

SGT-3E/350-FB13329,990 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

13.8 mm

6.8 mm

Wire Leads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3.2 mm

6 mm

Full bridge

1.5 mm

11 Vac

Aluminum

350 Ω

95 °C

-75 °C

11 Vrms

SGT-3/1000-FB43331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

28 mm

4.9 mm

Solder Pads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3 mm

Full bridge

1.6 mm

17 Vac

Aluminum

1000 Ω

95 °C

-75 °C

17 Vrms

SGT-3/1000-FB41331,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

28 mm

4.9 mm

Solder Pads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3 mm

Full bridge

1.6 mm

13 Vac

Steel

1000 Ω

95 °C

-75 °C

13 Vrms

SGT-3/1000-FB13346,250 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

28 mm

4.9 mm

Wire Leads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3 mm

Full bridge

1.6 mm

17 Vac

Aluminum

1000 Ω

95 °C

-75 °C

17 Vrms

SGT-3/1000-FB11344,320 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

28 mm

4.9 mm

Wire Leads

Full bridge pattern for double bending beam, higher resistance, reduced heat generation, center line spacing 15 mm (0.59”)

3 mm

Full bridge

1.6 mm

13 Vac

Steel

1000 Ω

95 °C

-75 °C

13 Vrms
