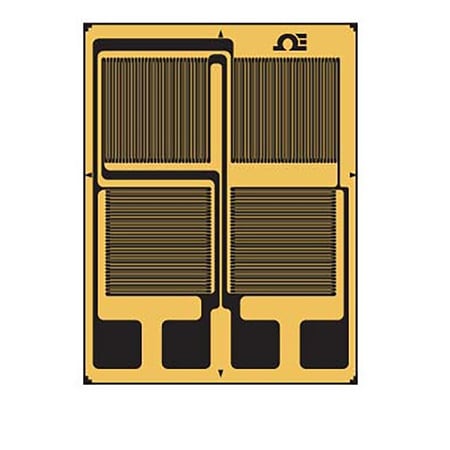

SGT-Full-Bridge-Diaphragm

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 16개의 상품

제품 번호 / 가격	Brand	Carrier Length	Carrier Width	Electrical Connection	Gauge Type	Grid Length	Grid Length Range	Grid Style	Grid Width	Input Voltage	Material Construction Option	Nominal Resistance	Operating Temperature, Max	Operating Temperature, Min	Pack Size	Voltage, Max
SGT-4/1000-FB43356,410 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	14.8 mm	11.1 mm	Solder Pads	Full bridge for bending or axial strain, single surface gaging	4 mm	6 mm	Full bridge	4.3 mm	33 Vac	Aluminum	1000 Ω	95 °C	-75 °C	5	33 Vrms
SGT-4/1000-FB41356,410 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	14.8 mm	11.1 mm	Solder Pads	Full bridge for bending or axial strain, single surface gaging	4 mm	6 mm	Full bridge	4.3 mm	23 Vac	Steel	1000 Ω	95 °C	-75 °C	5	23 Vrms
SGT-4/1000-FB11389,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	14.8 mm	11.1 mm	Wire Leads	Full bridge for bending or axial strain, single surface gaging	4 mm	6 mm	Full bridge	4.3 mm	23 Vac	Steel	1000 Ω	95 °C	-75 °C	5	23 Vrms
SGT-4/1000-FB13369,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	14.8 mm	11.1 mm	Wire Leads	Full bridge for bending or axial strain, single surface gaging	4 mm	6 mm	Full bridge	4.3 mm	33 Vac	Aluminum	1000 Ω	95 °C	-75 °C	5	33 Vrms
SGT-3G/350-FB43344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10.5 mm	9.3 mm	Solder Pads	Full Bridge	2.5 mm	3 mm	Full bridge	2.9 mm	13 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	13 Vrms
SGT-3G/350-FB41328,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10.5 mm	9.3 mm	Solder Pads	Full Bridge	2.5 mm	3 mm	Full bridge	2.9 mm	9 Vac	Steel	350 Ω	95 °C	-75 °C	5	9 Vrms
SGT-3G/350-FB13355,780 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10.5 mm	9.3 mm	Wire Leads	Full Bridge	2.5 mm	3 mm	Full bridge	2.9 mm	13 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	13 Vrms
SGT-2/1000-FB41344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	8 mm	6.5 mm	Solder Pads	Full bridge for bending or axial strain, single surface gaging	1.8 mm	3 mm	Full bridge	2.4 mm	12 Vac	Steel	1000 Ω	95 °C	-75 °C	5	12 Vrms
SGT-2/1000-FB43344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	8 mm	6.5 mm	Solder Pads	Full bridge for bending or axial strain, single surface gaging	1.8 mm	3 mm	Full bridge	2.4 mm	16 Vac	Aluminum	1000 Ω	95 °C	-75 °C	5	16 Vrms
SGT-2/1000-FB13375,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	8 mm	6.5 mm	Wire Leads	Full bridge for bending or axial strain, single surface gaging	1.8 mm	3 mm	Full bridge	2.4 mm	16 Vac	Aluminum	1000 Ω	95 °C	-75 °C	5	16 Vrms
SGT-2/1000-FB11375,780 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	8 mm	6.5 mm	Wire Leads	Full bridge for bending or axial strain, single surface gaging	1.8 mm	3 mm	Full bridge	2.4 mm	12 Vac	Steel	1000 Ω	95 °C	-75 °C	5	12 Vrms
SGT-2/350-FB43344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 mm	9 mm	Solder Pads	Full bridge for bending or axial strain	1.8 mm	3 mm	Full bridge	2 mm	9 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	9 Vrms
SGT-2/350-FB41346,110 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 mm	9 mm	Solder Pads	Full bridge for bending or axial strain	1.8 mm	3 mm	Full bridge	2 mm	6.5 Vac	Steel	350 Ω	95 °C	-75 °C	5	6.5 Vrms
SGT-2/350-FB13375,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 mm	9 mm	Wire Leads	Full bridge for bending or axial strain	1.8 mm	3 mm	Full bridge	2 mm	9 Vac	Aluminum	350 Ω	95 °C	-75 °C	5	9 Vrms
SGT-2/350-FB11409,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10 mm	9 mm	Wire Leads	Full bridge for bending or axial strain	1.8 mm	3 mm	Full bridge	2 mm	6.5 Vac	Steel	350 Ω	95 °C	-75 °C	5	6.5 Vrms
SGT-3G/350-FB11381,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	10.5 mm	9.3 mm	Wire Leads	Full Bridge	2.5 mm	3 mm	Full bridge	2.9 mm	9 Vac	Steel	350 Ω	95 °C	-75 °C	5	9 Vrms

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Carrier Length

Carrier Width

Electrical Connection

Gauge Type

Grid Length

Grid Length Range

Grid Style

Grid Width

Input Voltage

Material Construction Option

Nominal Resistance

Operating Temperature, Max

Operating Temperature, Min

Pack Size

Voltage, Max

수량 / 장바구니

SGT-4/1000-FB43356,410 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

14.8 mm

11.1 mm

Solder Pads

Full bridge for bending or axial strain, single surface gaging

4 mm

6 mm

Full bridge

4.3 mm

33 Vac

Aluminum

1000 Ω

95 °C

-75 °C

33 Vrms

SGT-4/1000-FB41356,410 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

14.8 mm

11.1 mm

Solder Pads

Full bridge for bending or axial strain, single surface gaging

4 mm

6 mm

Full bridge

4.3 mm

23 Vac

Steel

1000 Ω

95 °C

-75 °C

23 Vrms

SGT-4/1000-FB11389,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

14.8 mm

11.1 mm

Wire Leads

Full bridge for bending or axial strain, single surface gaging

4 mm

6 mm

Full bridge

4.3 mm

23 Vac

Steel

1000 Ω

95 °C

-75 °C

23 Vrms

SGT-4/1000-FB13369,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

14.8 mm

11.1 mm

Wire Leads

Full bridge for bending or axial strain, single surface gaging

4 mm

6 mm

Full bridge

4.3 mm

33 Vac

Aluminum

1000 Ω

95 °C

-75 °C

33 Vrms

SGT-3G/350-FB43344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10.5 mm

9.3 mm

Solder Pads

Full Bridge

2.5 mm

3 mm

Full bridge

2.9 mm

13 Vac

Aluminum

350 Ω

95 °C

-75 °C

13 Vrms

SGT-3G/350-FB41328,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10.5 mm

9.3 mm

Solder Pads

Full Bridge

2.5 mm

3 mm

Full bridge

2.9 mm

9 Vac

Steel

350 Ω

95 °C

-75 °C

9 Vrms

SGT-3G/350-FB13355,780 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10.5 mm

9.3 mm

Wire Leads

Full Bridge

2.5 mm

3 mm

Full bridge

2.9 mm

13 Vac

Aluminum

350 Ω

95 °C

-75 °C

13 Vrms

SGT-2/1000-FB41344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

8 mm

6.5 mm

Solder Pads

Full bridge for bending or axial strain, single surface gaging

1.8 mm

3 mm

Full bridge

2.4 mm

12 Vac

Steel

1000 Ω

95 °C

-75 °C

12 Vrms

SGT-2/1000-FB43344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

8 mm

6.5 mm

Solder Pads

Full bridge for bending or axial strain, single surface gaging

1.8 mm

3 mm

Full bridge

2.4 mm

16 Vac

Aluminum

1000 Ω

95 °C

-75 °C

16 Vrms

SGT-2/1000-FB13375,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

8 mm

6.5 mm

Wire Leads

Full bridge for bending or axial strain, single surface gaging

1.8 mm

3 mm

Full bridge

2.4 mm

16 Vac

Aluminum

1000 Ω

95 °C

-75 °C

16 Vrms

SGT-2/1000-FB11375,780 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

8 mm

6.5 mm

Wire Leads

Full bridge for bending or axial strain, single surface gaging

1.8 mm

3 mm

Full bridge

2.4 mm

12 Vac

Steel

1000 Ω

95 °C

-75 °C

12 Vrms

SGT-2/350-FB43344,210 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 mm

9 mm

Solder Pads

Full bridge for bending or axial strain

1.8 mm

3 mm

Full bridge

2 mm

9 Vac

Aluminum

350 Ω

95 °C

-75 °C

9 Vrms

SGT-2/350-FB41346,110 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 mm

9 mm

Solder Pads

Full bridge for bending or axial strain

1.8 mm

3 mm

Full bridge

2 mm

6.5 Vac

Steel

350 Ω

95 °C

-75 °C

6.5 Vrms

SGT-2/350-FB13375,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 mm

9 mm

Wire Leads

Full bridge for bending or axial strain

1.8 mm

3 mm

Full bridge

2 mm

9 Vac

Aluminum

350 Ω

95 °C

-75 °C

9 Vrms

SGT-2/350-FB11409,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10 mm

9 mm

Wire Leads

Full bridge for bending or axial strain

1.8 mm

3 mm

Full bridge

2 mm

6.5 Vac

Steel

350 Ω

95 °C

-75 °C

6.5 Vrms

SGT-3G/350-FB11381,530 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

10.5 mm

9.3 mm

Wire Leads

Full Bridge

2.5 mm

3 mm

Full bridge

2.9 mm

9 Vac

Steel

350 Ω

95 °C

-75 °C

9 Vrms
