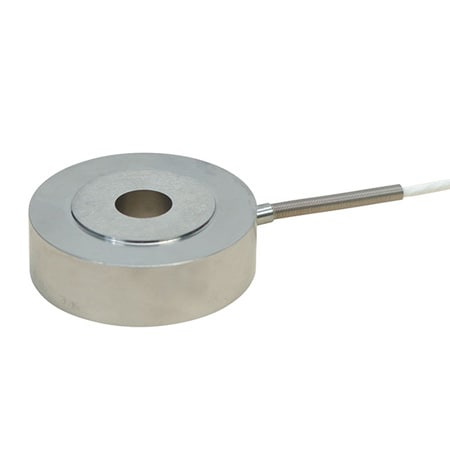

LC8100 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 54개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	5-Point Calibration	Accuracy	Cable Length	Calibration Option	Electrical Connection	Electrical Output	Force Type	Full Scale Deflection	Height	Hysteresis	Input Resistance	Linearity	Load Cell Capacity	Load Cell Type	Materials	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Output Resistance	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Through Hole Dimension	Wiring/Connector Table	Zero/Balance Error
LC8125-375-500가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.375 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-375-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.375 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-375-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	100 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.375 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-312-2501,580,470 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.312 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-312-5001,630,650 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.312 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-312-1001,580,470 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	100 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.312 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-250-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.25 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-250-500가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.25 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-250-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	100 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.25 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-200-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.2 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-188-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.188 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-200-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.2 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-188-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.188 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-125-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.125 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-125-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	100 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.125 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-125-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.125 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-100-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	500 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.1 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-100-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	250 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.1 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8100-250-200가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	200 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.25 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LC8125-100-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	± 1 %	5 ft	5 POINT NIST	Cable	2 mV/V	Compression	0.003 in	0.28 in	± 1.0%	360 Ω min	± 1.0%	100 lbF	Through Hole	17-4 PH Stainless Steel	121 °C	-54 °C	1.25 in	350 ± 5 Ω	300% FS	71 °C	16 °C	± 1.0%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% rdg/°C	± 0.009% FSO/°C	0.1 in	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Accuracy

Cable Length

Calibration Option

Electrical Connection

Electrical Output

Force Type

Full Scale Deflection

Height

Hysteresis

Input Resistance

Linearity

Load Cell Capacity

Load Cell Type

Materials

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Output Resistance

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Through Hole Dimension

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LC8125-375-500가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.375 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-375-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.375 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-375-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

100 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.375 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-312-2501,580,470 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.312 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-312-5001,630,650 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.312 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-312-1001,580,470 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

100 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.312 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-250-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.25 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-250-500가격 문의22 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.25 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-250-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

100 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.25 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-200-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.2 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-188-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.188 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-200-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.2 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-188-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.188 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-125-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.125 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-125-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

100 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.125 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-125-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.125 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-100-500가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

500 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.1 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-100-250가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

250 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.1 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8100-250-200가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

200 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.25 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LC8125-100-100가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

± 1 %

5 ft

5 POINT NIST

Cable

2 mV/V

Compression

0.003 in

0.28 in

± 1.0%

360 Ω min

± 1.0%

100 lbF

Through Hole

17-4 PH Stainless Steel

121 °C

-54 °C

1.25 in

350 ± 5 Ω

300% FS

71 °C

16 °C

± 1.0%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% rdg/°C

± 0.009% FSO/°C

0.1 in

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%
