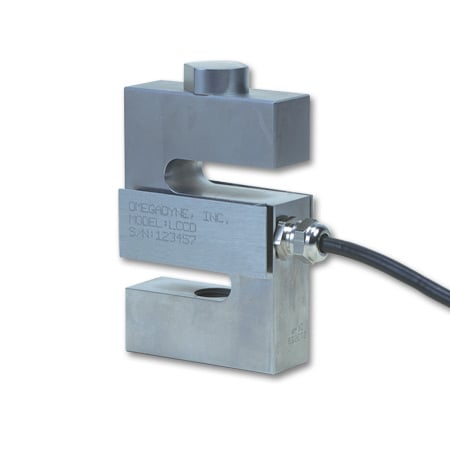

LCMCD | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Bridge Resistance	Cable Length	Calibration Option	Creep in 20 min	Electrical Connection	Electrical Output	Enclosure Ratings	End Rod	Force Type	Full Scale Deflection	Height	Hysteresis	Interchangeability	Length	Linearity	Load Button	Load Cell Capacity	Load Cell Type	Materials	Operating Temperature, Max	Operating Temperature, Min	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Weight	Width	Wire Gauge	Wiring/Connector Table	Zero/Balance Error	수량 / 장바구니
LCMCD-2K1,622,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	350 Ω	20 ft	5 POINT NIST	± 0.03%	Cable	3 mV/V	IP67	MREC-M20	Compression, Tension	0.01 in	108 mm	0.0005	0.0025	76 mm	0.0003	MLBC-M20	2000 kgf	S-beam	17-4 PH Stainless Steel	66 °C	-18 °C	300% FS	66 °C	-18 °C	0.0001	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0015% rdg/°C	0.0027% FS/°C	0.18 kg	34 mm	22 AWG	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	0.01
LCMCD-501,428,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	350 Ω	20 ft	5 POINT NIST	± 0.03%	Cable	3 mV/V	IP67	MREC-M20	Compression, Tension	0.008 in	64 mm	0.0005	0.0025	51 mm	0.0003	MLBC-M8	50 kgf	S-beam	17-4 PH Stainless Steel	66 °C	-18 °C	300% FS	66 °C	-18 °C	0.0001	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0015% rdg/°C	0.0027% FS/°C	1 kg	20 mm	22 AWG	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	0.01

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Bridge Resistance

Cable Length

Calibration Option

Creep in 20 min

Electrical Connection

Electrical Output

Enclosure Ratings

End Rod

Force Type

Full Scale Deflection

Height

Hysteresis

Interchangeability

Length

Linearity

Load Button

Load Cell Capacity

Load Cell Type

Materials

Operating Temperature, Max

Operating Temperature, Min

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Weight

Width

Wire Gauge

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCMCD-2K1,622,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

350 Ω

20 ft

5 POINT NIST

± 0.03%

Cable

3 mV/V

IP67

MREC-M20

Compression, Tension

0.01 in

108 mm

0.0005

0.0025

76 mm

0.0003

MLBC-M20

2000 kgf

S-beam

17-4 PH Stainless Steel

66 °C

-18 °C

300% FS

66 °C

-18 °C

0.0001

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0015% rdg/°C

0.0027% FS/°C

0.18 kg

34 mm

22 AWG

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

0.01

LCMCD-501,428,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

350 Ω

20 ft

5 POINT NIST

± 0.03%

Cable

3 mV/V

IP67

MREC-M20

Compression, Tension

0.008 in

64 mm

0.0005

0.0025

51 mm

0.0003

MLBC-M8

50 kgf

S-beam

17-4 PH Stainless Steel

66 °C

-18 °C

300% FS

66 °C

-18 °C

0.0001

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0015% rdg/°C

0.0027% FS/°C

1 kg

20 mm

22 AWG

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

0.01
