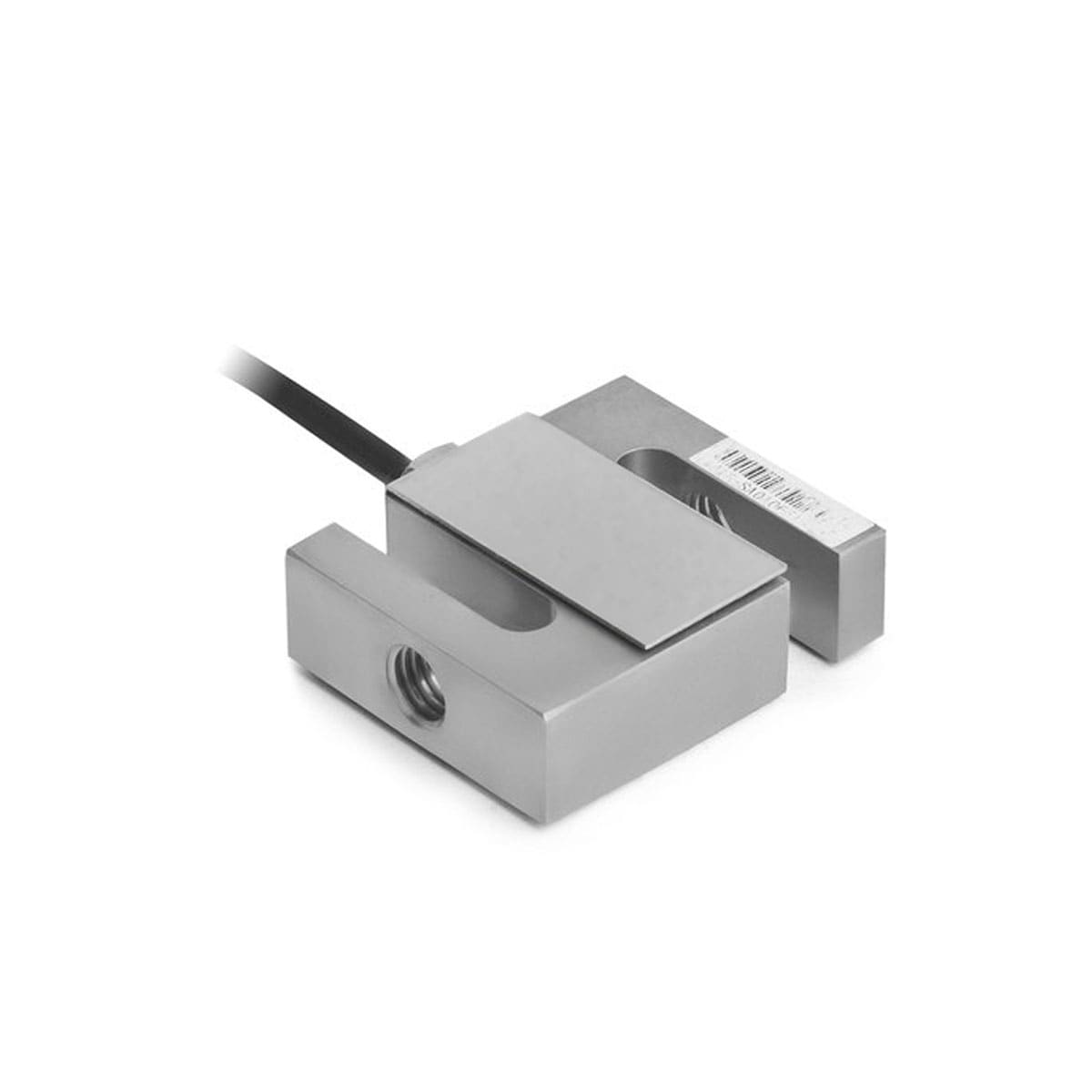

LC103B | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 42개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	5-Point Calibration	Accuracy	Approvals	Cable Length	Calibration Option	Dead load	Electrical Connection	Electrical Output	Enclosure Ratings	Force Type	Full Scale Deflection	Height	Hysteresis	Input Resistance	Insulation Resistance	Length	Linearity	Load Cell Capacity	Load Cell Type	Materials	Number of Load Cell Intervals (nLC)	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Overload, Max	Process Temperature, Max	Process Temperature, Min	Ratio of Minimum LC Verification Interval (Y = Emax/vmin)	Repeatability	Safe Overload	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Voltage	Width	Wiring/Connector Table	Zero/Balance Error
LCM113B-2.5K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	99.06 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	76.2 mm	± 0.035%	2500 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	27.68 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-500가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	500 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	21.33 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-10K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	177.8 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	112.77 mm	± 0.035%	10000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	46.22 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-250가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	250 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	21.33 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-100가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	100 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	14.98 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM103B-500567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	500 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	18.03 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-10K1,876,350 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	177.8 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	112.77 mm	± 0.035%	10000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	42.92 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-250567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	250 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	18.03 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-100567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	74.67 mm	± 0.035%	100 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	15.74 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM113B-5K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	99.06 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	74.67 mm	± 0.035%	5000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	34.03 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-25가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	-	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	2 mV/V	IP67	Compression, Tension	0.0317 in	50.8 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	76.2 mm	± 0.035%	25 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	15.74 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-50가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	50 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	14.98 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM113B-1K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	1000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	27.68 mm	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LCM103B-5K818,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	99.06 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	74.67 mm	± 0.035%	5000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	30.73 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-2K785,480 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	99.06 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	76.2 mm	± 0.035%	2000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	24.38 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-50567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	50 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	14.98 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-25567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	-	20 ft	2 POINT NIST	0% FS	Cable	2 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	25 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	14.98 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LCM103B-1K632,770 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	20 ft	2 POINT NIST	0% FS	Cable	3 mV/V	IP67	Compression, Tension	0.0317 in	60.96 mm	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	50.8 mm	± 0.035%	1000 kgf	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	24.38 mm	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 1%
LC113B-250가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	2.4 in	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	2 in	± 0.035%	250 lbF	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	0.6 in	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%
LC113B-500가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 100%	Class C3	OIML R60	0 ft	2 POINT NIST	0% FS	MIL-26482-I 10-6P	3 mV/V	IP67	Compression, Tension	0.0317 in	2.4 in	± 0.035%	430 ± 50 Ω	≥ 5000 MΩ	2 in	± 0.035%	500 lbF	S-beam	Stainless Steel	3000	65 °C	-35 °C	351 ± 2 Ω	300% FS	40 °C	-10 °C	10000	± 0.035%	150% FS	70 °C	-40 °C	5 to 12 Vdc, 18 Vdc max	5 to 12 Vdc	0.8 in	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 1%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Accuracy

Approvals

Cable Length

Calibration Option

Dead load

Electrical Connection

Electrical Output

Enclosure Ratings

Force Type

Full Scale Deflection

Height

Hysteresis

Input Resistance

Insulation Resistance

Length

Linearity

Load Cell Capacity

Load Cell Type

Materials

Number of Load Cell Intervals (nLC)

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Overload, Max

Process Temperature, Max

Process Temperature, Min

Ratio of Minimum LC Verification Interval (Y = Emax/vmin)

Repeatability

Safe Overload

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Voltage

Width

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCM113B-2.5K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

99.06 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

76.2 mm

± 0.035%

2500 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

27.68 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-500가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

500 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

21.33 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-10K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

177.8 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

112.77 mm

± 0.035%

10000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

46.22 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-250가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

250 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

21.33 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-100가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

100 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

14.98 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM103B-500567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

500 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

18.03 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-10K1,876,350 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

177.8 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

112.77 mm

± 0.035%

10000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

42.92 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-250567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

250 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

18.03 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-100567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

74.67 mm

± 0.035%

100 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

15.74 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM113B-5K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

99.06 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

74.67 mm

± 0.035%

5000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

34.03 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-25가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

2 mV/V

IP67

Compression, Tension

0.0317 in

50.8 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

76.2 mm

± 0.035%

25 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

15.74 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-50가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

50 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

14.98 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM113B-1K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

1000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

27.68 mm

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LCM103B-5K818,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

99.06 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

74.67 mm

± 0.035%

5000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

30.73 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-2K785,480 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

99.06 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

76.2 mm

± 0.035%

2000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

24.38 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-50567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

50 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

14.98 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-25567,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

20 ft

2 POINT NIST

0% FS

Cable

2 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

25 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

14.98 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LCM103B-1K632,770 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

20 ft

2 POINT NIST

0% FS

Cable

3 mV/V

IP67

Compression, Tension

0.0317 in

60.96 mm

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

50.8 mm

± 0.035%

1000 kgf

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

24.38 mm

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 1%

LC113B-250가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

2.4 in

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

2 in

± 0.035%

250 lbF

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

0.6 in

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%

LC113B-500가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 100%

Class C3

OIML R60

0 ft

2 POINT NIST

0% FS

MIL-26482-I 10-6P

3 mV/V

IP67

Compression, Tension

0.0317 in

2.4 in

± 0.035%

430 ± 50 Ω

≥ 5000 MΩ

2 in

± 0.035%

500 lbF

S-beam

Stainless Steel

3000

65 °C

-35 °C

351 ± 2 Ω

300% FS

40 °C

-10 °C

10000

± 0.035%

150% FS

70 °C

-40 °C

5 to 12 Vdc, 18 Vdc max

5 to 12 Vdc

0.8 in

Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected

± 1%
