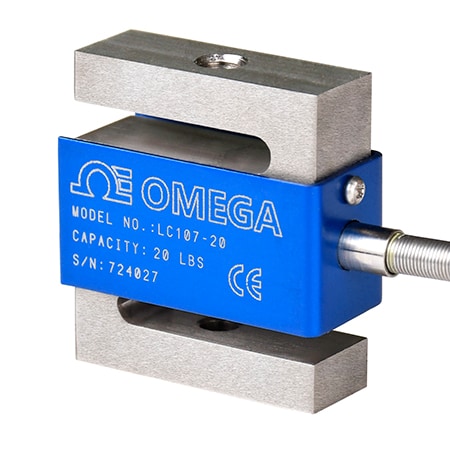

LC107 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 5개의 상품

제품 번호 / 가격	Brand	5-Point Calibration	Cable Length	Calibration Option	Electrical Connection	Electrical Output	Enclosure Ratings	Force Type	Height	Hysteresis	Length	Linearity	Load Cell Capacity	Load Cell Type	Materials	Operating Temperature, Max	Operating Temperature, Min	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Width	Zero/Balance Error
LC107-201,235,450 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	5 ft	5 POINT NIST	Cable	2 mV/V	IP40	Compression, Tension	1.25 in	± 0.1%	1.1 in	± 0.1%	20 lbF	S-beam	Stainless Steel, Aluminum	93 °C	-40 °C	300% FS	71 °C	15 °C	± 0.05%	150% FS	5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum	5 Vdc	± 0.009% FSO/°C	± 0.009% FSO/°C	0.5 in	± 1%
LC107-151,228,650 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	5 ft	5 POINT NIST	Cable	2 mV/V	IP40	Compression, Tension	1.25 in	± 0.1%	1.1 in	± 0.1%	15 lbF	S-beam	Stainless Steel, Aluminum	93 °C	-40 °C	300% FS	71 °C	15 °C	± 0.05%	150% FS	5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum	5 Vdc	± 0.009% FSO/°C	± 0.009% FSO/°C	0.5 in	± 1%
LC107-51,347,760 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	5 ft	5 POINT NIST	Cable	2 mV/V	IP40	Compression, Tension	0.75 in	± 0.1%	0.27 in	± 0.1%	5 lbF	S-beam	Stainless Steel, Aluminum	93 °C	-40 °C	300% FS	71 °C	15 °C	± 0.05%	150% FS	5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum	5 Vdc	± 0.009% FSO/°C	± 0.009% FSO/°C	0.67 in	± 1%
LC107-21,304,140 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	5 ft	5 POINT NIST	Cable	2 mV/V	IP40	Compression, Tension	0.75 in	± 0.1%	0.27 in	± 0.1%	2 lbF	S-beam	Stainless Steel, Aluminum	93 °C	-40 °C	300% FS	71 °C	15 °C	± 0.05%	150% FS	5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum	5 Vdc	± 0.009% FSO/°C	± 0.009% FSO/°C	0.67 in	± 1%
LC107-101,169,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0%	5 ft	5 POINT NIST	Cable	2 mV/V	IP40	Compression, Tension	1.25 in	± 0.1%	1.1 in	± 0.1%	10 lbF	S-beam	Stainless Steel, Aluminum	93 °C	-40 °C	300% FS	71 °C	15 °C	± 0.05%	150% FS	5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum	5 Vdc	± 0.009% FSO/°C	± 0.009% FSO/°C	0.5 in	± 1%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Cable Length

Calibration Option

Electrical Connection

Electrical Output

Enclosure Ratings

Force Type

Height

Hysteresis

Length

Linearity

Load Cell Capacity

Load Cell Type

Materials

Operating Temperature, Max

Operating Temperature, Min

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Width

Zero/Balance Error

수량 / 장바구니

LC107-201,235,450 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

5 ft

5 POINT NIST

Cable

2 mV/V

IP40

Compression, Tension

1.25 in

± 0.1%

1.1 in

± 0.1%

20 lbF

S-beam

Stainless Steel, Aluminum

93 °C

-40 °C

300% FS

71 °C

15 °C

± 0.05%

150% FS

5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum

5 Vdc

± 0.009% FSO/°C

0.5 in

± 1%

LC107-151,228,650 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

5 ft

5 POINT NIST

Cable

2 mV/V

IP40

Compression, Tension

1.25 in

± 0.1%

1.1 in

± 0.1%

15 lbF

S-beam

Stainless Steel, Aluminum

93 °C

-40 °C

300% FS

71 °C

15 °C

± 0.05%

150% FS

5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum

5 Vdc

± 0.009% FSO/°C

0.5 in

± 1%

LC107-51,347,760 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

5 ft

5 POINT NIST

Cable

2 mV/V

IP40

Compression, Tension

0.75 in

± 0.1%

0.27 in

± 0.1%

5 lbF

S-beam

Stainless Steel, Aluminum

93 °C

-40 °C

300% FS

71 °C

15 °C

± 0.05%

150% FS

5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum

5 Vdc

± 0.009% FSO/°C

0.67 in

± 1%

LC107-21,304,140 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

5 ft

5 POINT NIST

Cable

2 mV/V

IP40

Compression, Tension

0.75 in

± 0.1%

0.27 in

± 0.1%

2 lbF

S-beam

Stainless Steel, Aluminum

93 °C

-40 °C

300% FS

71 °C

15 °C

± 0.05%

150% FS

5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum

5 Vdc

± 0.009% FSO/°C

0.67 in

± 1%

LC107-101,169,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0%

5 ft

5 POINT NIST

Cable

2 mV/V

IP40

Compression, Tension

1.25 in

± 0.1%

1.1 in

± 0.1%

10 lbF

S-beam

Stainless Steel, Aluminum

93 °C

-40 °C

300% FS

71 °C

15 °C

± 0.05%

150% FS

5 Vdc Nominal, 15 Vdc Maximum to 5 Vdc Nominal, 12 Vdc Maximum

5 Vdc

± 0.009% FSO/°C

0.5 in

± 1%
