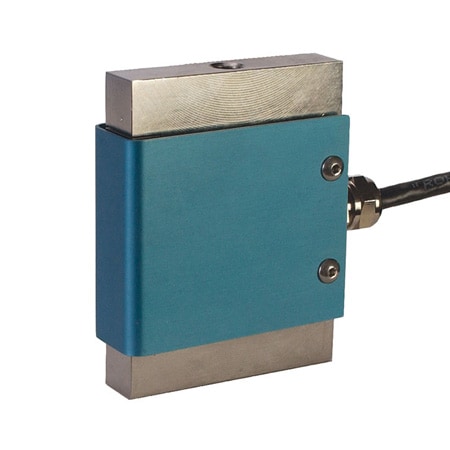

중부하용, 500% 과부하 보호 S-빔 로드셀
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | 5-Point Calibration | Bridge Resistance | Cable Length | Calibration Option | Creep in 20 min | Electrical Connection | Electrical Output | Enclosure Ratings | End Rod | Force Type | Height | Hysteresis | Interchangeability | Length | Linearity | Load Button | Load Cell Capacity | Load Cell Type | Materials | Operating Temperature, Max | Operating Temperature, Min | Overload, Max | Process Temperature, Max | Process Temperature, Min | Repeatability | Safe Overload | Supply Power Note | Supply Voltage | Thermal Span Effect | Thermal Zero Effect | Through Hole Thread | Weight | Width | Wire Gauge | Wiring/Connector Table | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCCE-7502,011,320 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-012M | Compression, Tension | 3 in | ± 0.05% | 0.0025 | 1.9 in | ± 0.03% | LBC-012 | 750 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/2"-20 UNF | 0.9 lb | 0.95 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-5002,095,070 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-012M | Compression, Tension | 3 in | ± 0.05% | 0.0025 | 1.9 in | ± 0.03% | LBC-012 | 500 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/2"-20 UNF | 0.8 lb | 0.95 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-2502,000,250 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-038M | Compression, Tension | 3 in | ± 0.05% | 0.0025 | 1.9 in | ± 0.03% | LBC-038 | 250 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 3/8"-24 UNF | 0.6 lb | 0.7 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-1501,523,220 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-014M | Compression, Tension | 2.5 in | ± 0.05% | 0.0025 | 1.9 in | 0.0003 | LBC-014 | 150 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/4"-28 UNF | 0.4 lb | 0.65 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-2001,523,220 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-014M | Compression, Tension | 2.5 in | ± 0.05% | 0.0025 | 1.9 in | ± 0.03% | LBC-014 | 200 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/4"-28 UNF | 0.4 lb | 0.65 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-1001,672,590 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-014M | Compression, Tension | 2.5 in | ± 0.05% | 0.0025 | 1.9 in | 0.0003 | LBC-014 | 100 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/4"-28 UNF | 0.4 lb | 0.65 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-501,531,620 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-014M | Compression, Tension | 2.5 in | ± 0.05% | 0.0025 | 1.9 in | ± 0.03% | LBC-014 | 50 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/4"-28 UNF | 0.4 lb | 0.65 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LCCE-251,523,220 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in tension) | 350 Ω | 20 ft | 5 POINT NIST | ± 0.03% | Cable | 3 mV/V | IP67 | REC-014M | Compression, Tension | 2.5 in | ± 0.05% | 0.0025 | 1.9 in | ± 0.03% | LBC-014 | 25 lbF | S-beam | 17-4 PH Stainless Steel, Aluminum | 65 °C | -18 °C | 500% FS | 65 °C | -18 °C | ± 0.01% | 500% FS | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0014% rdg/°C | ± 0.0027% FS/°C | 1/4"-28 UNF | 0.4 lb | 0.65 in | 24 AWG | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
