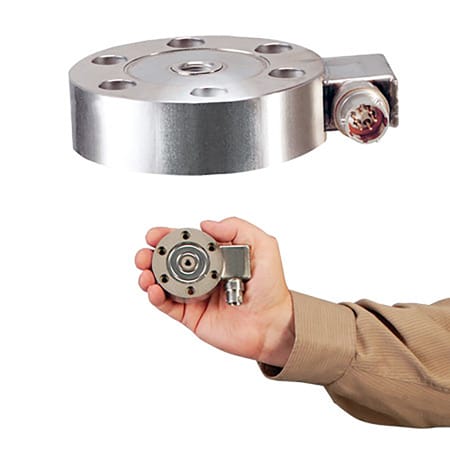

초저형 프로파일, 인장 및 압축 로드셀
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 23개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Additional Features 1 | Approvals | Calibration Option | Electrical Connection | Electrical Output | Electrical Output Note | Force Type | Height | Hysteresis | Input Resistance | Interchangeability | Linearity | Load Cell Capacity | Load Cell Type | Materials | Mating Connector | Non-Linearity | Operating Temperature, Max | Operating Temperature, Min | Outer Diameter | Output Resistance | Overload, Max | Process Temperature, Max | Process Temperature, Min | Repeatability | Safe Overload | Supply Voltage | Thermal Span Effect | Thermal Zero Effect | Through Hole Thread | Trim Pot Access | Wiring/Connector Table | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCHD-7.5K2,828,950 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1.8 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 7500 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-300K가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 4.25 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 300000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 14 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 3 1/2"-8 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-200K가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 3 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 200000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 11 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 2 1/2"-12 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-100K9,845,020 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 2.5 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 100000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 9 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 2"-12 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-150K가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 3 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 150000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 11 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 2 1/2"-12 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-75K8,685,770 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 2.5 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 75000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 9 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 2"-12 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-50K3,353,950 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1.8 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 50000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-30K3,543,300 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1.8 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 30000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-5002,489,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 500 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 3/8"-24 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-2502,489,050 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 250 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 3/8"-24 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-15K3,256,590 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1.8 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 15000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-1002,535,930 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | 0.001 | 100 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 3/8"-24 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-10K2,940,100 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-5015 14-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1.8 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 10000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-5015 14-6S | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-5K2,535,930 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 5000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1/2"-20 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-502,475,340 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 50 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 3/8"-24 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-4K2,568,940 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 4000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1/2"-20 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-2K2,356,040 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 2000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1/2"-20 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-3K2,489,050 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 3000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1/2"-20 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-252,400,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 2 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 0.8 in | ± 0.10% | 350 ± 10 Ω | 0.0025 | ± 0.20% | 25 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 2.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.1% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1/4"-28 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable | |
LCHD-1K2,489,050 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | Compression, Tension | 1 in | ± 0.08% | 350 ± 10 Ω | 0.0025 | ± 0.10% | 1000 lbF | Pancake | 17-4 PH Stainless Steel | MIL-26482-I 10-6S | 0.001 | 75 °C | -40 °C | 3 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.03% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 3/8"-24 UNF | None | Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output | 4 mA +10%, -2% adjustable |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
