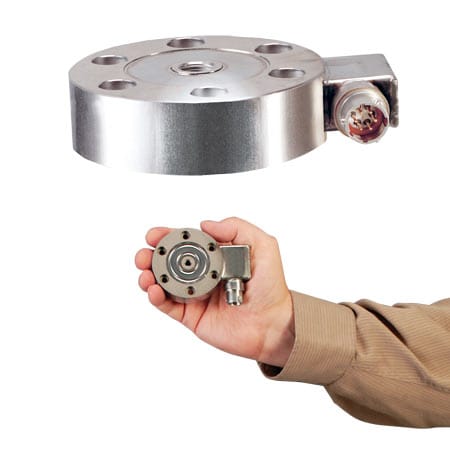

LCMHD | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 15개의 상품

제품 번호 / 가격	Brand	5-Point Calibration	Calibration Option	Electrical Connection	Electrical Output	Force Type	Full Scale Deflection	Height	Hysteresis	Input Resistance	Interchangeability	Linearity	Load Cell Capacity	Load Cell Type	Materials	Mating Connector	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Output Resistance	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Wiring/Connector Table	Zero/Balance Error
LCMHD-7.5K3,034,100 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-5015 14-6P	3 mV/V	Compression, Tension	0.003 in	46 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	7500 kgf	Pancake	17-4 PH Stainless Steel	MIL-5015 14-6S	121 °C	-54 °C	140 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-2.5K2,486,310 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-5015 14-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	2500 kgf	Pancake	17-4 PH Stainless Steel	MIL-5015 14-6S	121 °C	-54 °C	89 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-1.5K2,486,310 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	1500 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	89 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-5002,383,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	500 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	76 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-2.52,734,690 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	2 mV/V	Compression, Tension	0.003 in	20 mm	± 0.10%	350 ± 10 Ω	0.0025	± 0.20%	2.5 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	64 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.1%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-2502,754,350 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	250 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	76 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-10K4,025,270 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-5015 14-6P	3 mV/V	Compression, Tension	0.003 in	46 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	10000 kgf	Pancake	17-4 PH Stainless Steel	MIL-5015 14-6S	121 °C	-54 °C	152 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-1002,436,570 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	100 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	76 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-5K3,333,540 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-5015 14-6P	3 mV/V	Compression, Tension	0.003 in	46 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	5000 kgf	Pancake	17-4 PH Stainless Steel	MIL-5015 14-6S	121 °C	-54 °C	140 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-2K2,565,020 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	2000 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	89 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-502,486,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	50 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	76 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-252,518,050 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	25 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	76 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-1K2,504,190 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	3 mV/V	Compression, Tension	0.003 in	25 mm	± 0.08%	350 ± 10 Ω	0.0025	± 0.10%	1000 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	89 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.03%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-102,734,690 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	2 mV/V	Compression, Tension	0.003 in	20 mm	± 0.10%	350 ± 10 Ω	0.0025	± 0.20%	10 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	64 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.1%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%
LCMHD-52,486,310 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	5 POINT NIST	MIL-26482-I 10-6P	2 mV/V	Compression, Tension	0.003 in	20 mm	± 0.10%	350 ± 10 Ω	0.0025	± 0.20%	5 kgf	Pancake	17-4 PH Stainless Steel	MIL-26482-I 10-6S	121 °C	-54 °C	64 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.1%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.0036% FSO/°C	0.0036% FSO/°C	Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output	± 1%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Calibration Option

Electrical Connection

Electrical Output

Force Type

Full Scale Deflection

Height

Hysteresis

Input Resistance

Interchangeability

Linearity

Load Cell Capacity

Load Cell Type

Materials

Mating Connector

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Output Resistance

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCMHD-7.5K3,034,100 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-5015 14-6P

3 mV/V

Compression, Tension

0.003 in

46 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

7500 kgf

Pancake

17-4 PH Stainless Steel

MIL-5015 14-6S

121 °C

-54 °C

140 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-2.5K2,486,310 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-5015 14-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

2500 kgf

Pancake

17-4 PH Stainless Steel

MIL-5015 14-6S

121 °C

-54 °C

89 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-1.5K2,486,310 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

1500 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

89 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-5002,383,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

500 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

76 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-2.52,734,690 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

2 mV/V

Compression, Tension

0.003 in

20 mm

± 0.10%

350 ± 10 Ω

0.0025

± 0.20%

2.5 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

64 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.1%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-2502,754,350 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

250 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

76 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-10K4,025,270 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-5015 14-6P

3 mV/V

Compression, Tension

0.003 in

46 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

10000 kgf

Pancake

17-4 PH Stainless Steel

MIL-5015 14-6S

121 °C

-54 °C

152 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-1002,436,570 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

100 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

76 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-5K3,333,540 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-5015 14-6P

3 mV/V

Compression, Tension

0.003 in

46 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

5000 kgf

Pancake

17-4 PH Stainless Steel

MIL-5015 14-6S

121 °C

-54 °C

140 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-2K2,565,020 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

2000 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

89 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-502,486,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

50 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

76 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-252,518,050 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

25 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

76 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-1K2,504,190 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

3 mV/V

Compression, Tension

0.003 in

25 mm

± 0.08%

350 ± 10 Ω

0.0025

± 0.10%

1000 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

89 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.03%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-102,734,690 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

2 mV/V

Compression, Tension

0.003 in

20 mm

± 0.10%

350 ± 10 Ω

0.0025

± 0.20%

10 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

64 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.1%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%

LCMHD-52,486,310 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

5 POINT NIST

MIL-26482-I 10-6P

2 mV/V

Compression, Tension

0.003 in

20 mm

± 0.10%

350 ± 10 Ω

0.0025

± 0.20%

5 kgf

Pancake

17-4 PH Stainless Steel

MIL-26482-I 10-6S

121 °C

-54 °C

64 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.1%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.0036% FSO/°C

Pin AB: (+) Excitation; Pin CD: (-) Excitation; Pin E: (-) Output; Pin F: (+) Output

± 1%
