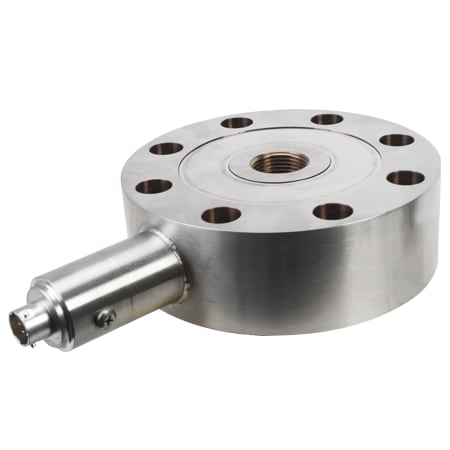

본질적으로 안전한 초저형 로드셀
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 23개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Additional Features 1 | Approvals | Cable Length | Calibration Option | Electrical Connection | Electrical Output | Electrical Output Note | End Rod | Force Type | Height | Hysteresis | Input Resistance | Interchangeability | Linearity | Load Button | Load Cell Capacity | Load Cell Type | Materials | Non-Linearity | Operating Temperature, Max | Operating Temperature, Min | Outer Diameter | Output Resistance | Overload, Max | Process Temperature, Max | Process Temperature, Min | Repeatability | Safe Overload | Supply Voltage | Thermal Span Effect | Thermal Zero Effect | Through Hole Thread | Trim Pot Access | Wiring/Connector Table | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCHD-7.5K0C2ISNP가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 7500 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-50K1BC2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | - | 5 POINT NIST | MIL-26482-I 10-6P | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | None | - | 4 mA +10%, -2% adjustable | |
LCHD-10K1BC2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | - | 5 POINT NIST | MIL-26482-I 10-6P | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 10000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | - | 4 mA +10%, -2% adjustable | |
LCHD-50K0C2ISNP가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | None | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-15KGWBC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | 10 ft | 5 POINT NIST | Submersible Cable | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 15000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | O-ring sealed screws on side cover | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-10K5C2ISNP가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | - | 5 POINT NIST | M12 4 pin Female | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 10000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case | 4 mA +10%, -2% adjustable | |
LCHD-10K0C2ISNP가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | No Potentiometers | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 10000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | None | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-7.5K5C2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | M12 4 pin Female | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 7500 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | O-ring sealed screws on side cover | Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case | 4 mA +10%, -2% adjustable | |
LCHD-7.5K0C2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 7500 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | O-ring sealed screws on side cover | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-50K1BC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | MIL-26482-I 10-6P | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | - | 4 mA +10%, -2% adjustable | |
LCHD-50K5BC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | M12 4 pin Female | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case | 4 mA +10%, -2% adjustable | |
LCHD-50K0BC2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | 15 ft | 5 POINT NIST | Cable | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-200K5C2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | M12 4 pin Female | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | - | Compression, Tension | 3 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | - | 200000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 11 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 2 1/2"-12 UNS | O-ring sealed screws on side cover | Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case | 4 mA +10%, -2% adjustable | |
LCHD-10K5BC2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | M12 4 pin Female | 4-12-20 mA | FM Intrinsically Safe 4-12-20 mA Output [cali brated (-)full scale to (+)full scale] Bidirectional | REC-100M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-100 | 10000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 5.5 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1"-14 UNS | O-ring sealed screws on side cover | Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case | 4 mA +10%, -2% adjustable | |
LCHD-50K5C2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | M12 4 pin Female | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | Pin 1: (+) Input; Pin 2: (-) Input; Pin 4: Case | 4 mA +10%, -2% adjustable | |
LCHD-50K0C2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-50K1C2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | MIL-26482-I 10-6P | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | - | 4 mA +10%, -2% adjustable | |
LCHD-30K0C2IS가격 문의21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 30000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-20K0C2IS가격 문의64 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | 15 ft | 5 POINT NIST | Cable | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 20000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | Red: (+) Input; Black: (-) Input; Green: Case | 4 mA +10%, -2% adjustable | |
LCHD-20K1C2IS가격 문의34 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Potentiometers Standard | FM | - | 5 POINT NIST | MIL-26482-I 10-6P | 4 to 20 mA | FM Intrinsically Safe 4 to 20 mA Output (calibrated 0 to full scale in tension) | REC-112M | Compression, Tension | 1.8 in | 0.10% | 350 ± 10 Ω | 0.0025 | 0.001 | LBC-112 | 20000 lbF | Pancake | 17-4 PH Stainless Steel | 0.001 | 75 °C | -40 °C | 6 in | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | 0.05% | 150% FS | 10 to 28 Vdc | ± 0.009% rdg/°C | ± 0.009% FSO/°C | 1 1/2"-12 UNF | O-ring sealed screws on side cover | - | 4 mA +10%, -2% adjustable |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
