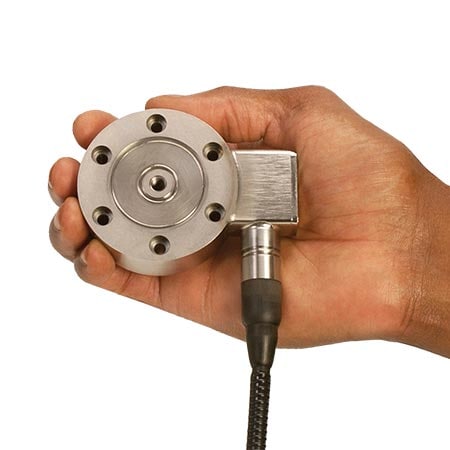

완전 잠수형, 방수, 저프로파일 로드셀
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 17개의 상품
| 제품 번호 / 가격 | Brand | 5-Point Calibration | Bridge Resistance | Cable Length | Calibration Option | Electrical Connection | Electrical Output | Enclosure Ratings | End Rod | Force Type | Full Scale Deflection | Height | Hysteresis | Interchangeability | Linearity | Load Button | Load Cell Capacity | Load Cell Type | Materials | Operating Temperature, Max | Operating Temperature, Min | Outer Diameter | Overload, Max | Process Temperature, Max | Process Temperature, Min | Repeatability | Safe Overload | Submersible Depth | Supply Power Note | Supply Voltage | Thermal Span Effect | Thermal Zero Effect | Through Hole Thread | Wiring/Connector Table | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LSHD-7.5K가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-100M | Compression, Tension | 0.003 in | 1.8 in | ± 0.08% | 0.01 | ± 0.1% | LBC-100 | 7500 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 5.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1"-14 UNS | - | ± 1% | |
LSHD-50K3,828,120 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-112M | Compression, Tension | 0.003 in | 1.8 in | ± 0.08% | 0.01 | ± 0.1% | LBC-112 | 50000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 6 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 20 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1 1/2"-12 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-2502,703,660 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-038M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-38 | 250 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 3/8"-24 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-20K3,821,100 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-112M | Compression, Tension | 0.003 in | 1.8 in | ± 0.08% | 0.01 | ± 0.1% | LBC-112 | 20000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 6 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 20 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1 1/2"-12 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-15K가격 문의13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-100M | Compression, Tension | 0.003 in | 1.8 in | ± 0.08% | 0.01 | ± 0.1% | LBC-100 | 15000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 5.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1"-14 UNS | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-1002,703,660 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-038M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-38 | 100 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 3/8"-24 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-10K3,282,530 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-100M | Compression, Tension | 0.003 in | 1.8 in | ± 0.08% | 0.01 | ± 0.1% | LBC-100 | 10000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 5.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1"-14 UNS | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-5K2,723,120 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-012M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-012 | 5000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/2"-20 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-502,789,060 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-038M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-38 | 50 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 3/8"-24 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-4K2,703,660 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-012M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-012 | 4000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/2"-20 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-2K2,718,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-012M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-012 | 2000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/2"-20 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-3K2,723,120 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-012M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-012 | 3000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3.5 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/2"-20 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-252,723,120 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 2 mV/V | IP68 | REC-014M | Compression, Tension | 0.003 in | 0.8 in | ± 0.1% | 0.01 | ± 0.2% | LBC-14 | 25 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 2.5 in | 300% FS | 71 °C | 15 °C | ± 0.1% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/4"-28 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-1K2,703,660 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-038M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-38 | 1000 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 3/8"-24 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-102,703,660 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 2 mV/V | IP68 | REC-014M | Compression, Tension | 0.003 in | 0.8 in | ± 0.1% | 0.01 | ± 0.2% | LBC-14 | 10 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 2.5 in | 300% FS | 71 °C | 15 °C | ± 0.1% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/4"-28 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-52,789,060 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 2 mV/V | IP68 | REC-014M | Compression, Tension | 0.003 in | 0.8 in | ± 0.1% | 0.01 | ± 0.2% | LBC-14 | 5 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 2.5 in | 300% FS | 71 °C | 15 °C | ± 0.1% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 1/4"-28 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% | |
LSHD-5002,718,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 350 Ω | 10 ft | 5 POINT NIST | Submersible Cable | 3 mV/V | IP68 | REC-038M | Compression, Tension | 0.003 in | 1 in | ± 0.08% | 0.01 | ± 0.1% | LBC-38 | 500 lbF | Pancake | 17-4 PH Stainless Steel | 82 °C | -18 °C | 3 in | 300% FS | 71 °C | 15 °C | ± 0.03% | 150% FS | 10 ft | 10 Vdc, 15 Vdc maximum | 10 Vdc | ± 0.0036% rdg/°C | ± 0.0036% FSO/°C | 3/8"-24 UNF | Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output | ± 1% |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
