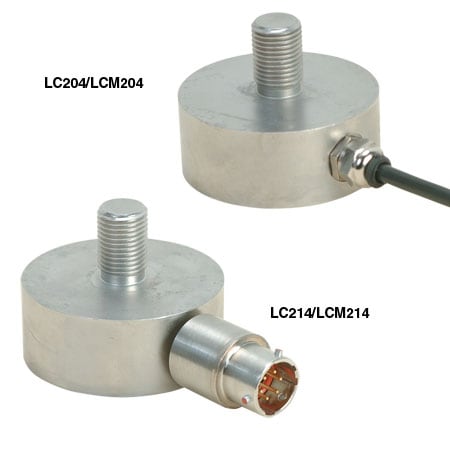

LCM204-LCM214 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	5-Point Calibration	Approvals	Cable Assembly with Twist Lock Connector	Cable Length	Calibration Option	Electrical Connection	Electrical Output	Enclosure Ratings	Force Type	Height	Hysteresis	Input Resistance	Interchangeability	Linearity	Load Cell Capacity	Load Cell Type	Materials	Mating Connector	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Output Resistance	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Wiring/Connector Table	Zero/Balance Error	수량 / 장바구니
LCM204-50KN1,735,080 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	FM	-	10 ft	5 POINT NIST	Cable	2 mV/V	IP65	Compression, Tension	39.6 mm	± 0.1%	350 Ω min	0.01	± 0.15%	50000 N	In-line	Stainless Steel	-	107 °C	-46 °C	51 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.05%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.009% FSO/°F	0.0045% FSO/°F	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input	± 2%
LCM214-2KN1,685,860 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	FM	CA-4PC24-2-015	0 ft	5 POINT NIST	N/A	2 mV/V	IP65	Compression, Tension	39.6 mm	± 0.1%	350 Ω min	0.01	± 0.15%	2000 N	In-line	Stainless Steel	MIL-26482-I 10-6S	107 °C	-46 °C	51 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.05%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	0.009% FSO/°F	0.0045% FSO/°F	Pin A: (+) Output; Pin B: (-) Output; Pin C: (-) Input; Pin D: (+) Input; Pin E: Not Connected; Pin F: Not Connected	± 2%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Approvals

Cable Assembly with Twist Lock Connector

Cable Length

Calibration Option

Electrical Connection

Electrical Output

Enclosure Ratings

Force Type

Height

Hysteresis

Input Resistance

Interchangeability

Linearity

Load Cell Capacity

Load Cell Type

Materials

Mating Connector

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Output Resistance

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCM204-50KN1,735,080 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

10 ft

5 POINT NIST

Cable

2 mV/V

IP65

Compression, Tension

39.6 mm

± 0.1%

350 Ω min

0.01

± 0.15%

50000 N

In-line

Stainless Steel

107 °C

-46 °C

51 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.05%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

0.009% FSO/°F

0.0045% FSO/°F

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input

± 2%

LCM214-2KN1,685,860 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
