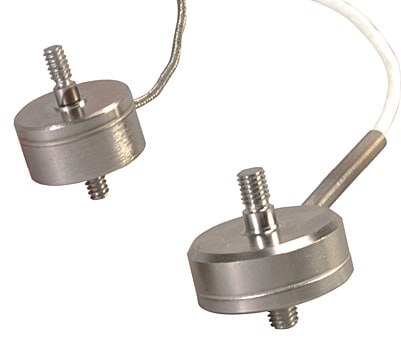

LCFL | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 13개의 상품

제품 번호 / 가격	Brand	5-Point Calibration	Accuracy	Bridge Resistance	Cable Length	Calibration Option	Electrical Connection	Electrical Output	Enclosure Ratings	Force Type	Full Scale Deflection	Height	Hysteresis	Linearity	Load Cell Capacity	Load Cell Type	Materials	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Wiring/Connector Table	Zero/Balance Error
LCMFL-500N1,987,450 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	4 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	9.9 mm	± 0.50%	± 0.50%	500 N	In-line	Stainless Steel	121 °C	-53 °C	25.4 mm	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCMFL-100N1,976,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	4 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	9.9 mm	± 0.50%	± 0.50%	100 N	In-line	Stainless Steel	121 °C	-53 °C	25.4 mm	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCMFL-200N1,987,450 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	4 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	9.9 mm	± 0.50%	± 0.50%	200 N	In-line	Stainless Steel	121 °C	-53 °C	25.4 mm	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCMFL-50N2,039,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	4 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	10.1 mm	± 0.50%	± 0.50%	50 N	In-line	Stainless Steel	121 °C	-53 °C	19.1 mm	300% FS	71 °C	16 °C	± 0.20%	150% FS	5 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCMFL-20N1,987,450 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	4 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	10.1 mm	± 0.50%	± 0.50%	20 N	In-line	Stainless Steel	121 °C	-53 °C	19.1 mm	300% FS	71 °C	16 °C	± 0.20%	150% FS	5 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-1KG2,019,850 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	1 mV/V	IP54	Compression, Tension	0.003 in	0.4 in	± 0.50%	± 0.50%	1 kgf	In-line	Stainless Steel	121 °C	-53 °C	0.75 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	5 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCMFL-10N1,976,490 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	4 ft	5 POINT NIST	Cable	1 mV/V	IP54	Compression, Tension	0.003 in	10.1 mm	± 0.50%	± 0.50%	10 N	In-line	Stainless Steel	121 °C	-53 °C	19.1 mm	300% FS	71 °C	16 °C	± 0.20%	150% FS	5 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-1002,008,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	0.39 in	± 0.50%	± 0.50%	100 lbF	In-line	Stainless Steel	121 °C	-53 °C	1 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-751,994,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	0.39 in	± 0.50%	± 0.50%	75 lbF	In-line	Stainless Steel	121 °C	-53 °C	1 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-501,994,380 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	0.39 in	± 0.50%	± 0.50%	50 lbF	In-line	Stainless Steel	121 °C	-53 °C	1 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-101,951,280 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	0.4 in	± 0.50%	± 0.50%	10 lbF	In-line	Stainless Steel	121 °C	-53 °C	0.75 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	5 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-51,994,380 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	0.4 in	± 0.50%	± 0.50%	5 lbF	In-line	Stainless Steel	121 °C	-53 °C	0.75 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	5 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%
LCFL-251,994,380 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in tension)	± 0.5 %	350 Ω	5 ft	5 POINT NIST	Cable	2 mV/V	IP54	Compression, Tension	0.003 in	0.39 in	± 0.50%	± 0.50%	25 lbF	In-line	Stainless Steel	121 °C	-53 °C	1 in	300% FS	71 °C	16 °C	± 0.20%	150% FS	10 Vdc	± 0.009% rdg/°C	0.009% FSO/°C	Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input	± 2%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Accuracy

Bridge Resistance

Cable Length

Calibration Option

Electrical Connection

Electrical Output

Enclosure Ratings

Force Type

Full Scale Deflection

Height

Hysteresis

Linearity

Load Cell Capacity

Load Cell Type

Materials

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCMFL-500N1,987,450 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

4 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

9.9 mm

± 0.50%

500 N

In-line

Stainless Steel

121 °C

-53 °C

25.4 mm

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCMFL-100N1,976,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

4 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

9.9 mm

± 0.50%

100 N

In-line

Stainless Steel

121 °C

-53 °C

25.4 mm

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCMFL-200N1,987,450 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

4 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

9.9 mm

± 0.50%

200 N

In-line

Stainless Steel

121 °C

-53 °C

25.4 mm

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCMFL-50N2,039,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

4 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

10.1 mm

± 0.50%

50 N

In-line

Stainless Steel

121 °C

-53 °C

19.1 mm

300% FS

71 °C

16 °C

± 0.20%

150% FS

5 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCMFL-20N1,987,450 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

4 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

10.1 mm

± 0.50%

20 N

In-line

Stainless Steel

121 °C

-53 °C

19.1 mm

300% FS

71 °C

16 °C

± 0.20%

150% FS

5 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-1KG2,019,850 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

1 mV/V

IP54

Compression, Tension

0.003 in

0.4 in

± 0.50%

1 kgf

In-line

Stainless Steel

121 °C

-53 °C

0.75 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

5 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCMFL-10N1,976,490 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

4 ft

5 POINT NIST

Cable

1 mV/V

IP54

Compression, Tension

0.003 in

10.1 mm

± 0.50%

10 N

In-line

Stainless Steel

121 °C

-53 °C

19.1 mm

300% FS

71 °C

16 °C

± 0.20%

150% FS

5 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-1002,008,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

0.39 in

± 0.50%

100 lbF

In-line

Stainless Steel

121 °C

-53 °C

1 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-751,994,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

0.39 in

± 0.50%

75 lbF

In-line

Stainless Steel

121 °C

-53 °C

1 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-501,994,380 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

0.39 in

± 0.50%

50 lbF

In-line

Stainless Steel

121 °C

-53 °C

1 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-101,951,280 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

0.4 in

± 0.50%

10 lbF

In-line

Stainless Steel

121 °C

-53 °C

0.75 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

5 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-51,994,380 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

0.4 in

± 0.50%

5 lbF

In-line

Stainless Steel

121 °C

-53 °C

0.75 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

5 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%

LCFL-251,994,380 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in tension)

± 0.5 %

350 Ω

5 ft

5 POINT NIST

Cable

2 mV/V

IP54

Compression, Tension

0.003 in

0.39 in

± 0.50%

25 lbF

In-line

Stainless Steel

121 °C

-53 °C

1 in

300% FS

71 °C

16 °C

± 0.20%

150% FS

10 Vdc

± 0.009% rdg/°C

0.009% FSO/°C

Green: (-) Output; White: (+) Output; Black: (-) Input; Red: (+) Input

± 2%
