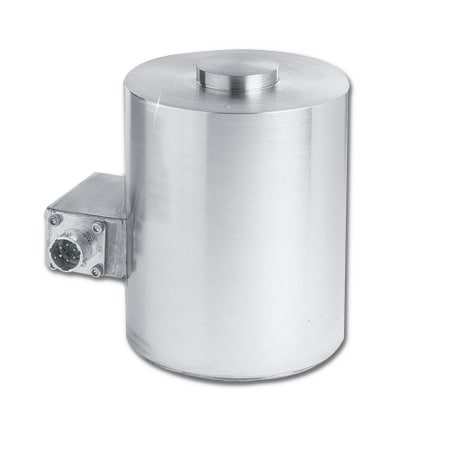

LCM1001-LCM1011 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	5-Point Calibration	Base Plate	Cable Length	Calibration Option	Electrical Connection	Electrical Output	Enclosure Ratings	Force Type	Full Scale Deflection	Height	Hysteresis	Input Resistance	Interchangeability	Linearity	Load Cell Capacity	Materials	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Output Resistance	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Top Plate	Weight	Wiring/Connector Table	Zero/Balance Error	수량 / 장바구니
LCM1001-250가격 문의64 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in Compression)	LCM1000-BP4	15 ft	5 POINT NIST	Cable	2 mV/V	IP67	Compression	0.02 in	116 mm	± 0.05%	350 ± 10 Ω	0.0025	± 0.05%	250 kgf	17-4 PH Stainless Steel	100 °C	-46 °C	89 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.02%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.0018% rdg/°C	± 0.0018% FS/°C	LCM1000-TP4	2.7 kg	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input; Yellow: Shield	± 1%
LCM1001-5K가격 문의64 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	0%, 50%, 100%, 50%, 0% (in Compression)	LCM1000-BP4	15 ft	5 POINT NIST	Cable	2 mV/V	IP67	Compression	0.02 in	151 mm	± 0.05%	350 ± 10 Ω	0.0025	± 0.05%	5000 kgf	17-4 PH Stainless Steel	100 °C	-46 °C	89 mm	350 ± 10 Ω	300% FS	71 °C	16 °C	± 0.02%	150% FS	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.0018% rdg/°C	± 0.0018% FS/°C	LCM1000-TP4	4.5 kg	Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input; Yellow: Shield	± 1%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

5-Point Calibration

Base Plate

Cable Length

Calibration Option

Electrical Connection

Electrical Output

Enclosure Ratings

Force Type

Full Scale Deflection

Height

Hysteresis

Input Resistance

Interchangeability

Linearity

Load Cell Capacity

Materials

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Output Resistance

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Top Plate

Weight

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCM1001-250가격 문의64 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in Compression)

LCM1000-BP4

15 ft

5 POINT NIST

Cable

2 mV/V

IP67

Compression

0.02 in

116 mm

± 0.05%

350 ± 10 Ω

0.0025

± 0.05%

250 kgf

17-4 PH Stainless Steel

100 °C

-46 °C

89 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.02%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.0018% rdg/°C

± 0.0018% FS/°C

LCM1000-TP4

2.7 kg

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input; Yellow: Shield

± 1%

LCM1001-5K가격 문의64 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

0%, 50%, 100%, 50%, 0% (in Compression)

LCM1000-BP4

15 ft

5 POINT NIST

Cable

2 mV/V

IP67

Compression

0.02 in

151 mm

± 0.05%

350 ± 10 Ω

0.0025

± 0.05%

5000 kgf

17-4 PH Stainless Steel

100 °C

-46 °C

89 mm

350 ± 10 Ω

300% FS

71 °C

16 °C

± 0.02%

150% FS

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.0018% rdg/°C

± 0.0018% FS/°C

LCM1000-TP4

4.5 kg

Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input; Yellow: Shield

± 1%
