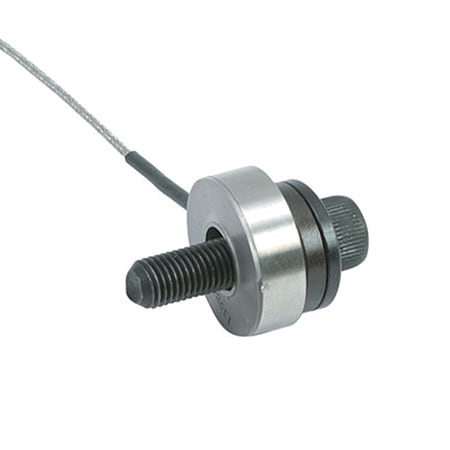

LCWD | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 10개의 상품

제품 번호 / 가격	Brand	Accuracy	Bridge Resistance	Cable Length	Calibration Option	Electrical Connection	Electrical Output	Force Type	Full Scale Deflection	Height	Hysteresis	Linearity	Load Cell Capacity	Load Cell Type	Materials	Operating Temperature, Max	Operating Temperature, Min	Outer Diameter	Overload, Max	Process Temperature, Max	Process Temperature, Min	Repeatability	Safe Overload	Spherical Washers	Spherical Washers ID	Supply Power Note	Supply Voltage	Thermal Span Effect	Thermal Zero Effect	Through Hole Dimension	Wiring/Connector Table	Zero/Balance Error
LCWD-100K2,009,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.75 %	700 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.7 in	± 0.75%	± 0.75%	100000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	2.25 in	200% FS	71 °C	16 °C	± 0.75%	120% FS	SPW-7	0.94 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	1.01 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-200K3,321,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.75 %	700 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	1.25 in	± 0.75%	± 0.75%	200000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	3 in	200% FS	71 °C	16 °C	± 0.75%	120% FS	SPW-10	1.31 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	1.51 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-50K1,821,030 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.75 %	700 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.5 in	± 0.75%	± 0.75%	50000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1.75 in	200% FS	71 °C	16 °C	± 0.75%	120% FS	SPW-5	0.66 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.76 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-5001,292,440 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	350 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.35 in	± 0.5%	± 0.5%	500 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1 in	200% FS	71 °C	16 °C	± 0.5%	120% FS	SPW-2	0.34 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.4 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-2001,292,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	350 Ω	5 ft	4 POINT NIST	Cable	1 mV/V	Compression	0.001 in	0.35 in	± 0.5%	± 0.5%	200 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1 in	200% FS	71 °C	16 °C	± 0.5%	120% FS	SPW-2	0.34 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.4 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-5K1,223,670 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	350 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.35 in	± 0.5%	± 0.5%	5000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1 in	200% FS	71 °C	16 °C	± 0.5%	120% FS	SPW-2	0.34 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.4 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-10K1,474,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	350 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.35 in	± 0.5%	± 0.5%	10000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1 in	200% FS	71 °C	16 °C	± 0.5%	120% FS	SPW-2	0.34 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.4 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-2K1,160,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	350 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.35 in	± 0.5%	± 0.5%	2000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1 in	200% FS	71 °C	16 °C	± 0.5%	120% FS	SPW-2	0.34 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.4 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-1K1,292,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	350 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.35 in	± 0.5%	± 0.5%	1000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1 in	200% FS	71 °C	16 °C	± 0.5%	120% FS	SPW-2	0.34 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.4 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%
LCWD-20K1,687,410 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.75 %	350 Ω	5 ft	4 POINT NIST	Cable	2 mV/V	Compression	0.001 in	0.4 in	± 0.75%	± 0.75%	20000 lbF	Load Washer	Stainless Steel	127 °C	-40 °C	1.2 in	200% FS	71 °C	16 °C	± 0.75%	120% FS	SPW-3	0.41 in	10 Vdc, 15 Vdc maximum	10 Vdc	± 0.018% FSO/°C	± 0.018% FSO/°C	0.5 in	Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output	± 4%

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Bridge Resistance

Cable Length

Calibration Option

Electrical Connection

Electrical Output

Force Type

Full Scale Deflection

Height

Hysteresis

Linearity

Load Cell Capacity

Load Cell Type

Materials

Operating Temperature, Max

Operating Temperature, Min

Outer Diameter

Overload, Max

Process Temperature, Max

Process Temperature, Min

Repeatability

Safe Overload

Spherical Washers

Spherical Washers ID

Supply Power Note

Supply Voltage

Thermal Span Effect

Thermal Zero Effect

Through Hole Dimension

Wiring/Connector Table

Zero/Balance Error

수량 / 장바구니

LCWD-100K2,009,830 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.75 %

700 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.7 in

± 0.75%

100000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

2.25 in

200% FS

71 °C

16 °C

± 0.75%

120% FS

SPW-7

0.94 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

1.01 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-200K3,321,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.75 %

700 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

1.25 in

± 0.75%

200000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

3 in

200% FS

71 °C

16 °C

± 0.75%

120% FS

SPW-10

1.31 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

1.51 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-50K1,821,030 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.75 %

700 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.5 in

± 0.75%

50000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1.75 in

200% FS

71 °C

16 °C

± 0.75%

120% FS

SPW-5

0.66 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.76 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-5001,292,440 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

350 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.35 in

± 0.5%

500 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1 in

200% FS

71 °C

16 °C

± 0.5%

120% FS

SPW-2

0.34 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.4 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-2001,292,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

350 Ω

5 ft

4 POINT NIST

Cable

1 mV/V

Compression

0.001 in

0.35 in

± 0.5%

200 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1 in

200% FS

71 °C

16 °C

± 0.5%

120% FS

SPW-2

0.34 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.4 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-5K1,223,670 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

350 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.35 in

± 0.5%

5000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1 in

200% FS

71 °C

16 °C

± 0.5%

120% FS

SPW-2

0.34 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.4 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-10K1,474,230 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

350 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.35 in

± 0.5%

10000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1 in

200% FS

71 °C

16 °C

± 0.5%

120% FS

SPW-2

0.34 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.4 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-2K1,160,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

350 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.35 in

± 0.5%

2000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1 in

200% FS

71 °C

16 °C

± 0.5%

120% FS

SPW-2

0.34 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.4 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-1K1,292,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

350 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.35 in

± 0.5%

1000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1 in

200% FS

71 °C

16 °C

± 0.5%

120% FS

SPW-2

0.34 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.4 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%

LCWD-20K1,687,410 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.75 %

350 Ω

5 ft

4 POINT NIST

Cable

2 mV/V

Compression

0.001 in

0.4 in

± 0.75%

20000 lbF

Load Washer

Stainless Steel

127 °C

-40 °C

1.2 in

200% FS

71 °C

16 °C

± 0.75%

120% FS

SPW-3

0.41 in

10 Vdc, 15 Vdc maximum

10 Vdc

± 0.018% FSO/°C

0.5 in

Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output

± 4%
