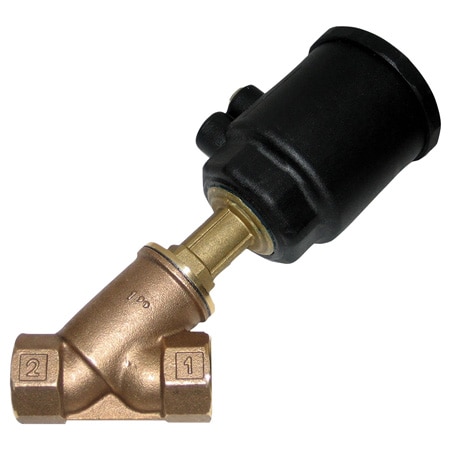

AAV-1000-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 6개의 상품

제품 번호 / 가격	Brand	Actuator Diameter	Additional Features 1	Cv Factor	Flow Direction	Materials, Wetted	Media Compatibility	Operating Temperature, Max	Operating Temperature, Min	Orifice Size	Pilot Pressure, Max	Pilot Pressure, Min	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Valve Position	Weight
AAV-10501,350,600 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2.5 in	Uni-Directional	56.9	1 —>2 Over Seat	Bronze, PTFE	Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water	60 °C	-10 °C	2 in	150 psi	25 psi	2 in	NPT Female	180 °C	-10 °C	Normally Closed	2.9 kg
AAV-10401,173,340 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2.5 in	Uni-Directional	44.8	1 —>2 Over Seat	Bronze, PTFE	Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water	60 °C	-10 °C	1.5 in	150 psi	25 psi	1 1/2 in	NPT Female	180 °C	-10 °C	Normally Closed	2.1 kg
AAV-1032854,380 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2.5 in	Uni-Directional	29	1 —>2 Over Seat	Bronze, PTFE	Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water	60 °C	-10 °C	1.25 in	150 psi	25 psi	1 1/4 in	NPT Female	180 °C	-10 °C	Normally Closed	1.9 kg
AAV-1025740,510 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2.5 in	Uni-Directional	19.3	1 —>2 Over Seat	Bronze, PTFE	Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water	60 °C	-10 °C	1 in	150 psi	25 psi	1 in	NPT Female	180 °C	-10 °C	Normally Closed	1.5 kg
AAV-1020640,330 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2.5 in	Uni-Directional	8.6	1 —>2 Over Seat	Bronze, PTFE	Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water	60 °C	-10 °C	3/4 in	150 psi	25 psi	3/4 in	NPT Female	180 °C	-10 °C	Normally Closed	1.3 kg
AAV-1015603,790 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	2.5 in	Uni-Directional	4.6	1 —>2 Over Seat	Bronze, PTFE	Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water	60 °C	-10 °C	1/2 in	150 psi	25 psi	1/2 in	NPT Female	180 °C	-10 °C	Normally Closed	1.2 kg

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Actuator Diameter

Additional Features 1

Cv Factor

Flow Direction

Materials, Wetted

Media Compatibility

Operating Temperature, Max

Operating Temperature, Min

Orifice Size

Pilot Pressure, Max

Pilot Pressure, Min

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Valve Position

Weight

수량 / 장바구니

AAV-10501,350,600 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2.5 in

Uni-Directional

56.9

1 —>2 Over Seat

Bronze, PTFE

Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

60 °C

-10 °C

2 in

150 psi

25 psi

2 in

NPT Female

180 °C

-10 °C

Normally Closed

2.9 kg

AAV-10401,173,340 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2.5 in

Uni-Directional

44.8

1 —>2 Over Seat

Bronze, PTFE

Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

60 °C

-10 °C

1.5 in

150 psi

25 psi

1 1/2 in

NPT Female

180 °C

-10 °C

Normally Closed

2.1 kg

AAV-1032854,380 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2.5 in

Uni-Directional

1 —>2 Over Seat

Bronze, PTFE

Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

60 °C

-10 °C

1.25 in

150 psi

25 psi

1 1/4 in

NPT Female

180 °C

-10 °C

Normally Closed

1.9 kg

AAV-1025740,510 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2.5 in

Uni-Directional

19.3

1 —>2 Over Seat

Bronze, PTFE

Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

60 °C

-10 °C

1 in

150 psi

25 psi

1 in

NPT Female

180 °C

-10 °C

Normally Closed

1.5 kg

AAV-1020640,330 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2.5 in

Uni-Directional

8.6

1 —>2 Over Seat

Bronze, PTFE

Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

60 °C

-10 °C

3/4 in

150 psi

25 psi

3/4 in

NPT Female

180 °C

-10 °C

Normally Closed

1.3 kg

AAV-1015603,790 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

2.5 in

Uni-Directional

4.6

1 —>2 Over Seat

Bronze, PTFE

Air, Alcohol, Gases, Liquids, Nitrogen, Oil, Oxygen, Water

60 °C

-10 °C

1/2 in

150 psi

25 psi

1/2 in

NPT Female

180 °C

-10 °C

Normally Closed

1.2 kg
