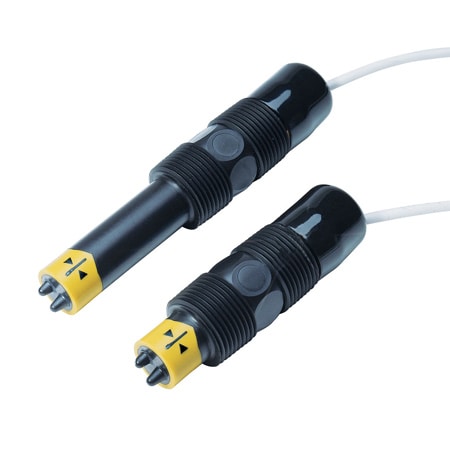

액체용 열 분산 유량 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Adjustments | Approvals | Approvals Note | Cable Length | Cable Length Note | Diameter | Electrical Connection | Enclosure Material | Enclosure Ratings | Length | Linear Flow Rate, Max | Linear Flow Rate, Min | Materials | Media Compatibility | Operating Pressure Note | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Pipe Size, Max | Pipe Size, Min | Power Consumption | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Response Time | Response Time Note | Supply Power Note | Supply Voltage | Switch Rating | Switch Type | Thermal Effects | Viscosity Range | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FST-211-SPST-25 FT562,400 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | ±5% of setpoint at constant temperature and flowrate | Potentiometer | CE | CE compliance: EN 61326 EMC EN 61010‐1 safety | 25 ft | Max: 100 ft | 1.05 in | 3/4 in NPT male Conduit with Cable | Polypropylene, PVDF | IP65, NEMA Type 4X | 3 in | 3 ft/s | 0.04 ft/s | Polypropylene, PVDF | Liquids | Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F) | 150 psi | 60 °C | -40 °C | 1.5 in | 0.75 in | 70 mA | 3/4 in | NPT Male | 60 °C | 0 °C | 10 sec | 10 sec after initial 30 sec warm up | 12 to 36 Vdc @ 70 mA | 12 to 36 Vdc | 1 A | SPST NO/NC, Selectable | 0.5%/°C | 1 to 300 cPs | 22 AWG | |
FST-222-SPST832,790 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | ±5% of setpoint at constant temperature and flowrate | Potentiometer | CE | CE compliance: EN 61326 EMC EN 61010‐1 safety | 10 ft | Max: 100 ft | 1.05 in | 3/4 in NPT male Conduit with Cable | PVDF | IP65, NEMA Type 4X | 4.5 in | 3 ft/s | 0.04 ft/s | PVDF | Liquids | Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F) | 150 psi | 60 °C | -40 °C | 12 in | 2 in | 70 mA | 3/4 in | NPT Male | 60 °C | 0 °C | 10 sec | 10 sec after initial 30 sec warm up | 12 to 36 Vdc @ 70 mA | 12 to 36 Vdc | 1 A | SPST NO/NC, Selectable | 0.5%/°C | 1 to 300 cPs | 22 AWG | |
FST-221-SPST488,420 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | ±5% of setpoint at constant temperature and flowrate | Potentiometer | CE | CE compliance: EN 61326 EMC EN 61010‐1 safety | 10 ft | Max: 100 ft | 1.05 in | 3/4 in NPT male Conduit with Cable | Polypropylene, PVDF | IP65, NEMA Type 4X | 4.5 in | 3 ft/s | 0.04 ft/s | Polypropylene, PVDF | Liquids | Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F) | 150 psi | 60 °C | -40 °C | 12 in | 2 in | 70 mA | 3/4 in | NPT Male | 60 °C | 0 °C | 10 sec | 10 sec after initial 30 sec warm up | 12 to 36 Vdc @ 70 mA | 12 to 36 Vdc | 1 A | SPST NO/NC, Selectable | 0.5%/°C | 1 to 300 cPs | 22 AWG | |
FST-212-SPST809,620 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | ±5% of setpoint at constant temperature and flowrate | Potentiometer | CE | CE compliance: EN 61326 EMC EN 61010‐1 safety | 10 ft | Max: 100 ft | 1.05 in | 3/4 in NPT male Conduit with Cable | PVDF | IP65, NEMA Type 4X | 3 in | 3 ft/s | 0.04 ft/s | PVDF | Liquids | Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F) | 150 psi | 60 °C | -40 °C | 1.5 in | 0.75 in | 70 mA | 3/4 in | NPT Male | 60 °C | 0 °C | 10 sec | 10 sec after initial 30 sec warm up | 12 to 36 Vdc @ 70 mA | 12 to 36 Vdc | 1 A | SPST NO/NC, Selectable | 0.5%/°C | 1 to 300 cPs | 22 AWG | |
FST-211-SPST466,540 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | ±5% of setpoint at constant temperature and flowrate | Potentiometer | CE | CE compliance: EN 61326 EMC EN 61010‐1 safety | 10 ft | Max: 100 ft | 1.05 in | 3/4 in NPT male Conduit with Cable | Polypropylene, PVDF | IP65, NEMA Type 4X | 3 in | 3 ft/s | 0.04 ft/s | Polypropylene, PVDF | Liquids | Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F) | 150 psi | 60 °C | -40 °C | 1.5 in | 0.75 in | 70 mA | 3/4 in | NPT Male | 60 °C | 0 °C | 10 sec | 10 sec after initial 30 sec warm up | 12 to 36 Vdc @ 70 mA | 12 to 36 Vdc | 1 A | SPST NO/NC, Selectable | 0.5%/°C | 1 to 300 cPs | 22 AWG |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
