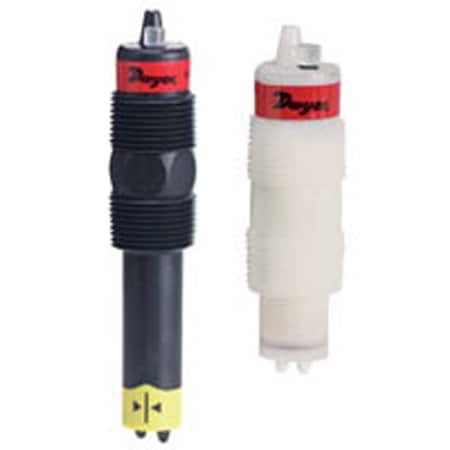

비코팅 액체용 TDS 열 유량 스위치, 조절 가능한 SPDT 출력
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Compliance | Drift | Electrical Connection | Measurement Pressure Type | Media Compatibility | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Pipe Size, Max | Pipe Size, Min | Power Consumption | Pressure Limits | Pressure Limits Note | Process Connection Size | Process Connection Type | Repeatability | Repeatability Note | Response Time | Sensor Material | Supply Power Type | Supply Voltage | Switch Indication | Switch Length | Switch Rating | Switch Type | Velocity, Max | Velocity, Min | Viscosity Range | Weight | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TDS212가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.5% of setpoint | Cable | Gauge | Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids | None | 140 °F | 32 °F | 1.5 in | 0.75 in | 50 mA | Up to 150 psi | 150 psi (10 bar) @25°C, derated @ 1.667 psi (.113 bar)per °C above 25°C | 3/4 in | NPT Male | ± 5% | ± 5% of setpoint | 1 to 10 s | Polyvinylidene Fluoride | DC | 12 to 36 Vdc | LED for Flow Status | 3 in | 60 Vac/60 Vdc @ 1 A | SPDT NO/NC, Selectable | 3 ft/s | 0.04 ft/s | 1 to 200 cPs | 94 g | 22 AWG | |
TDS222가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.5% of setpoint | Cable | Gauge | Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids | None | 140 °F | 32 °F | 16 in | 2 in | 50 mA | Up to 150 psi | 150 psi (10 bar) @25°C, derated @ 1.667 psi (.113 bar)per °C above 25°C | 3/4 in | NPT Male | ± 5% | ± 5% of setpoint | 1 to 10 s | Polyvinylidene Fluoride | DC | 12 to 36 Vdc | LED for Flow Status | 4.5 in | 60 Vac/60 Vdc @ 1 A | SPDT NO/NC, Selectable | 3 ft/s | 0.04 ft/s | 1 to 200 cPs | 94 g | 22 AWG | |
TDS122가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.5% of setpoint | Cable | Gauge | Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids | None | 140 °F | 32 °F | 16 in | 2 in | 50 mA | Up to 150 psi | 150 psi (10 bar) @25°C, derated @ 1.667 psi (.113 bar)per °C above 25°C | 3/4 in | NPT Male | ± 5% | ± 5% of setpoint | 1 to 10 s | Polypropylene, Polyphenylene Sulfide | DC | 12 to 36 Vdc | LED for Flow Status | 4.5 in | 60 Vac/60 Vdc @ 1 A | SPDT NO/NC, Selectable | 3 ft/s | 0.04 ft/s | 1 to 200 cPs | 94 g | 22 AWG | |
TDS112가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | CE | 0.5% of setpoint | Cable | Gauge | Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids | None | 140 °F | 32 °F | 1.5 in | 0.75 in | 50 mA | Up to 150 psi | 150 psi (10 bar) @25°C, derated @ 1.667 psi (.113 bar)per °C above 25°C | 3/4 in | NPT Male | ± 5% | ± 5% of setpoint | 1 to 10 s | Polypropylene, Polyphenylene Sulfide | DC | 12 to 36 Vdc | LED for Flow Status | 3 in | 60 Vac/60 Vdc @ 1 A | SPDT NO/NC, Selectable | 3 ft/s | 0.04 ft/s | 1 to 200 cPs | 94 g | 22 AWG |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
